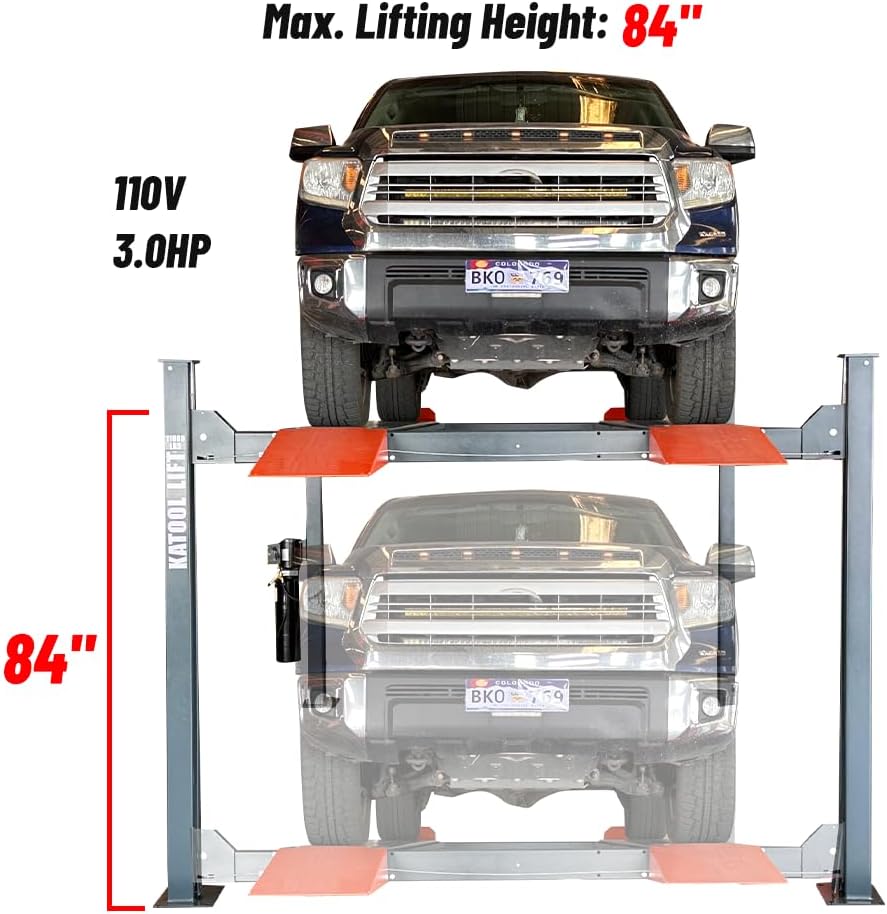

3.0HP 11000Lbs 4 Post Lift 4 Post Parking Service Storage Lift Lifting Height 84 Inch Extra Tall Extra Long Extra Wide 110v Four Post Parking Lift 4-Post Auto Lift Garage Lift Storage

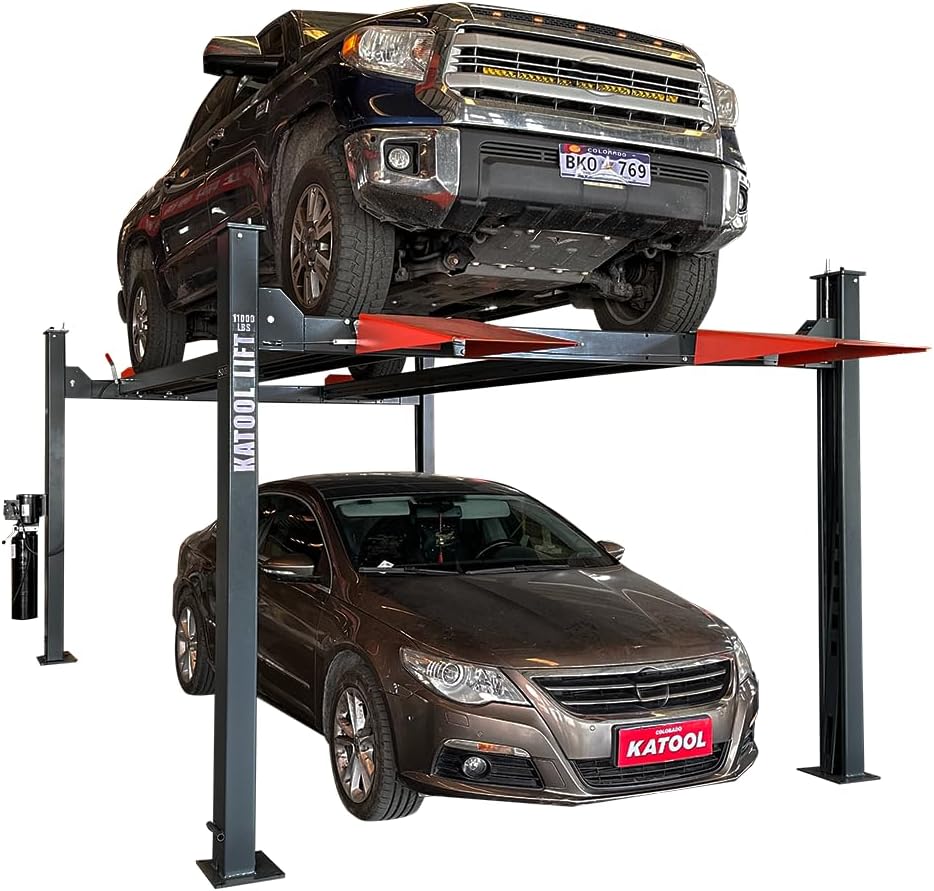

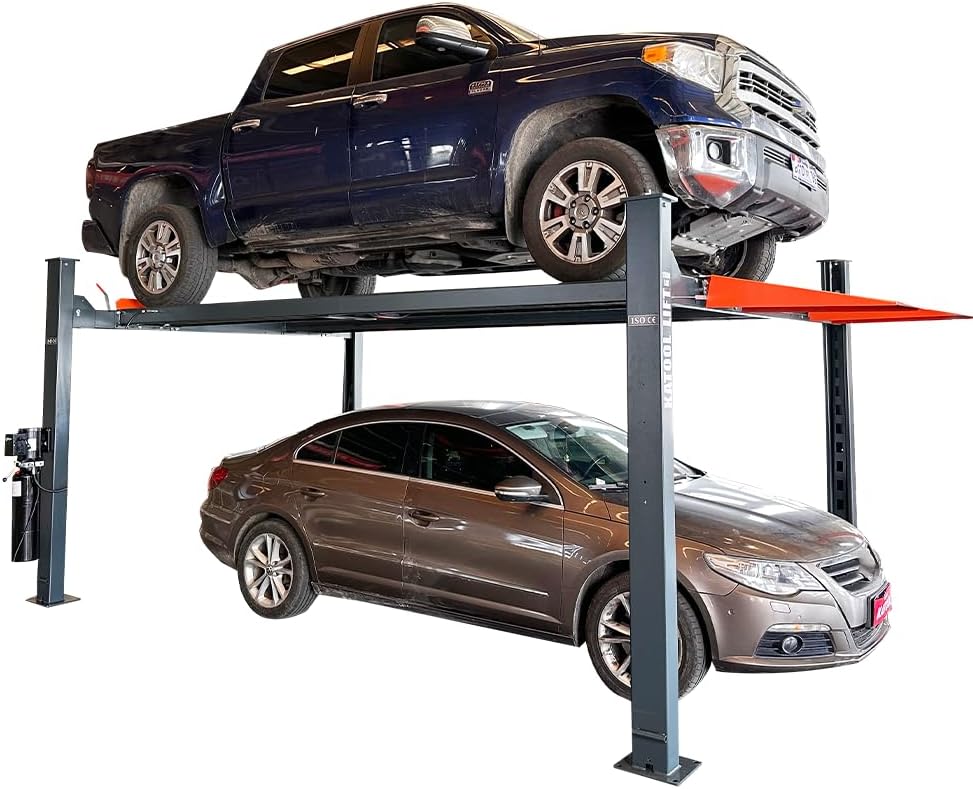

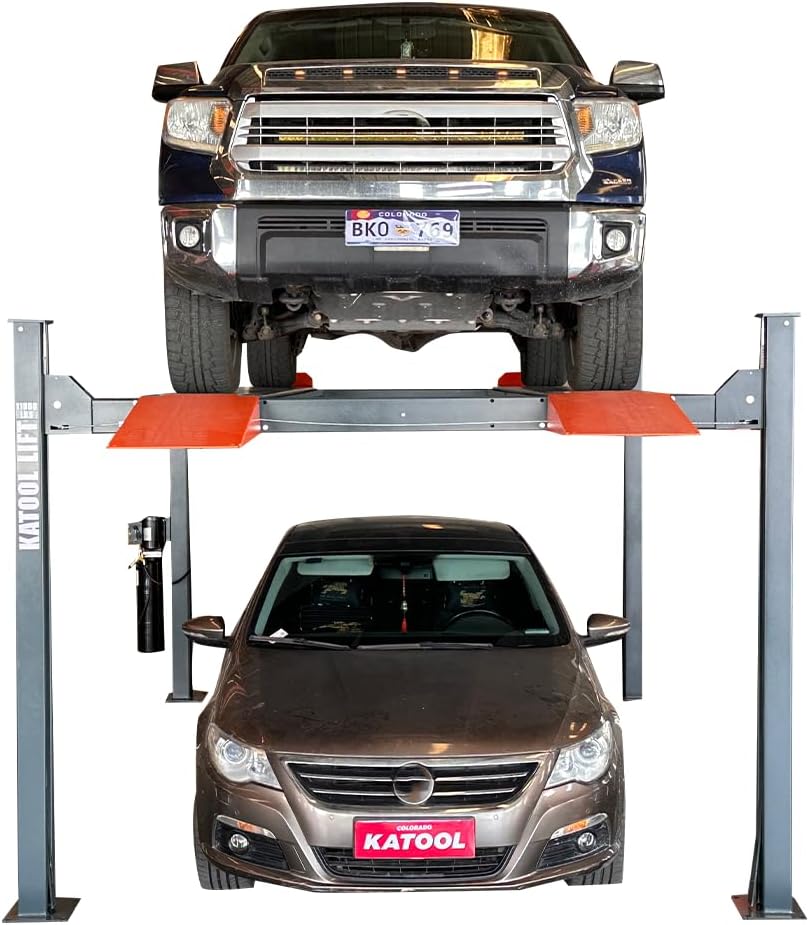

The Katool KT-4H110 Four-Post Vehicle Lift is the ultimate heavy-duty solution for your garage or workshop, boasting an impressive 11,000 lbs lifting capacity. CE approved and certified, it meets rigorous standards with 115% dynamic loading capacity and 150% static loading capacity testing. This lift combines safety, reliability, and convenience for all your vehicle lifting needs.

With its single-point manual safety lock release and four mechanical locking devices featuring primary and secondary safety locks, the KT-4H110 prioritizes secure lifting. The non-skid diamond platforms and adjustable safety lock ladders ensure stability and adaptability for various vehicle types. Additionally, the lift’s power-side column offers flexible installation options for better workspace optimization.

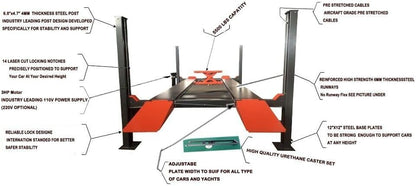

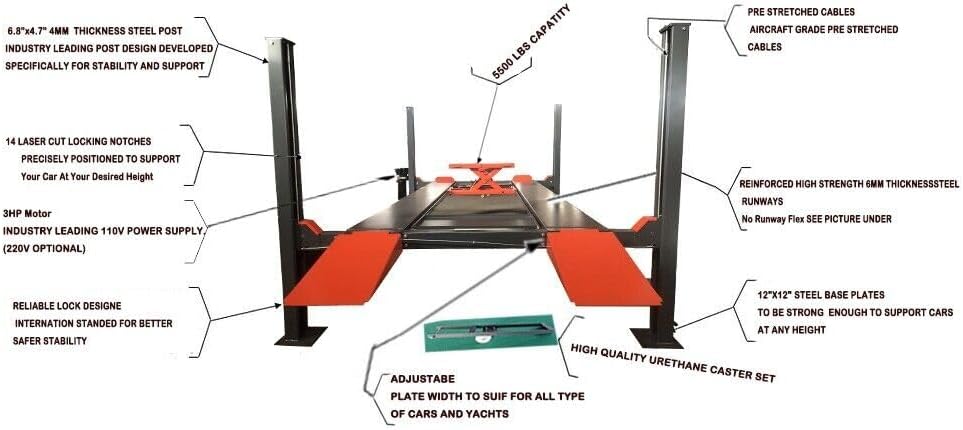

• 11,000 lbs Lifting Capacity: Handles heavy-duty vehicles with ease.
• CE Approved and Certified: Meets 115% dynamic and 150% static load capacity standards.

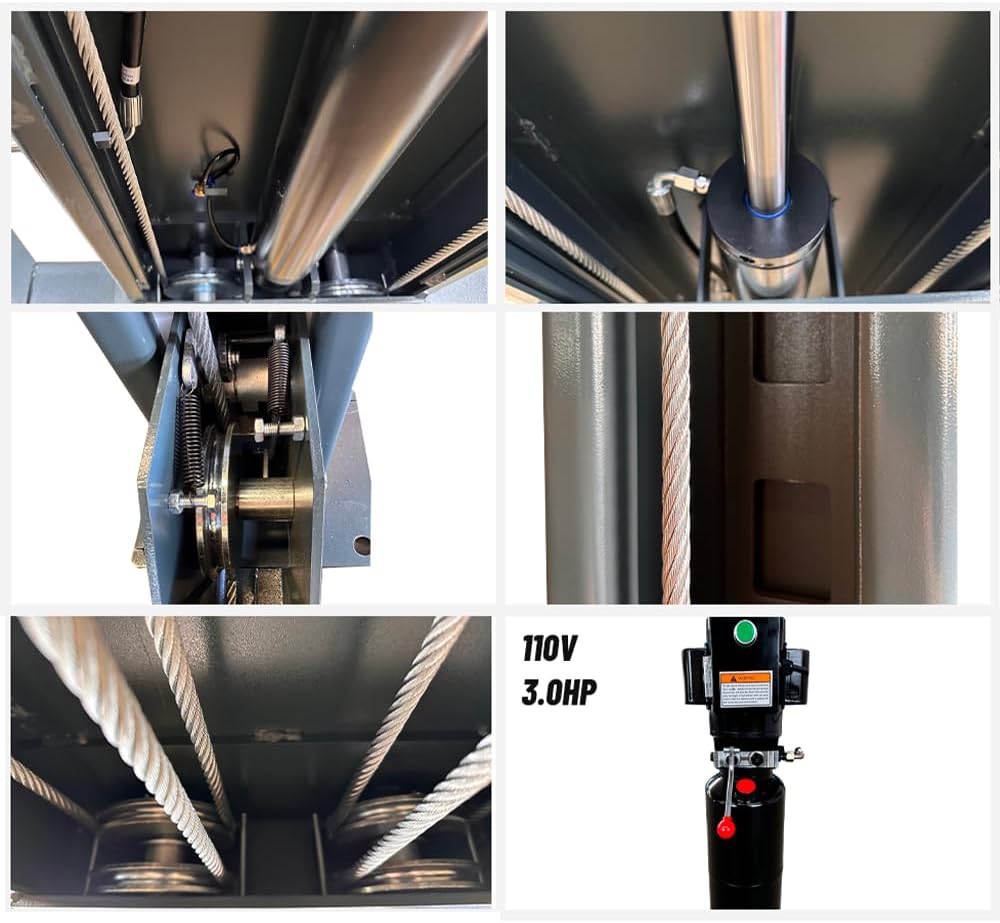

• Single-Point Manual Safety Lock Release: Ensures secure and controlled operations.

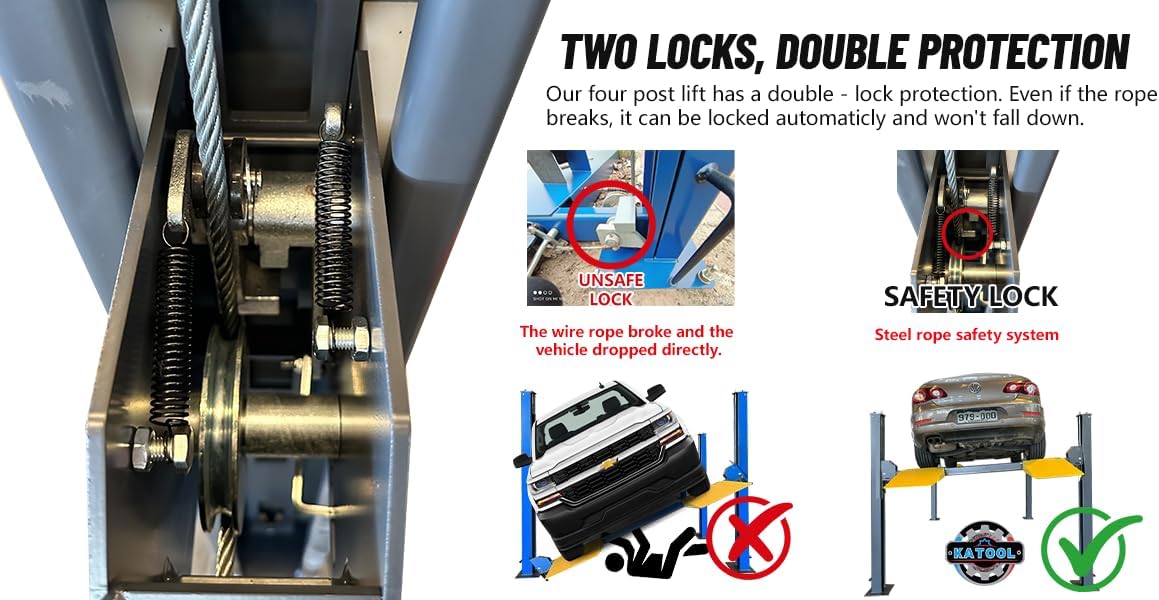

• Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for added security.
• Powerside Column: Flexible installation at either side, front, or rear.
• Non-skid coated platforms and adjustable safety lock ladders.
• Optional Add-Ons: Caster kit for mobility and rolling jacks for additional functionality (sold separately).
• Hydraulic System: Available in 110V/60HZ/1PH or optional 220V/60HZ/1PH for reliable and efficient performance.
• Comes with two drip trays and a jack tray for added convenience.

For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H110 User Manual. Click the link below to download:

Download User Manual (PDF)

Installing the KT-4H110 is straightforward, but proper concrete requirements are critical for safety. Ensure the concrete thickness is at least 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these specifications could lead to serious injury or equipment failure.

The Katool KT-4H110 is backed by a 1-year limited warranty on all parts and product defects. Structural components for vehicle lifts include an additional 3-year warranty. Optional 2-year extended warranty plans are available for purchase.

Warranty Conditions:

• Claims must be within the warranty period and are non-transferable.
