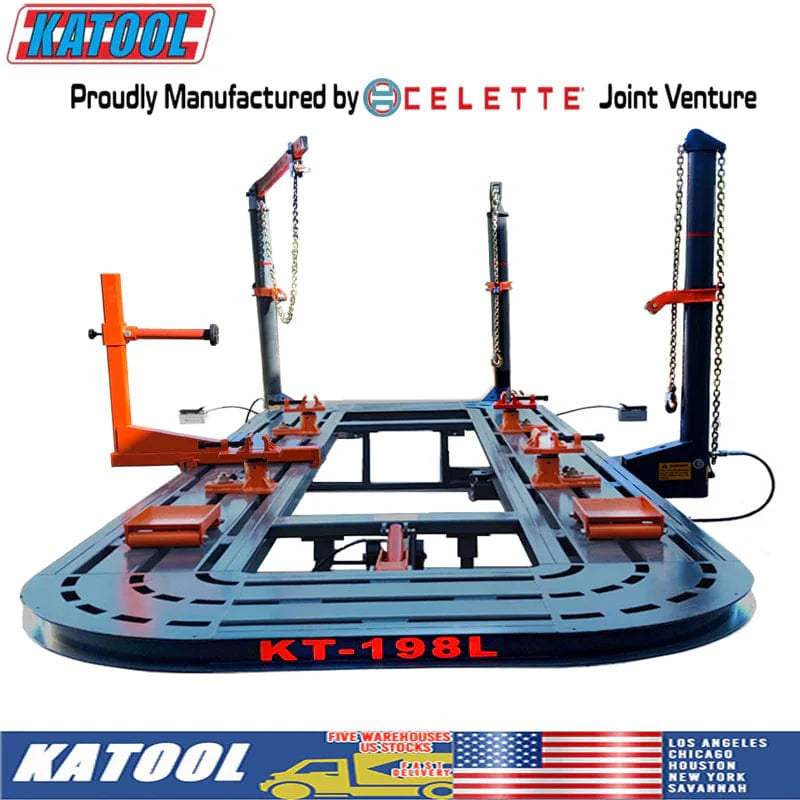

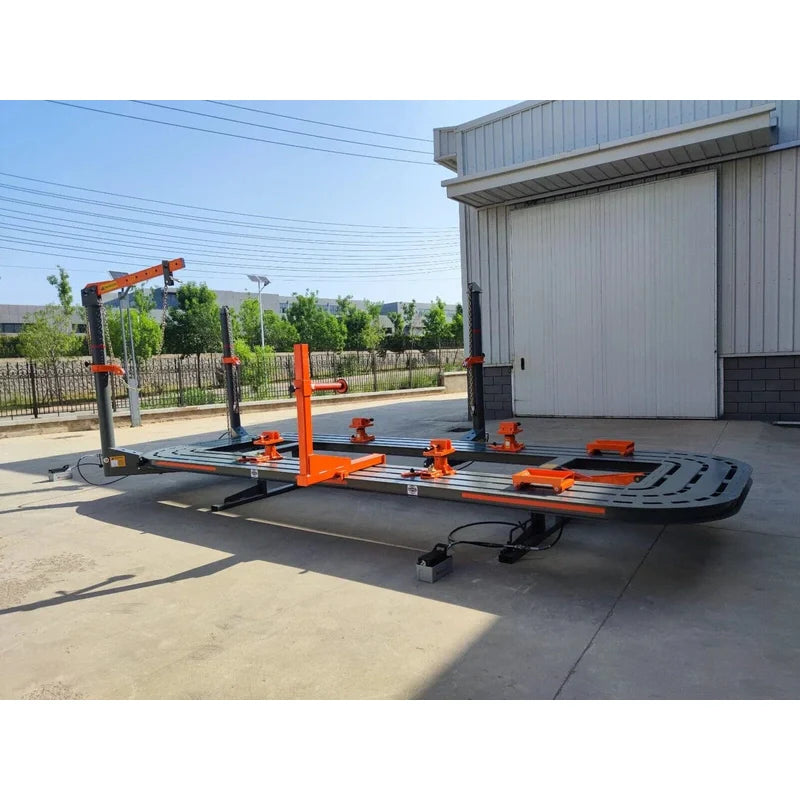

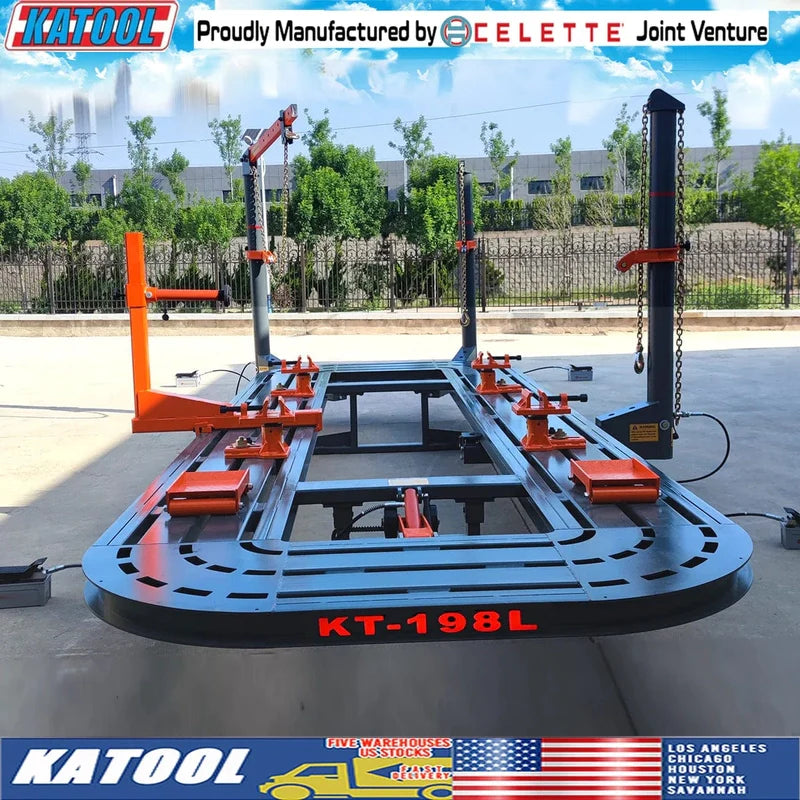

The Katool KT-198L Auto Body Frame Machine is your solution for efficient and precise collision repair. This machine features quick-fix clamp jaws that enhance chassis clamping efficiency by screwing the shaft clockwise. The tilt hydraulic lifting platform, assembled with light and flexible support legs, provides versatility in positioning. With a unique tower wheels movement device, this machine offers exceptional maneuverability.
The leading arm is designed to supply multi-directional tensile force during collision repair. Light and flexible ramps make driving on and off the platform a breeze. Complimentary accessories and tools, as per configuration, are included for body collision repair needs. Additionally, the machine incorporates automatic robot welding for enhanced precision and durability.
Features

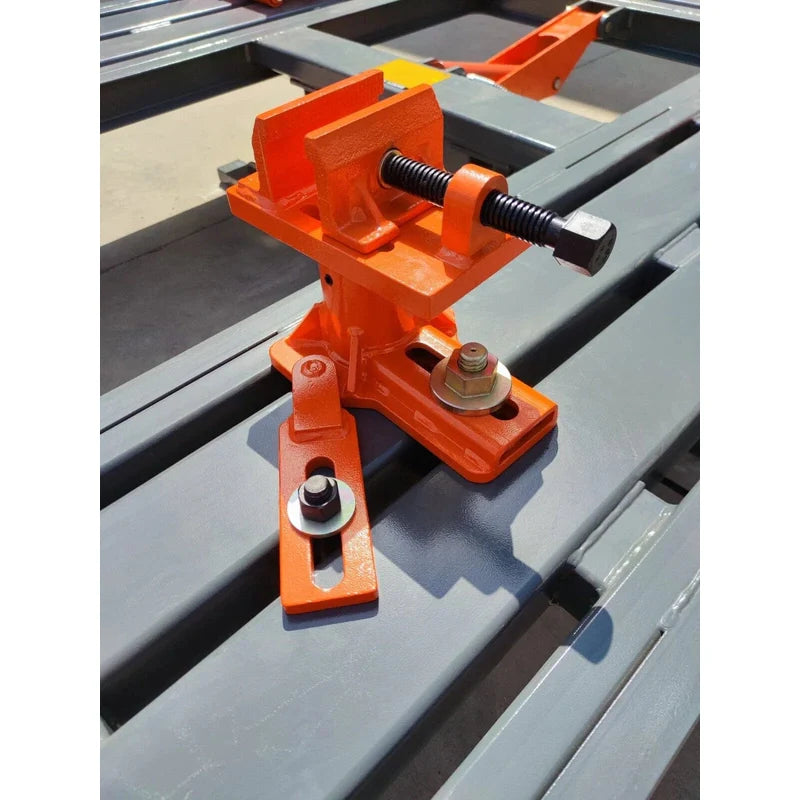

Quick-fix clamp jaws by screwing the shaft clockwise, making chassis clamping more efficient
Tilt hydraulic lifting platform assembled with light and flexible support legs

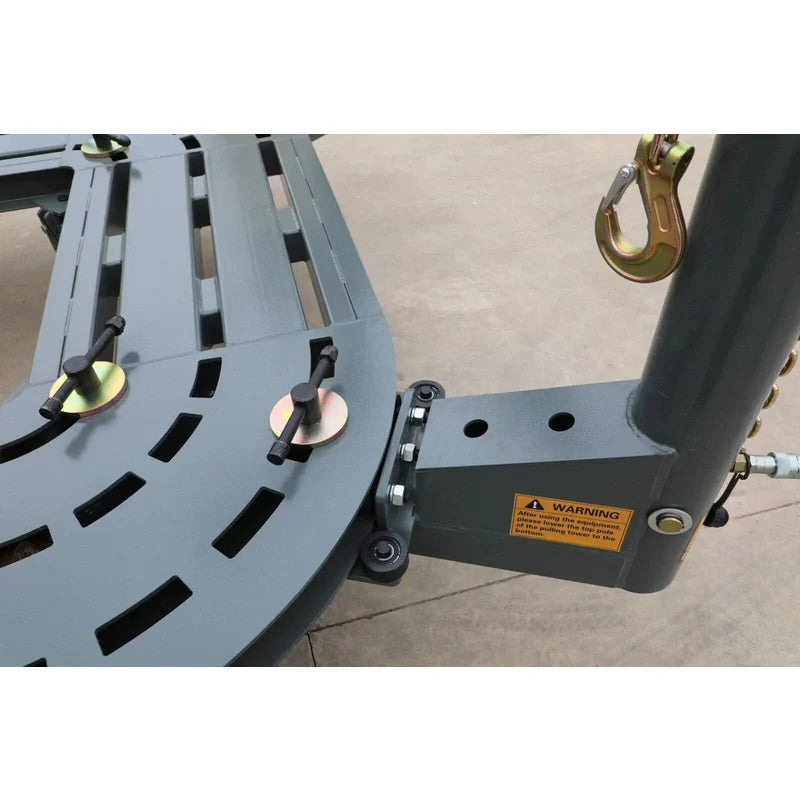

Unique tower wheels movement device

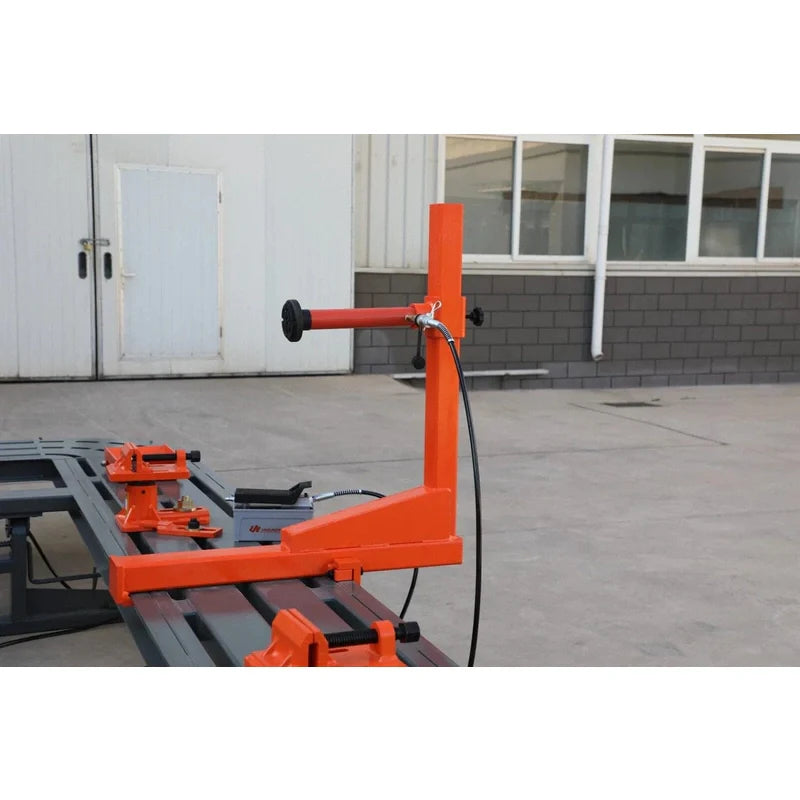

The leading arm can supply multi-direction tensile force during the collision repair
Light and flexible ramps for driving on and off

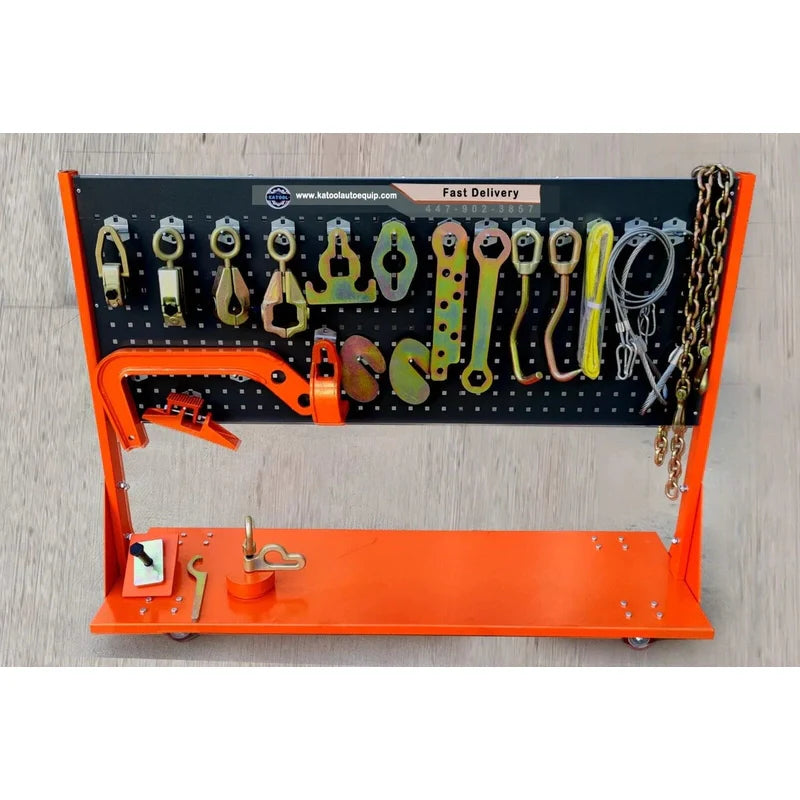

Complimentary accessories and tools for body collision repair. (as per configuration)
Automatic robot welding
Specifications
Length
236.4 Inch
Width
84.3 Inch
Height
4.3 to 67 Inch
Pulling Capacity
100 KN
Air Supply Required
0.8 MPA
Radius of Pulling
360 Degrees
Max Load
7700 lbs (CE Certified)
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes: - Cylinders, power units, motors, displays, electronics, etc. - Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions: - Claims must fall within the warranty period. - Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor. - Replacement parts will be provided at no cost, including free shipping.
Note: - All warranty claims are subject to approval by the warranty/service department. - Photos and/or videos of defects may be requested. - Do not disassemble any equipment before the issue is determined. - Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs. - Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
