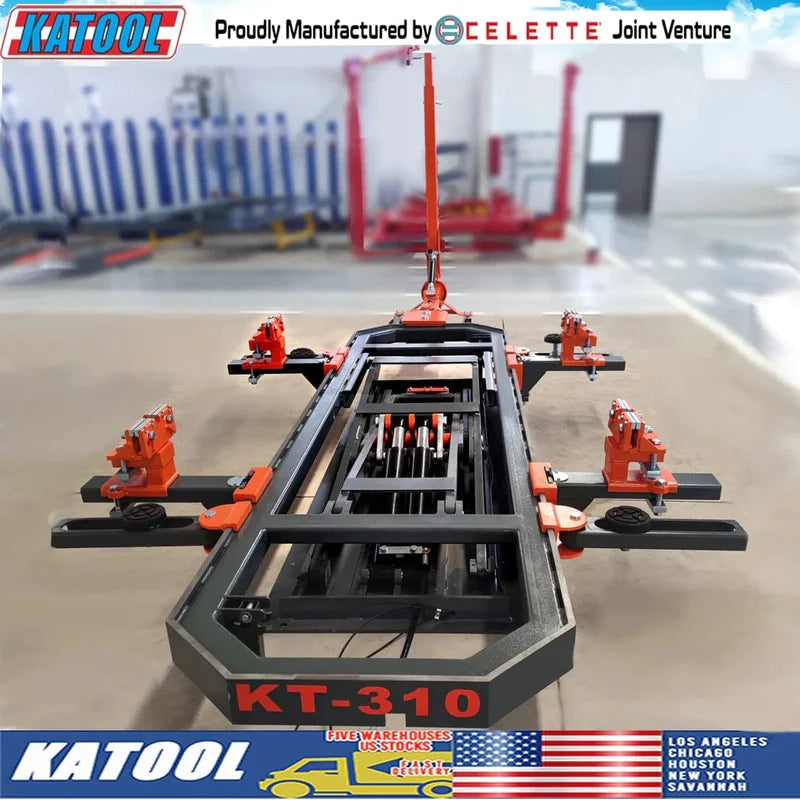

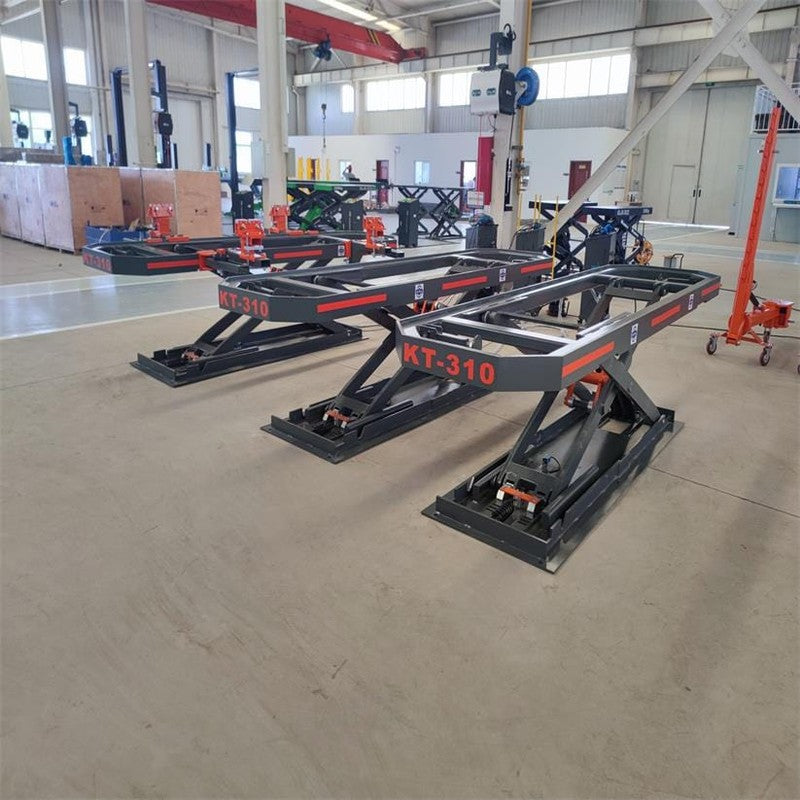

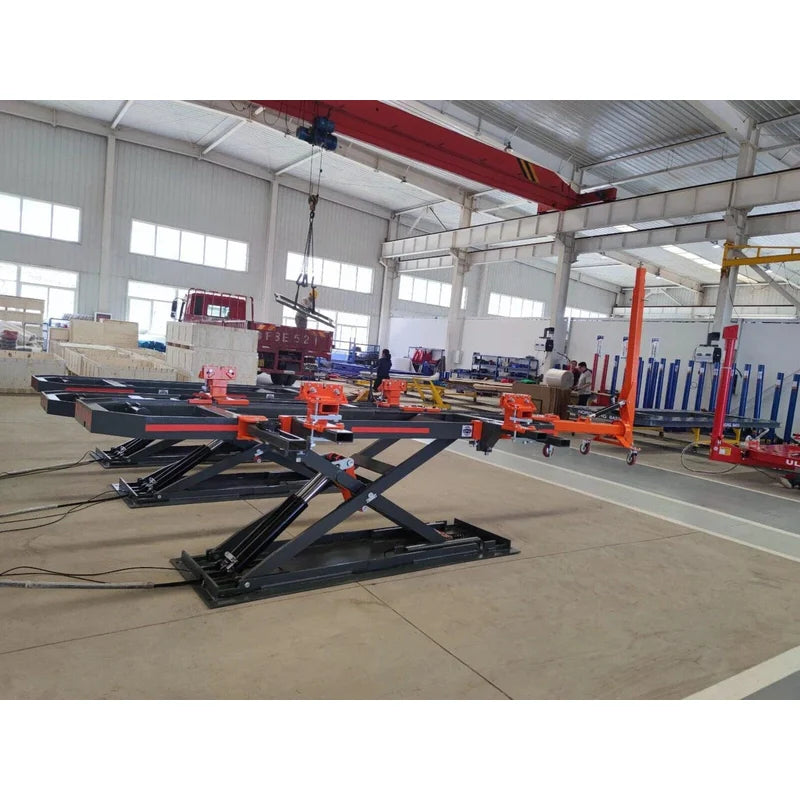

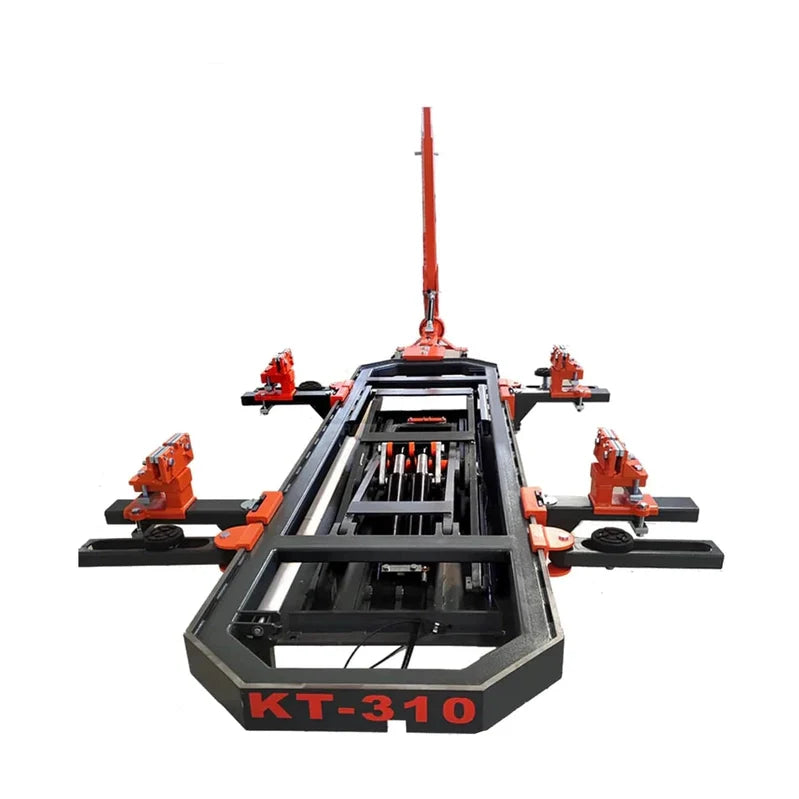

The Katool KT-310 - the small bench welded made of cold high alloy rectangular tubes is designed professionally for body collision quick repair. It's built with upgraded materials, improved welding technique, and enhanced stress intensity to make the repairing work more precise and faster. In accordance with European advanced technology, the frame machine is simple, practical, safe and precise for fast repairs.
Features
CE certified
110mm drive on height

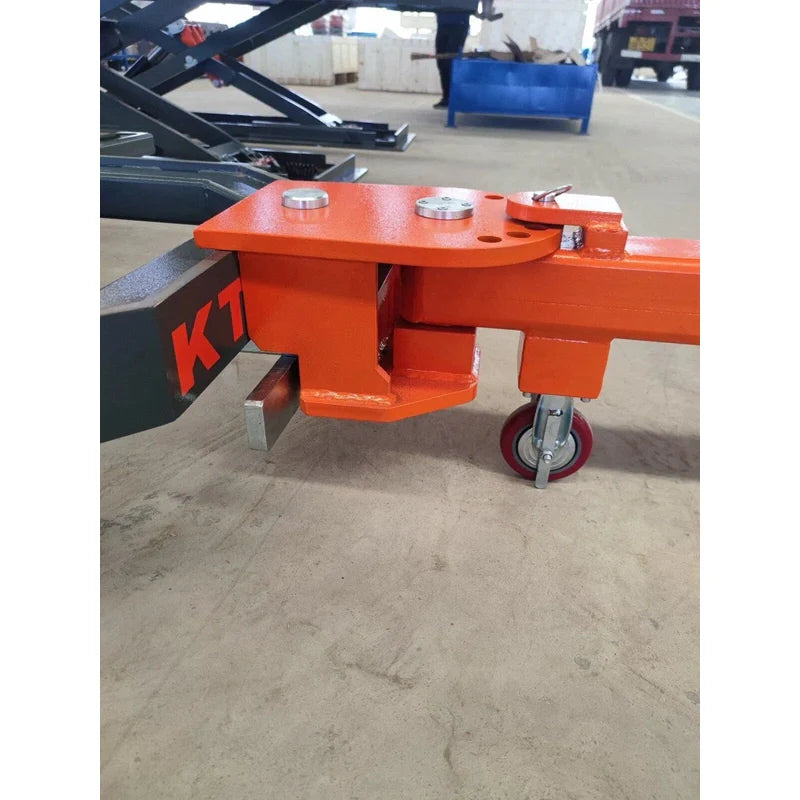

Flexible moving tower, quick fixing, and wide working area, durable pulling power with 60KN
9-grade locking system to reach different heights
Special design for jaws: quick fixed clamp jaws with only two screws

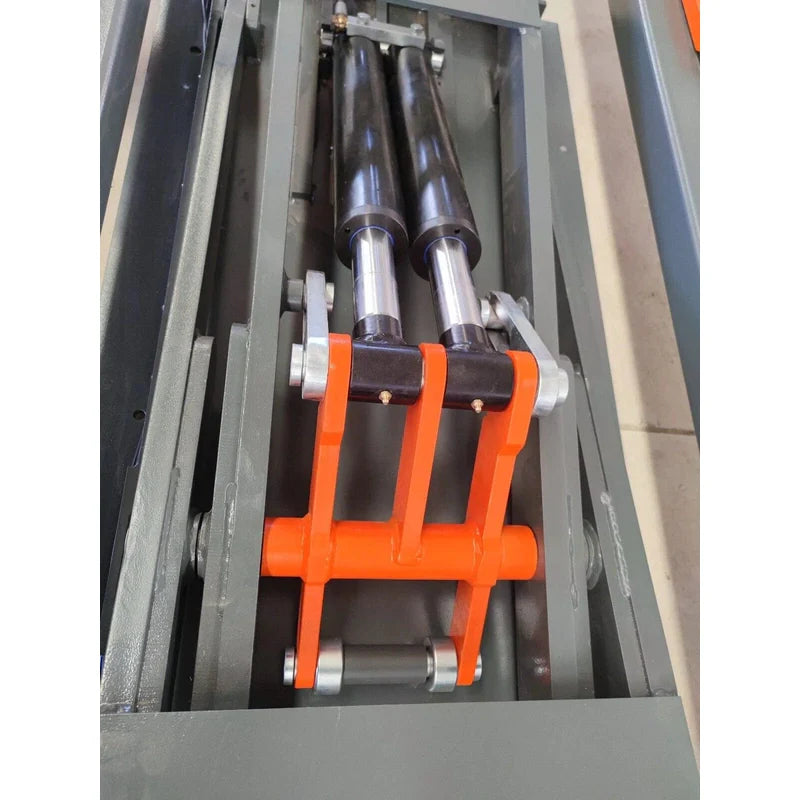

Four adjustable lifting arms can rotate 180 degrees when the bench is used as a scissor lift, which is designed to lift nearly all kinds of vehicles
Equipped with bench supporter to find the exact height to install the pulling towers

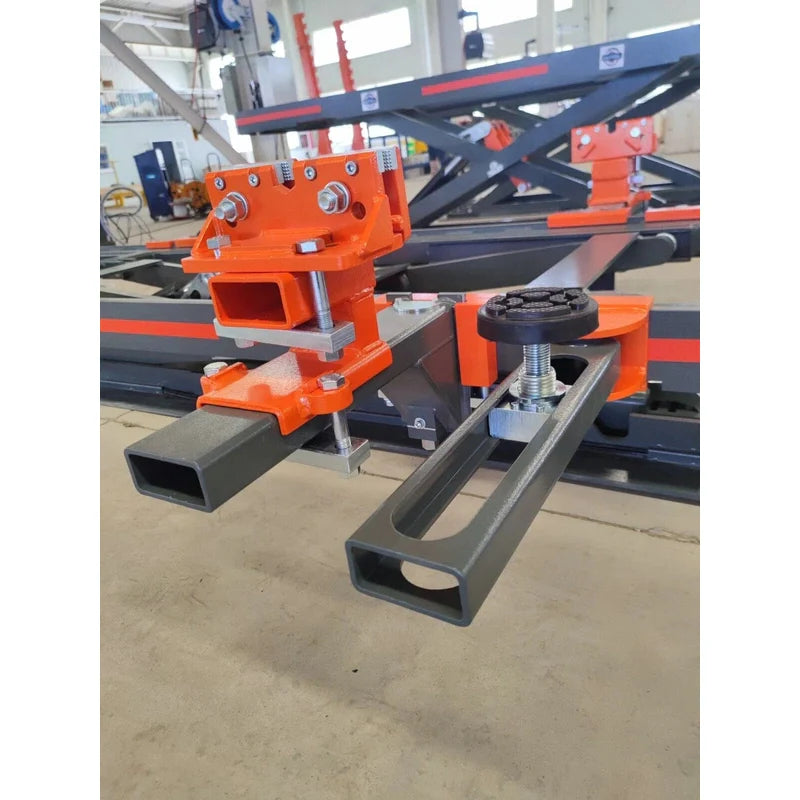

Adjustable heavy-duty main clamps are easy to install and remove
Fast repair for small and medium vehicles. The model helps save valuable space in shops and is low-cost
Specifications
Frame Length
130.8 Inch
Frame Width
34.5 Inch
Frame Height
4.3 to 67 Inch
Max Push Power for Pulling Tower
60KN
Rated Voltage
220V
Working Range of Pulling Tower
360 Degrees
Max Load Bearing
7000 lbs (CE Certified)
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes: - Cylinders, power units, motors, displays, electronics, etc. - Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions: - Claims must fall within the warranty period. - Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor. - Replacement parts will be provided at no cost, including free shipping.
Note: - All warranty claims are subject to approval by the warranty/service department. - Photos and/or videos of defects may be requested. - Do not disassemble any equipment before the issue is determined. - Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs. - Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
