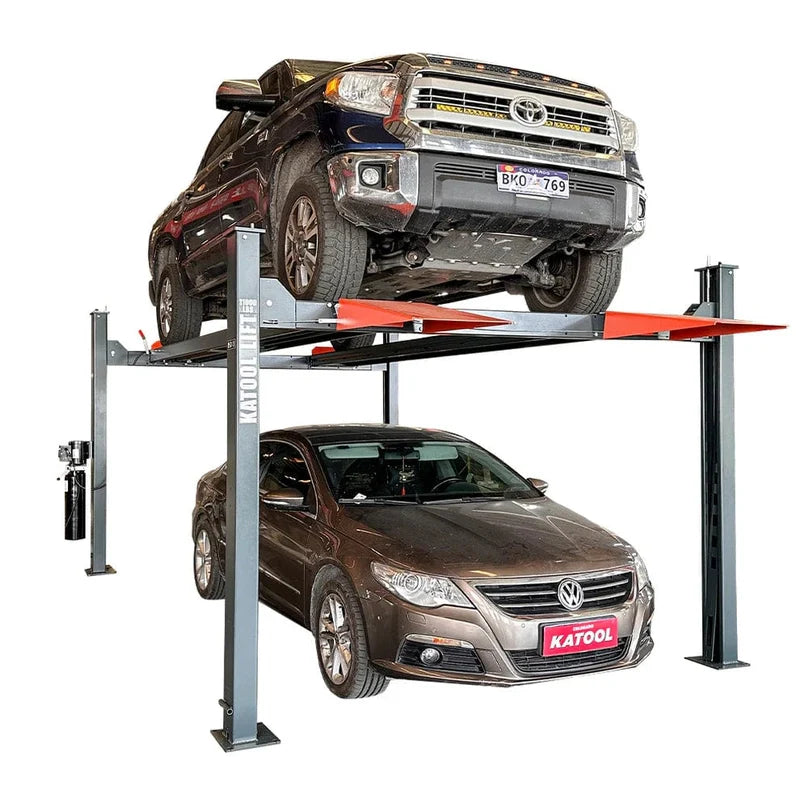

The Katool KT-4H110 Four-Post Vehicle Lift is the ultimate heavy-duty solution for your garage or workshop, boasting an impressive 11,000 lbs lifting capacity. CE approved and certified, it meets rigorous standards with 115% dynamic loading capacity and 150% static loading capacity testing. This lift combines safety, reliability, and convenience for all your vehicle lifting needs.
With its single-point manual safety lock release and four mechanical locking devices featuring primary and secondary safety locks, the KT-4H110 prioritizes secure lifting. The non-skid diamond platforms and adjustable safety lock ladders ensure stability and adaptability for various vehicle types. Additionally, the lift’s power-side column offers flexible installation options for better workspace optimization.

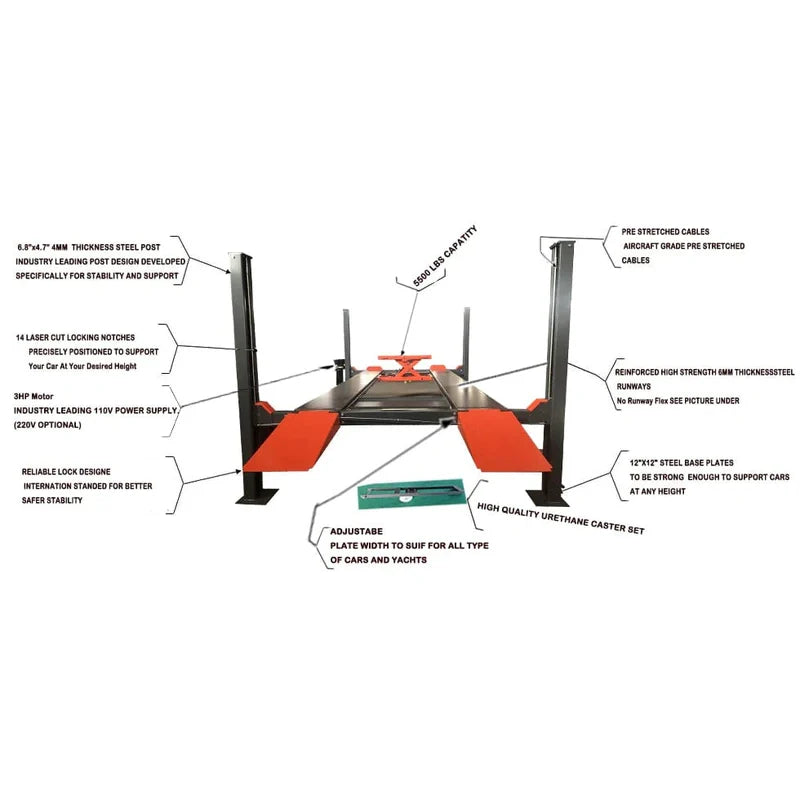

Key Features
11,000 lbs Lifting Capacity: Handles heavy-duty vehicles with ease.
CE Approved and Certified: Meets 115% dynamic and 150% static load capacity standards.

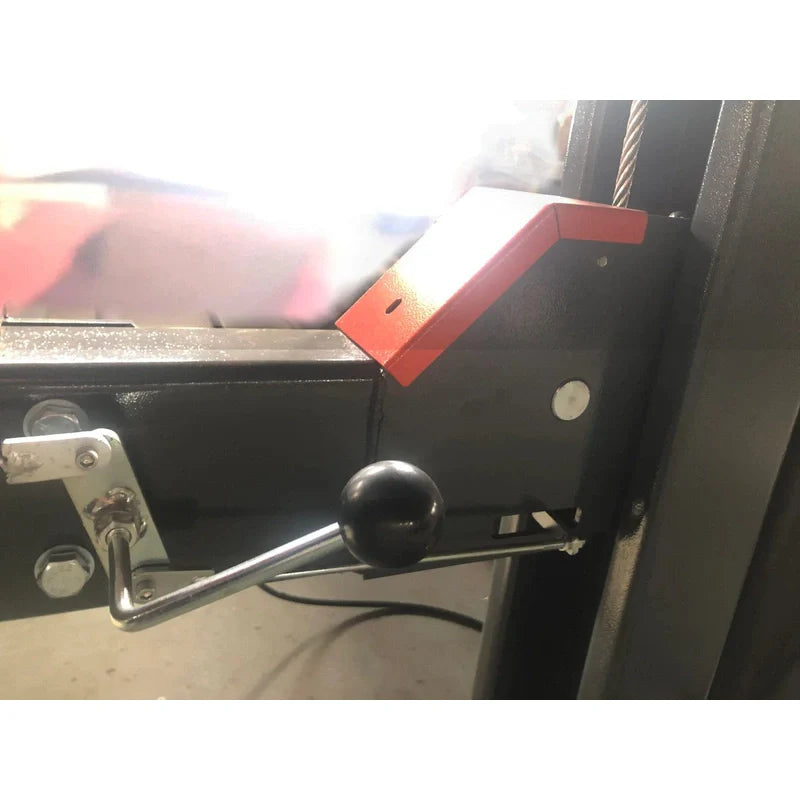

Single-Point Manual Safety Lock Release: Ensures secure and controlled operations.

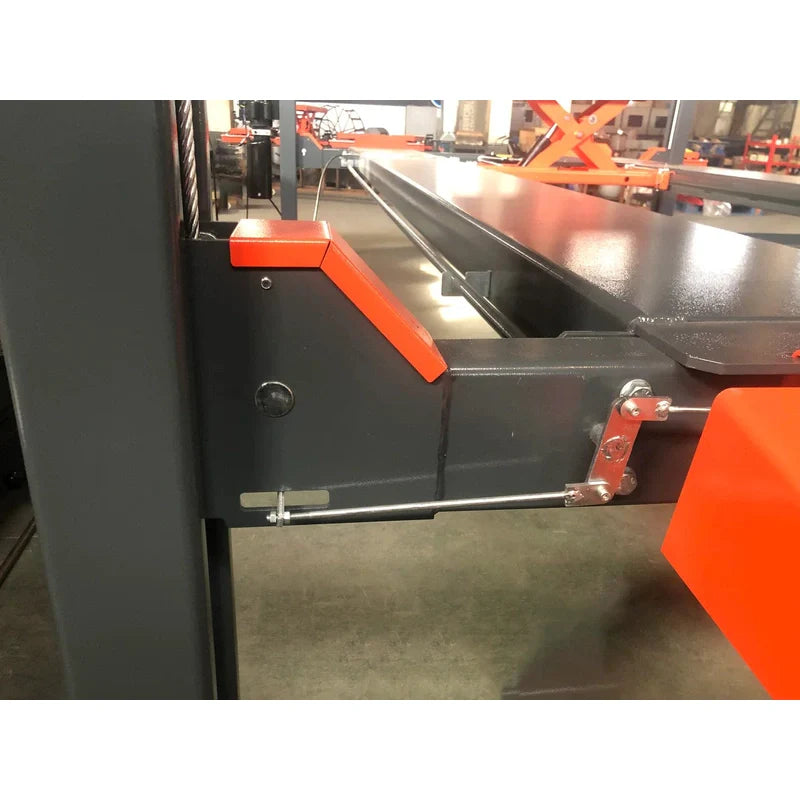

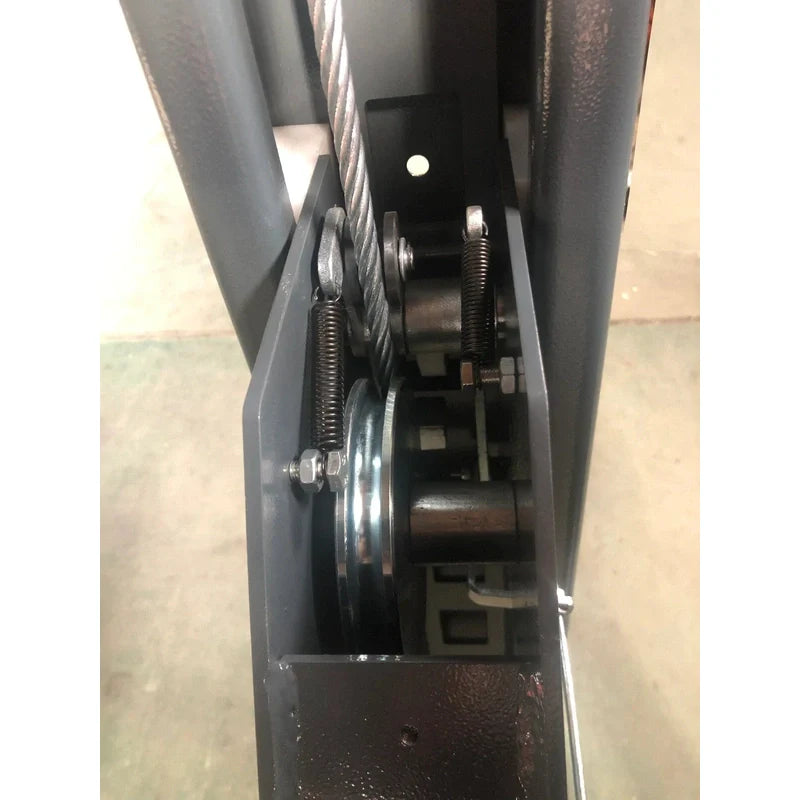

Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for added security.

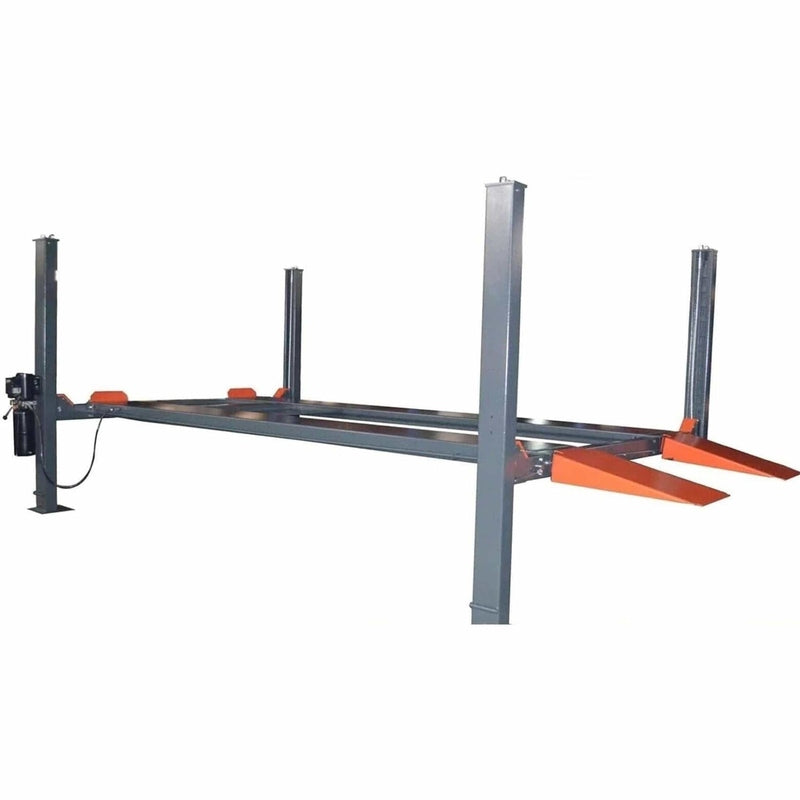

Powerside Column: Flexible installation at either side, front, or rear.
Non-skid coated platforms and adjustable safety lock ladders.

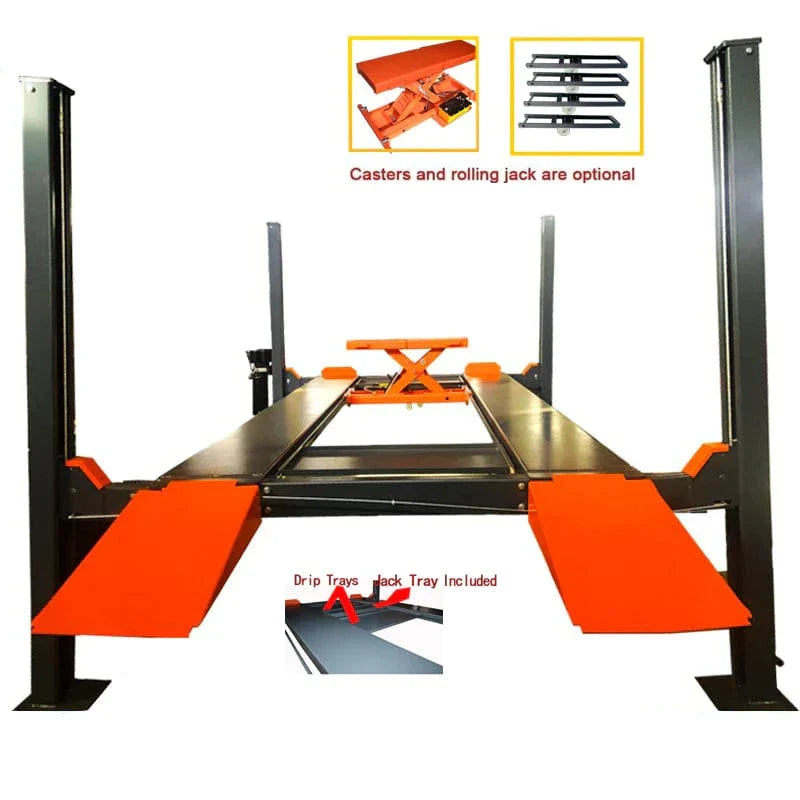

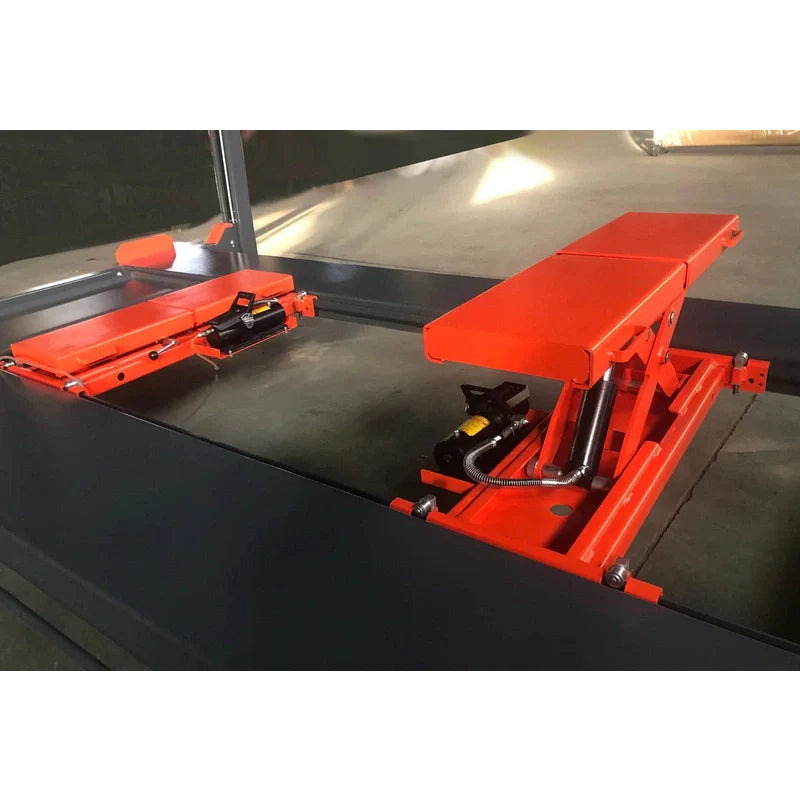

Optional Add-Ons: Caster kit for mobility and rolling jacks for additional functionality (sold separately).
Hydraulic System: Available in 110V/60HZ/1PH or optional 220V/60HZ/1PH for reliable and efficient performance.
Comes with two drip trays and a jack tray for added convenience.

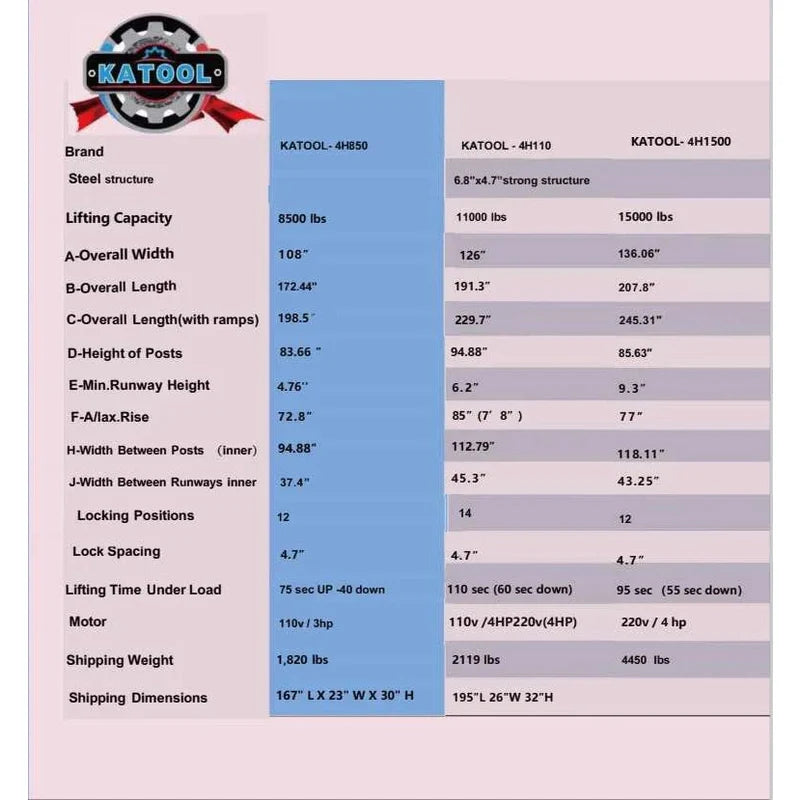

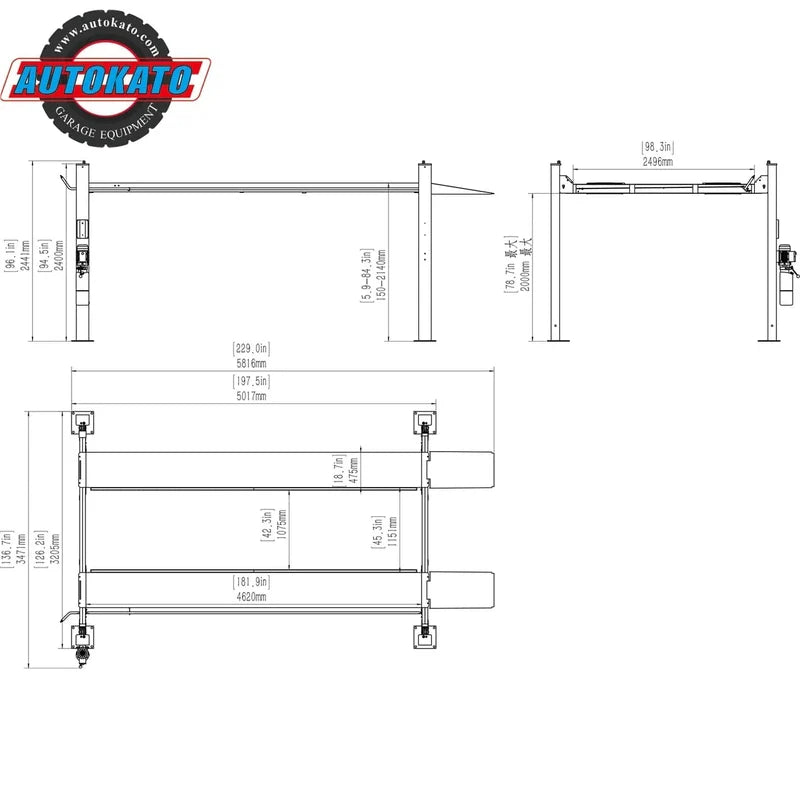

Specifications
Lifting Capacity
11,000 lbs (4,990 kg)
Max. Lifting Height
84.25" (2,140 mm)
Lifting Time
83s Up / 40s Down
Height of Posts
94.88" (2,410 mm)
Width Overall
126" (3,200 mm)
Length Overall
229.73" (5,835 mm, with ramps)
Inside Columns
112.81" (2,865 mm)
Min. Runway Height
6.2" (157 mm)
Motor
110VAC/60HZ/1PH
Net Weight
2,116 lbs (960 kg)
User Manual
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H110 User Manual. Click the link below to download:
Installing the KT-4H110 is straightforward, but proper concrete requirements are critical for safety. Ensure the concrete thickness is at least 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these specifications could lead to serious injury or equipment failure.
Warranty
The Katool KT-4H110 is backed by a 1-year limited warranty on all parts and product defects. Structural components for vehicle lifts include an additional 3-year warranty. Optional 2-year extended warranty plans are available for purchase.
Warranty Conditions:
Claims must be within the warranty period and are non-transferable.
