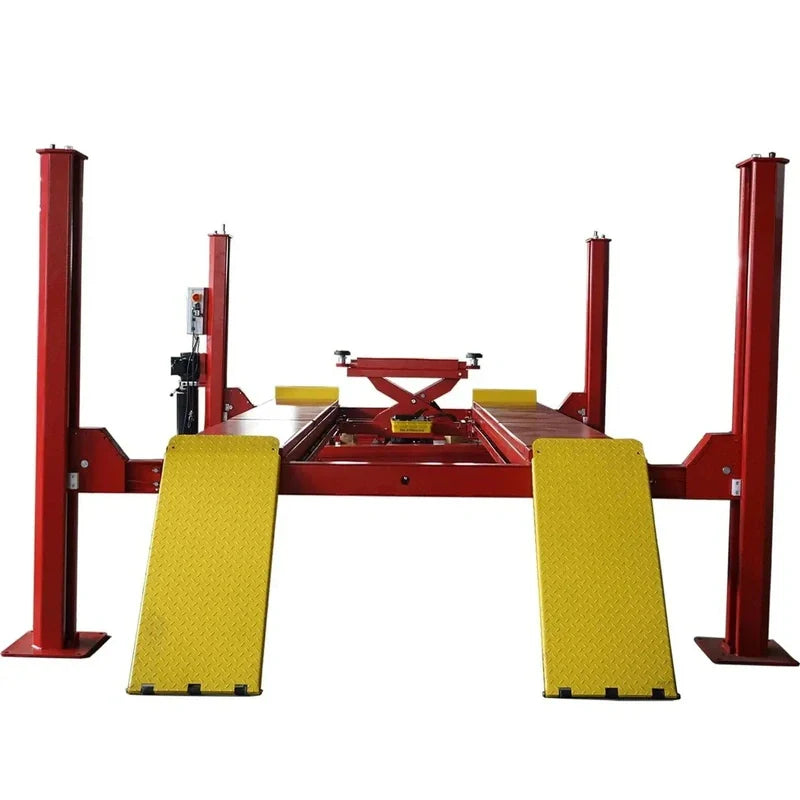

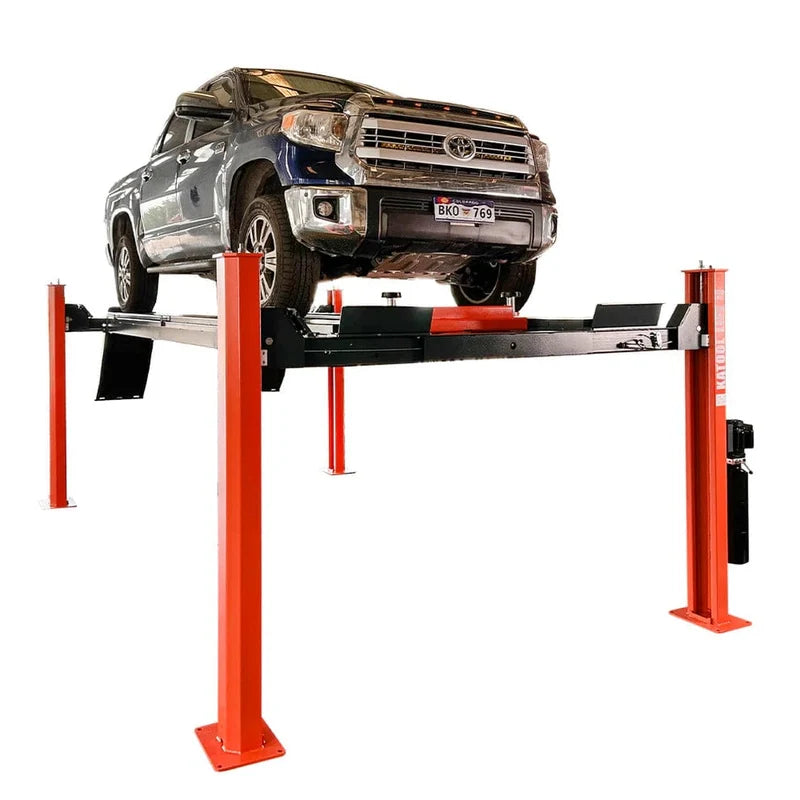

The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift offers exceptional performance and reliability with a robust 15,000 lbs lifting capacity. CE approved and certified, it meets rigorous standards, including 115% dynamic loading capacity and 150% static loading capacity testing. This lift is designed for safety, efficiency, and versatility, making it the ideal choice for heavy-duty vehicle alignment and lifting operations.
Equipped with a single-point manual safety lock release and four mechanical locking devices featuring primary and secondary safety locks, the KT-4H150 ensures secure and controlled operation. Its non-skid diamond platforms, adjustable safety lock ladders, and optional (contact us to add it to your order) turn tables for wheel alignment further enhance its functionality. Powered by a high-quality hydraulic system with a 3KW motor, this lift is available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations. Additionally, it includes one 6,000 lbs rolling jack for added convenience.
Key Features
15,000 lbs Lifting Capacity: Ideal for heavy-duty vehicles.
CE Approved and Certified: Meets 115% dynamic and 150% static load capacity standards.

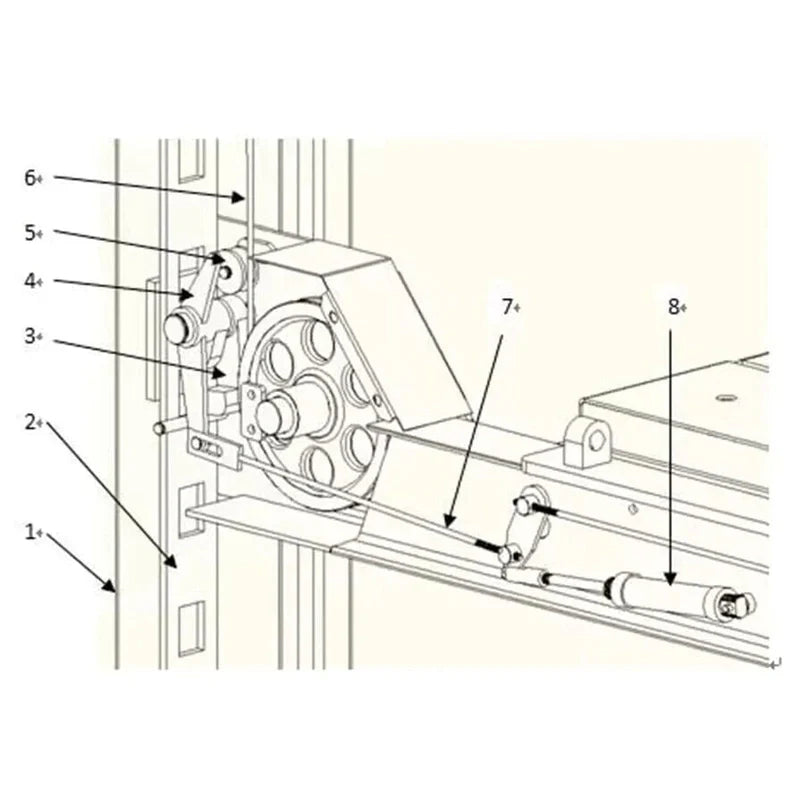

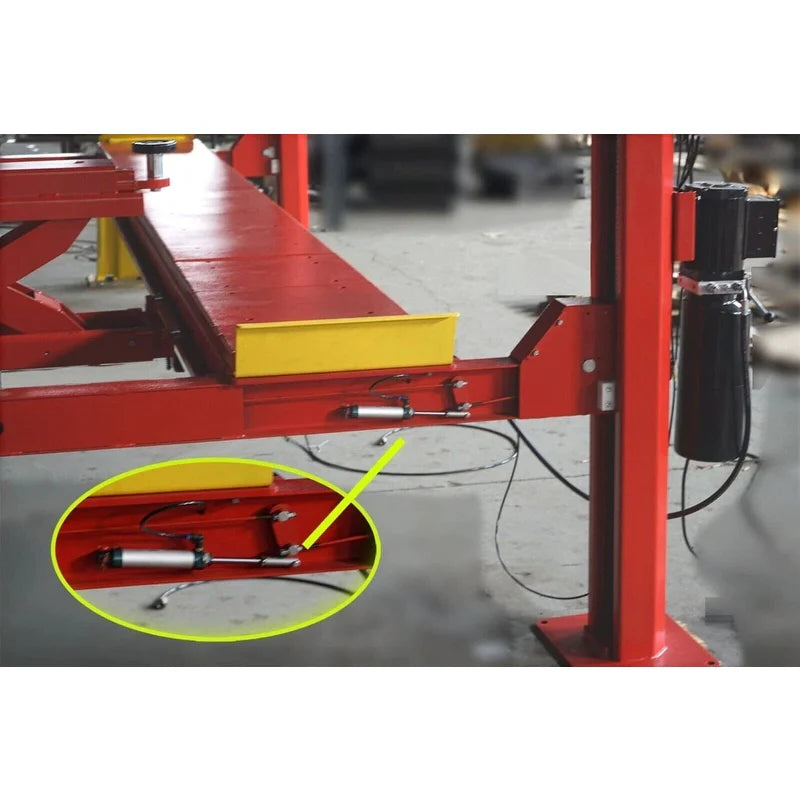

Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for enhanced security.

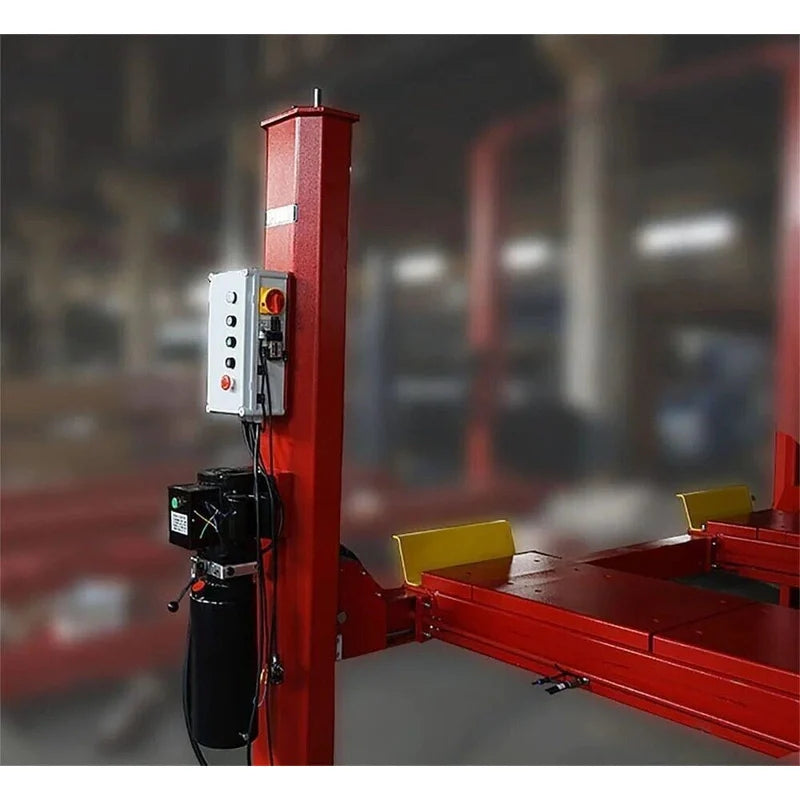

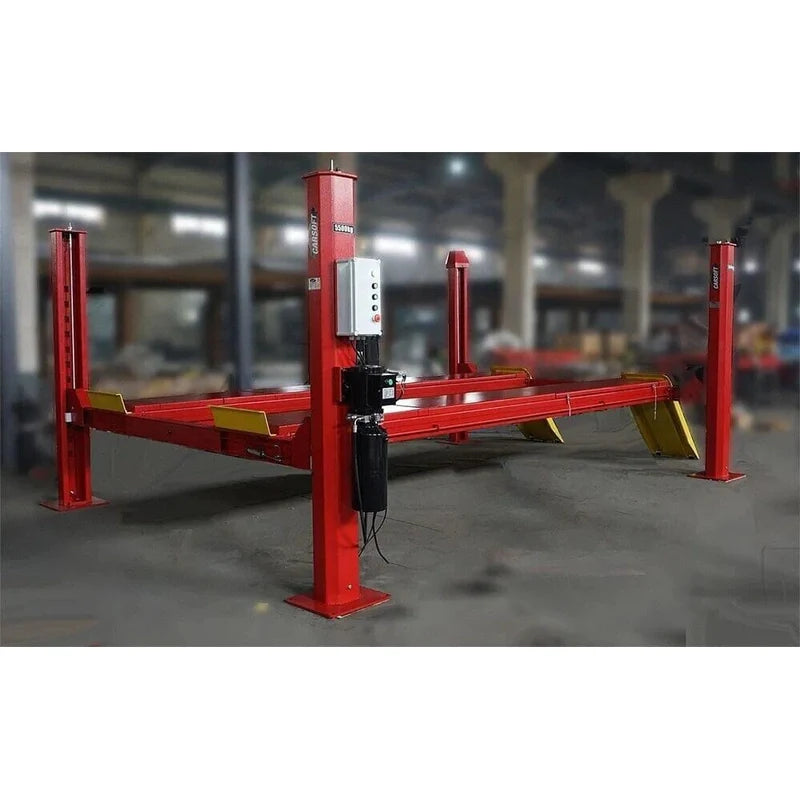

Powerside Column: Flexible installation options at either side, front, or rear.
Non-Skid Diamond Platforms: Provides stability and safety during operation.

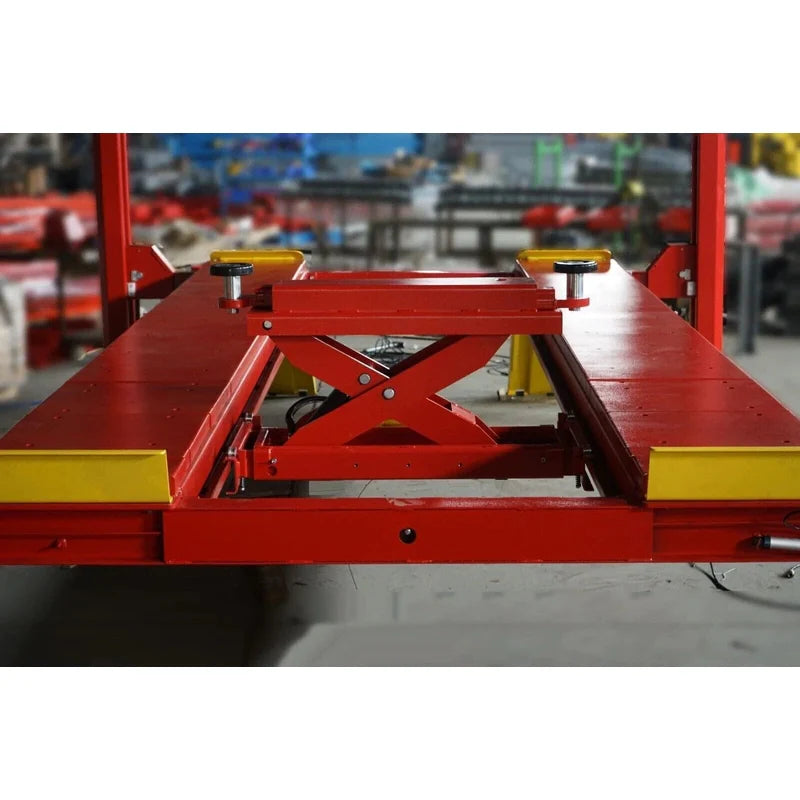

Included Rolling Jack: One 6,000 lbs rolling jack for additional lifting capabilities.
Optional Turn Tables for Wheel Alignment: Enhances the lift’s versatility for alignment tasks.
High-Quality Hydraulic System: Powered by a 3KW motor, available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations.

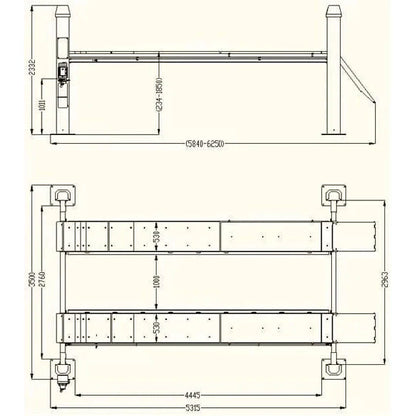

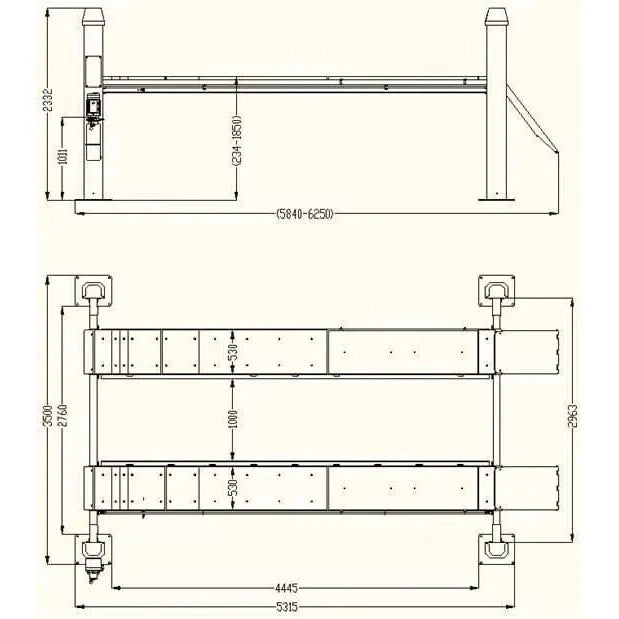

Specifications
Lifting Capacity
15,000 lbs (~6,803 kg)
Max. Lifting Height
92.52" (2,350 mm)
Lifting Time
95s Up / 55s Down
Height of Posts
85.63" (2,175 mm)
Width Overall
136.06" (3,456 mm)
Length Overall
245.31" (6,231 mm, with ramps)
Inside Columns
118.11" (3,000 mm)
Min. Runway Height
9.3" (236 mm)
Motor
220VAC/60HZ/1PH
Net Weight
4,850 lbs (2,200 kg)
User Manual
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H150 User Manual. Click the link below to download:
*Concrete Requirements: Ensure a minimum concrete thickness of 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these requirements could result in serious injury or death.
Warranty
Katool provides a 1-year limited warranty on all parts and product defects. Additionally, vehicle lifts include a 3-year warranty on structural components. Optional 2-year extended warranty plans are also available.
Warranty Includes:
Cylinders, power units, motors, displays, and electronics.
Structural components for vehicle lifts.
Warranty Conditions:
Claims must fall within the warranty period and are non-transferable.
Replacement parts are provided free of charge, including shipping.
Labor costs are not included in the warranty.
Disassembly of equipment prior to warranty approval is not permitted.
All warranty claims are subject to review by the warranty/service department. Supporting documentation, such as photos or videos of defects, may be required for approval.
