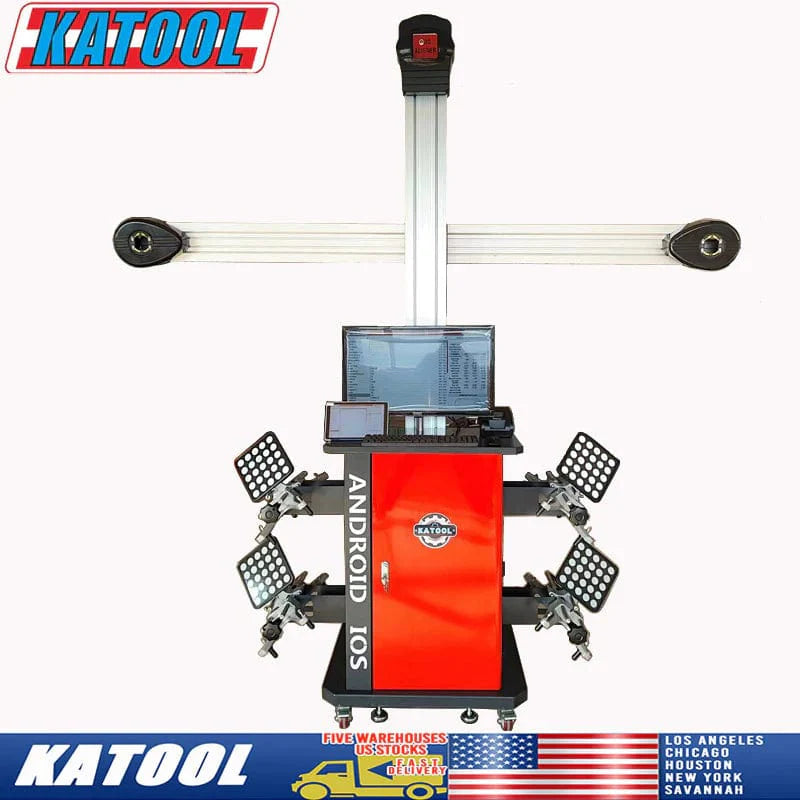

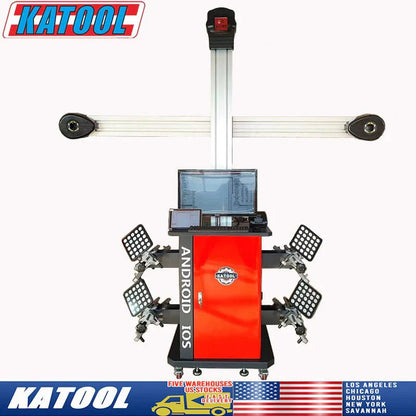

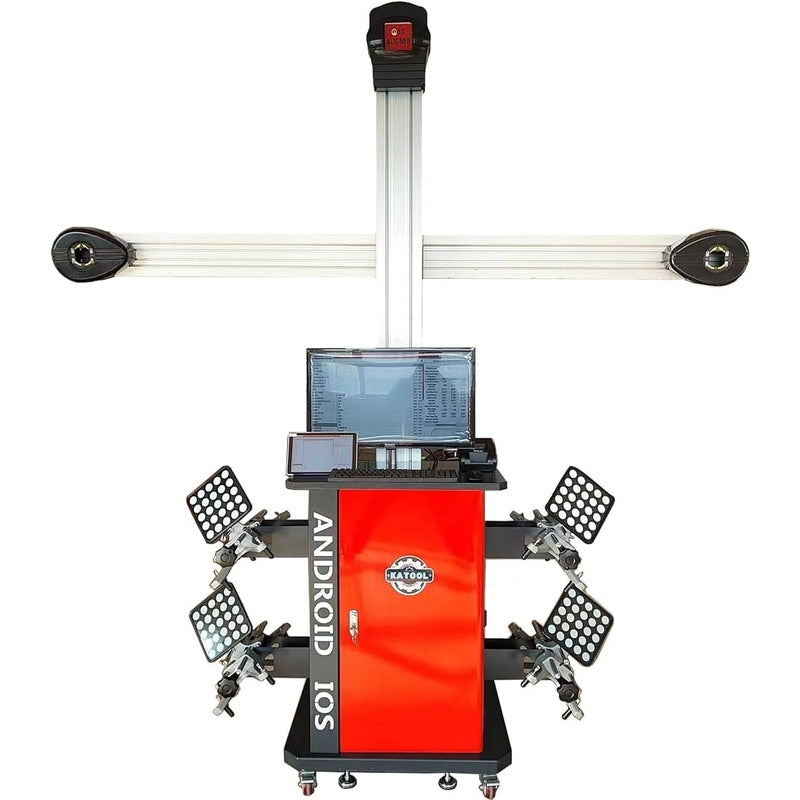

The Katool KT-AV9 Full-Automatic Wheel Alignment Machine is designed to work seamlessly on 2 Post & Scissor Lifts, offering unprecedented convenience and efficiency. This mobile 3D Wheel Aligner comes with unlimited memory for vehicle specifications and requires no calibration during installation, streamlining your alignment process. The comprehensive package includes a tablet, a 30-inch display screen, mouse, keypad, and a printer. A complementary WiFi device and USB drive further enhance connectivity and data accessibility. The software operates on both Android and iOS systems, minimizing the need for software and system maintenance. Enjoy synchronous display on smartphones and tablets, allowing clients to monitor the alignment operation during service. Engineers can easily check data changes on a smartphone during rear wheel adjustments, and the post moves with a remote control, simplifying vehicle height tracking. Plus, enjoy free yearly database upgrades that stay current with the latest car models from US, European, and Asian brands.
Features

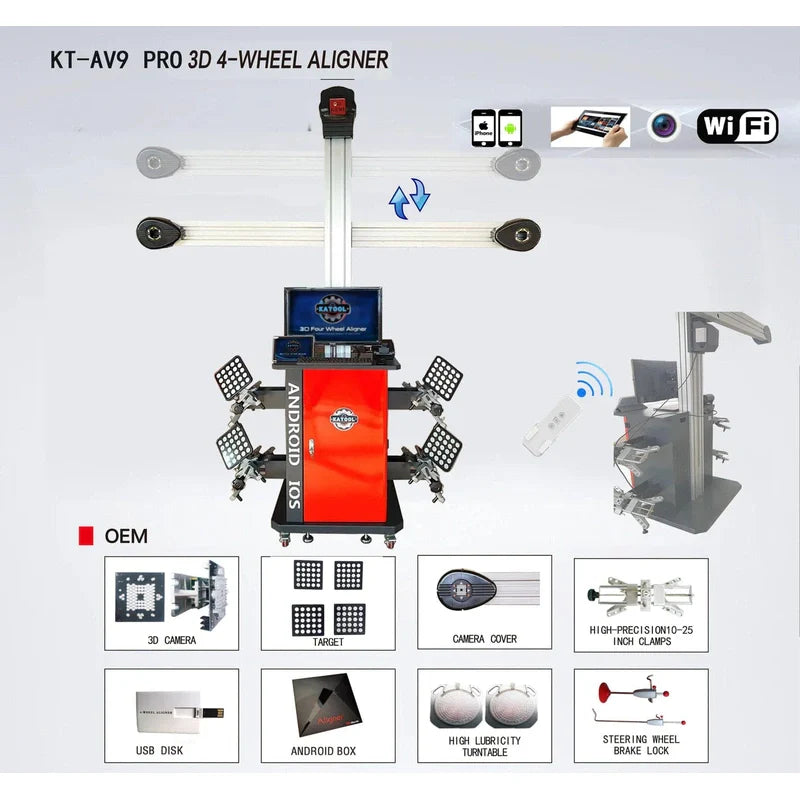

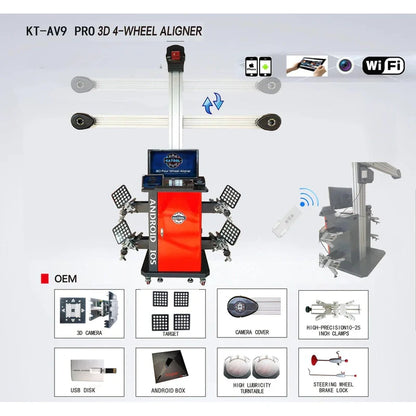

- Mobile 3D Wheel Aligner for Lift Application
- Unlimited memory for vehicle specifications
- No calibration during installation

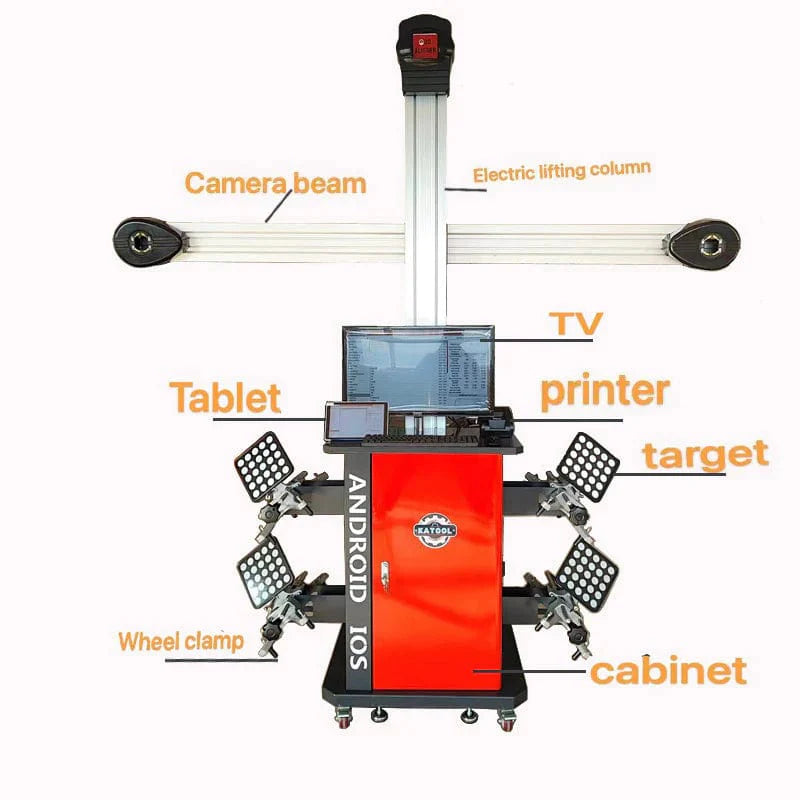

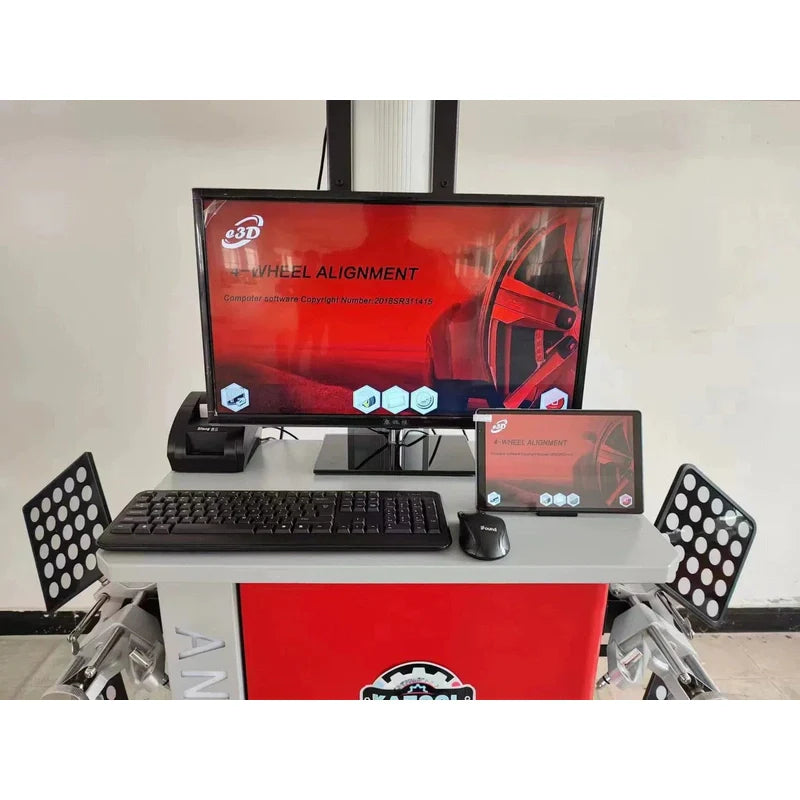

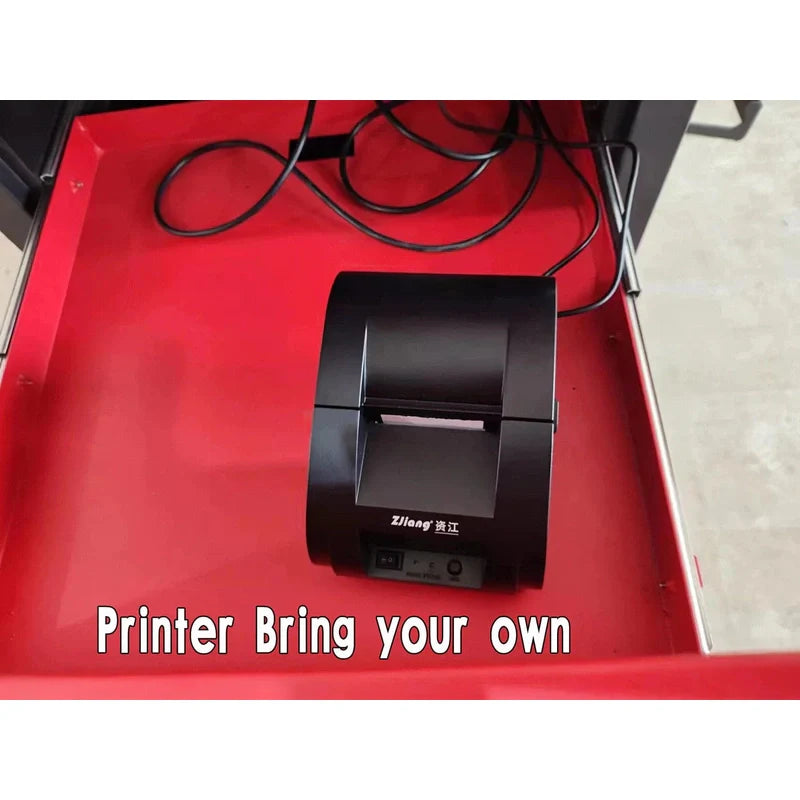

- Includes tablet and a 30inch display screen, mouse and keypad, and a printer

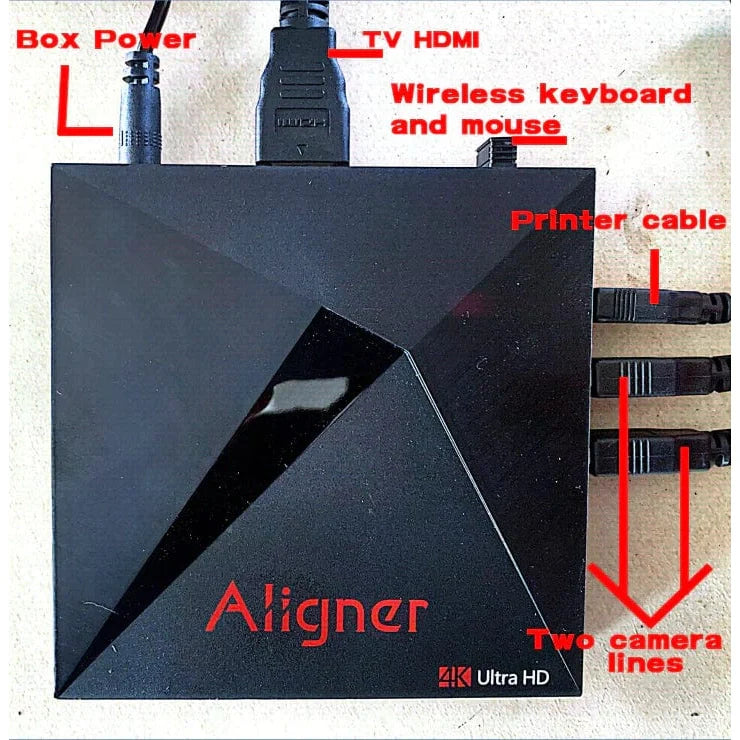

- Complementary wifi device and USB drive

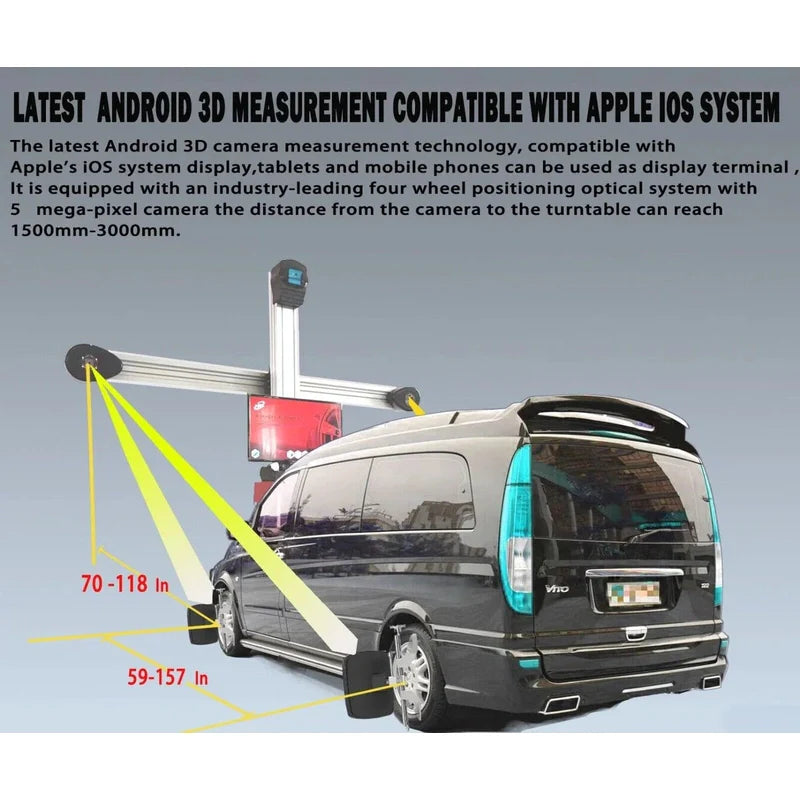

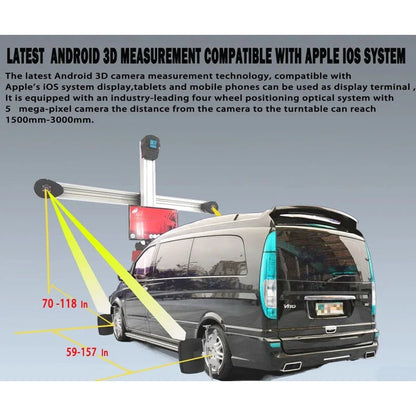

- Uses Android and IOS systems for the software, minimizes the need for software and system maintenance

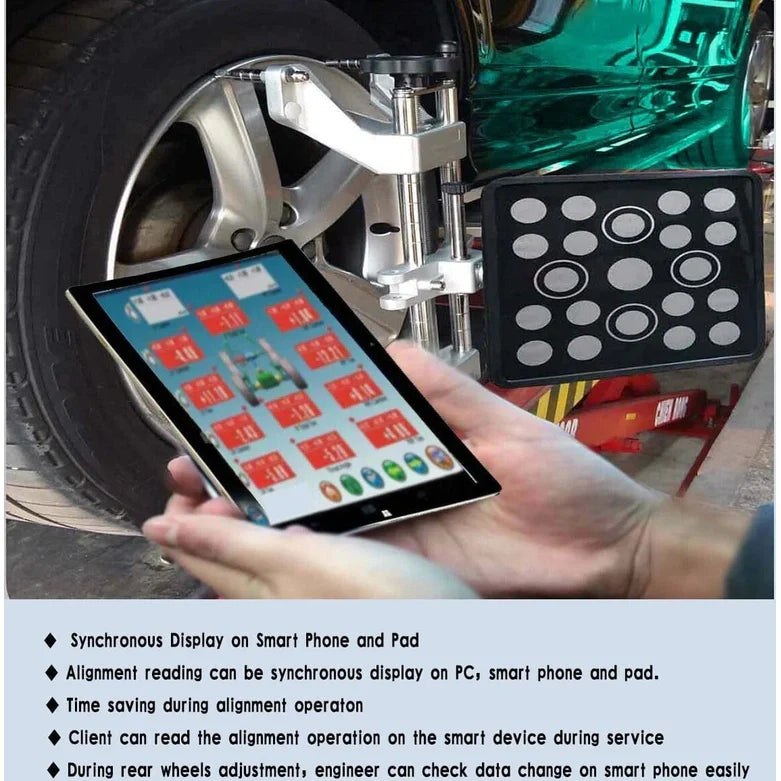

- Synchronous Display on Smart Phone and Pad
- The client can read the alignment operation on the smart device during the service
- During rear wheel adjustment, the engineer can check data change on a smartphone easily
- The post moves with a remote control, which makes it easy to track the height of the vehicles
- Free database upgrades yearly
- The database keeps up with the most recent car models from all US, European and Asian brands
Specifications
|
Power Supply
|
100-240V,50/60 HZ,1 Ph
|
|
Working Temperature
|
41F104 F(+5?+40?)
|
|

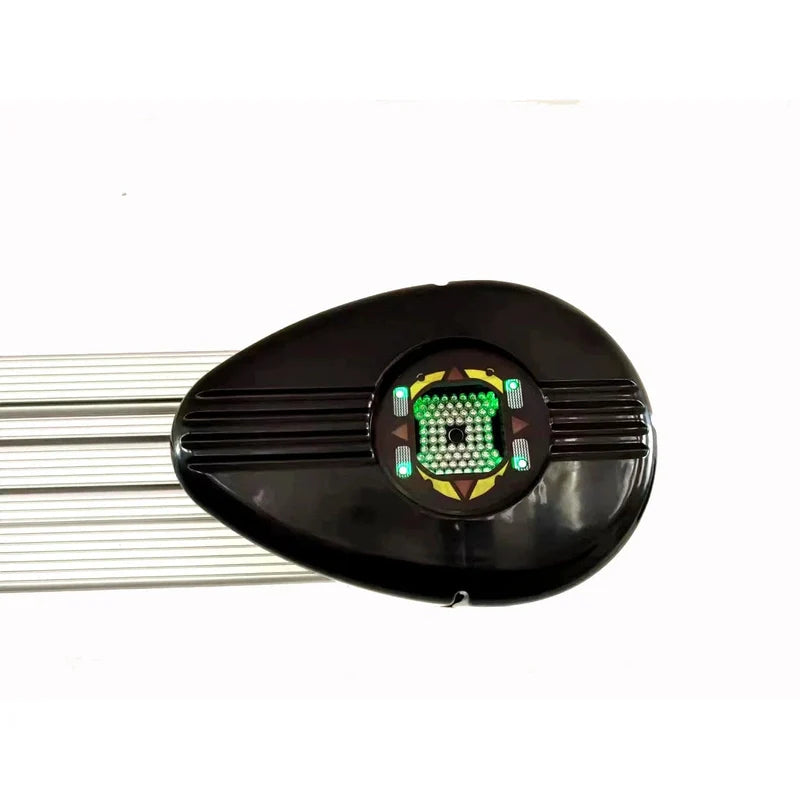

Cameras (Total)
|
2
|
|
Tire Diameter
|
9 27/32-31 1/2 in(250-800 mm)
|
|
Wheellbase
|
62 63/64 -82 43/64 in(1.6-2.1m)
|
|
Track Width
|
70 55/64-177 11/64 in(1.8 -4.5 m)
|
|
Warranty
|
1-Year Limited
|
|
Product Weight
|
440.92 Ibs(200 kg)
|
|
Shipping Weight
|
529.11 Ibs(240 kg)
|
|
Shipping Dimensions
|
39.76x36.61x48.47 in(1010x930x1230mm)
110.24x15.75x15.75in(2800x400x400mm)
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
