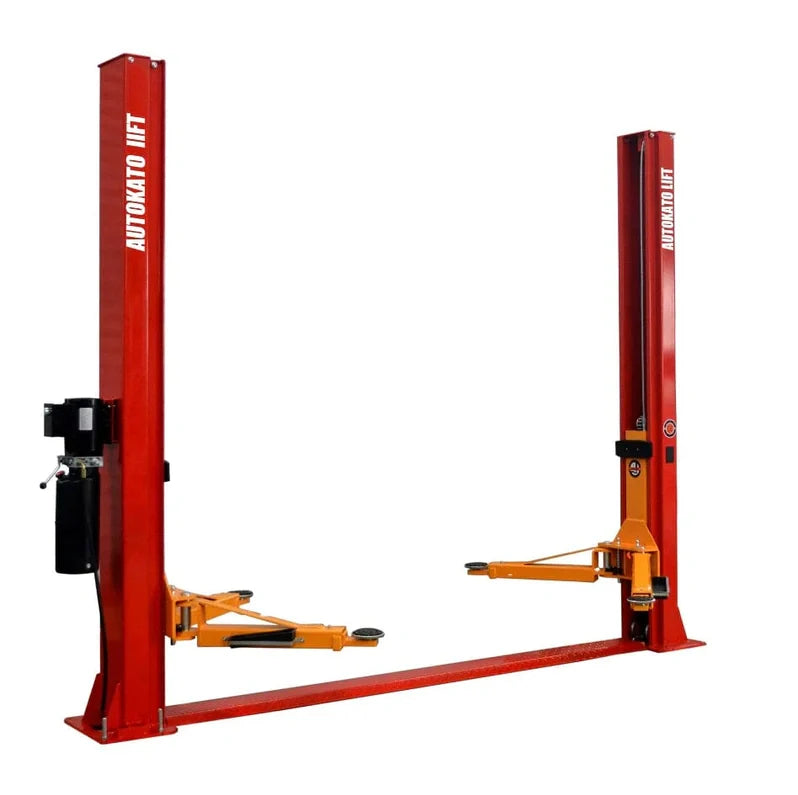

The Katool KT-H100 Two Post Vehicle Lift has a robust lifting capacity of 10,000lbs. CE Approved and Certified, it meets stringent safety standards, having undergone dynamic and static loading capacity tests. The lift features a manual safety release from two sides, a symmetric arm design, and a reliable base plate design. With dual hydraulic chain-drive cylinders, it ensures efficient and secure lifting. The rubber pad door opening protection adds an extra layer of safety. The lift comes complete with extension support adaptor sets of +30mm and +120mm, providing versatility for different vehicle types. The inclusion of feet-protection safety guardrails with a tools box enhances user safety. Powered by a top-level hydraulic system, it offers flexibility with optional 220V/60HZ/1PH and 110V/60HZ/1PH configurations.
*Concrete thickness must be at least 5.9 (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customers responsibility to verify concrete thickness and strength before purchase and installation.

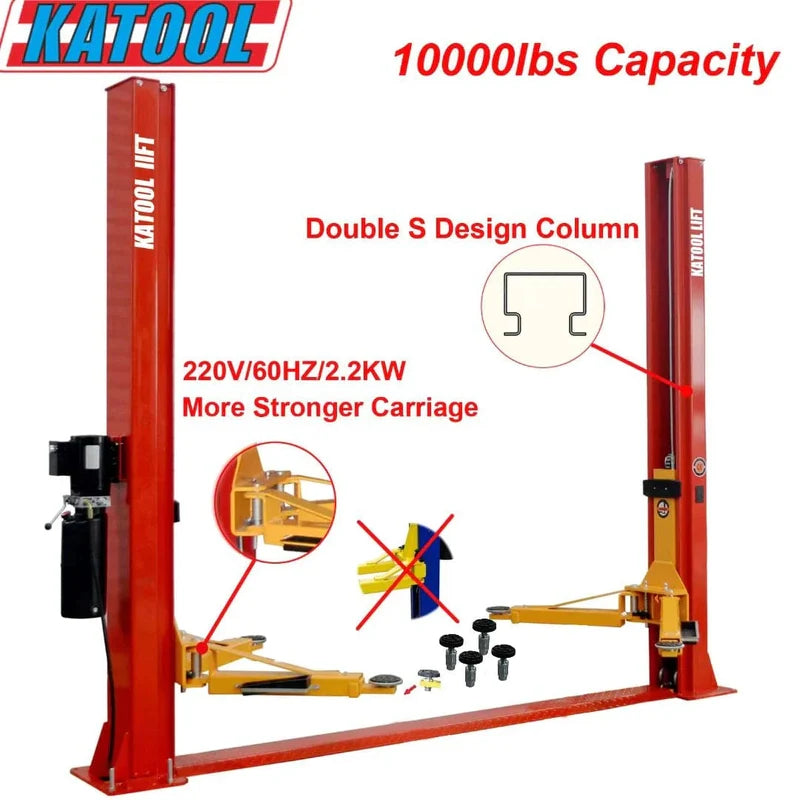

Features
- 10000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Manual safety release from two sides
- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection
- Comes with extension support adaptor sets of +30mm and +120mm
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)

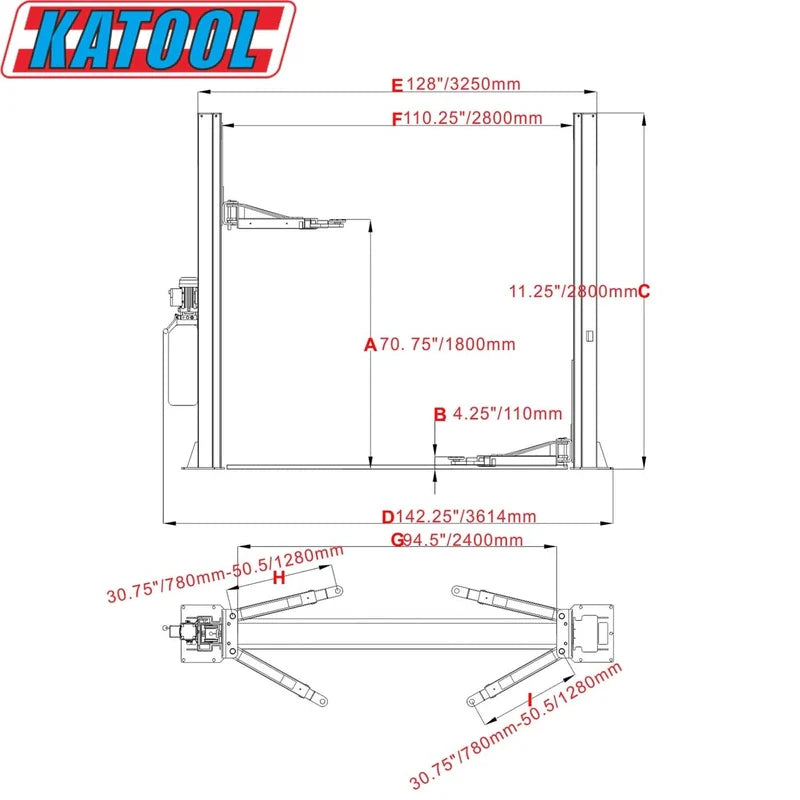

Specifications
| Lifting Capacity |
10000lbs/4500KG |
| Max. Lifting Height |
70.75"/1800mm |
| Min. Height |
4.25"/110mm |
| Height Overall |
110.25"/2800mm |
| Width Overall |
142.25"/3614mm |
| Outside Column |
128"/3250mm |
| Inside Column |
110.25"/2800mm |
| Dirve-Thru Clearance |
94.5"/2400mm |
| Front Arm Reach (Min) |
30.75"/780mm (2 stages) |
| Front Arm Reach (Max) |
50.5"/1280mm (2 stages) |
| Rear Arm Reach (Min) |
30.75"/780mm (2 stages) |
| Rear Arm Reach (Max) |
50.5"/1280mm (2 stages) |
| Motor |
220VAC/60HZ/1PH/2.2KW |
| Net Weight |
1256lbs/570KG
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
All of the products that they offer to clients are tried and tested within the industry and are proven to be the most reliable equipment on the market.
Resources
For more detailed information and guidance, you can download the following:
