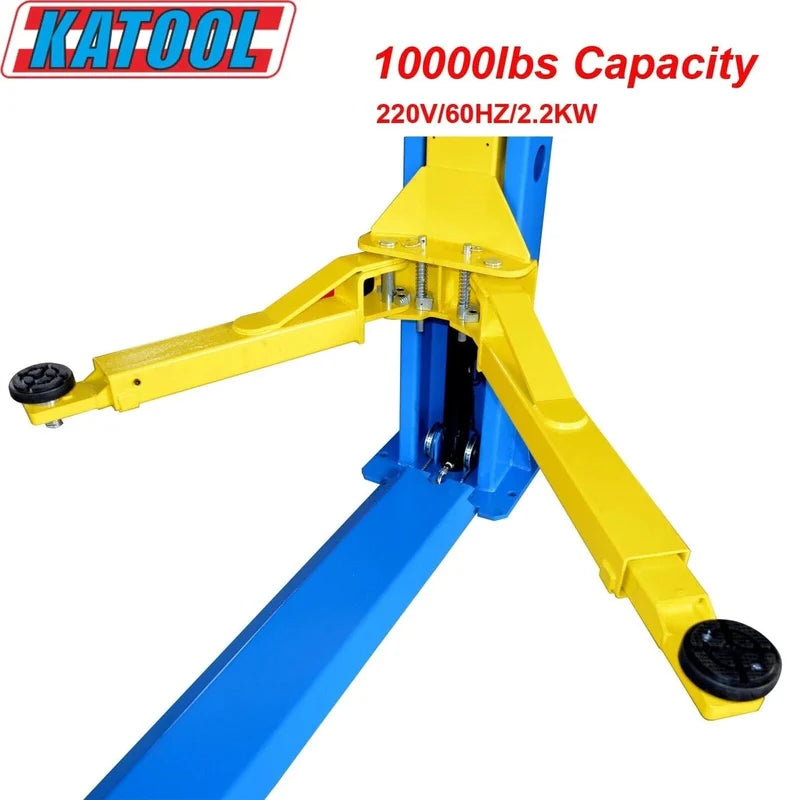

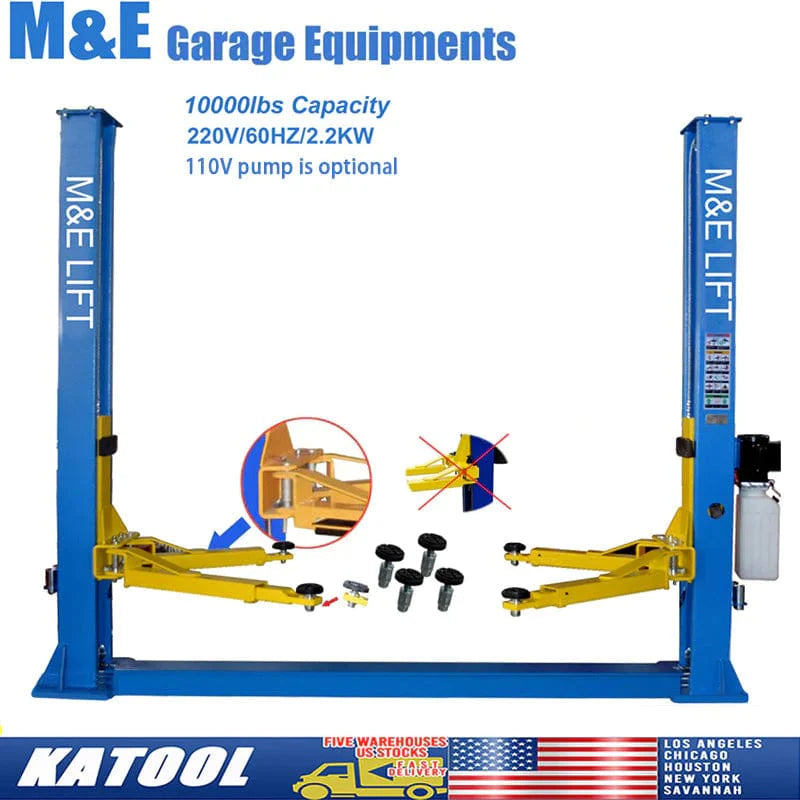

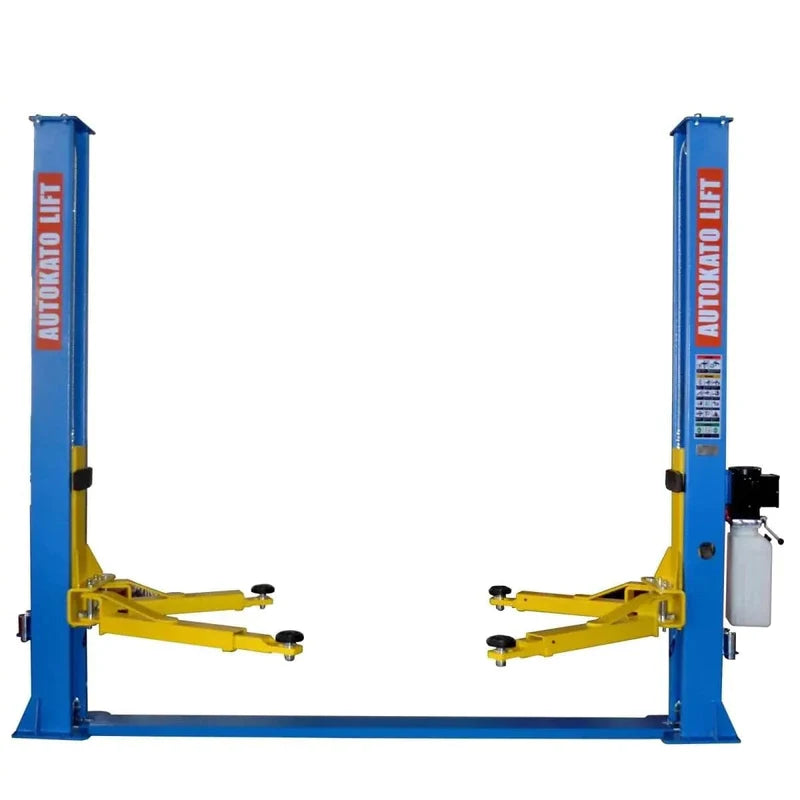

The Katool KT-H105 Two Post Vehicle Lift is a powerful solution with a lifting capacity of 10,000lbs. CE Approved and Certified, it surpasses safety standards, undergoing rigorous 115% dynamic loading and 150% static loading capacity tests. Featuring a manual safety release from two sides, base plate design, and dual hydraulic chain-drive cylinders, it ensures secure and efficient lifting. The rubber pad door opening protection enhances safety, and the lift comes equipped with screw-on pads and extension support adaptor sets of +100mm for added versatility. Powered by a top-level hydraulic system, it operates seamlessly with a 220V/60HZ/1PH configuration.
*Concrete thickness must be at least 5.9 (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customers responsibility to verify concrete thickness and strength before purchase and installation.
Features
-
10000lbs lifting capacity
- CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested
- Manual safety release from two sides
- Dual Hydraulic Chain-Drive Cylinders
- Robber pad door opening protection

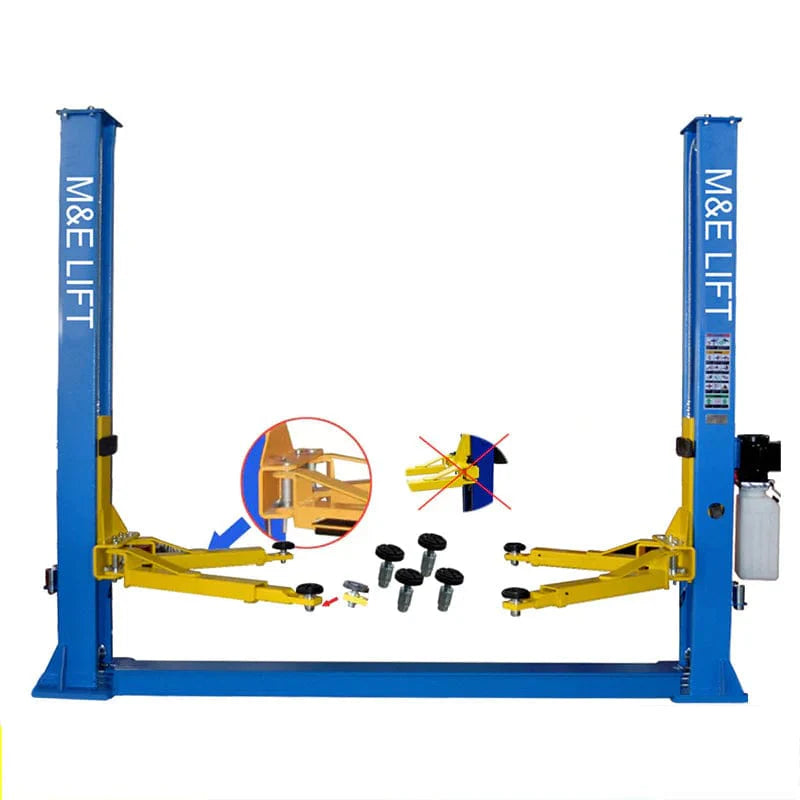

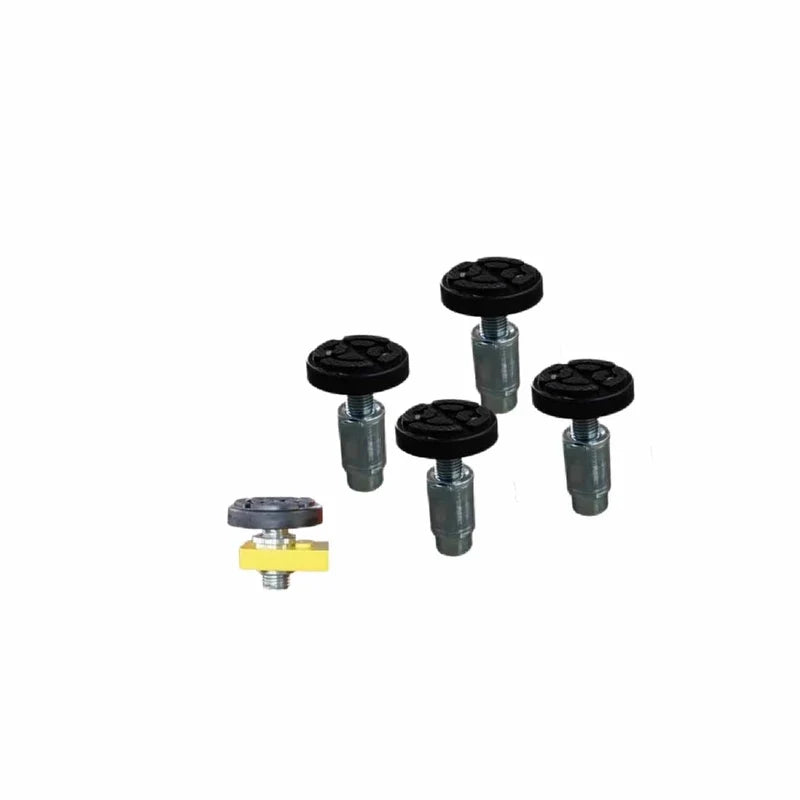

- Screw-on pad and extension support adaptor sets +100mm
- Top-level hydraulic system with 220V/60HZ/1PH

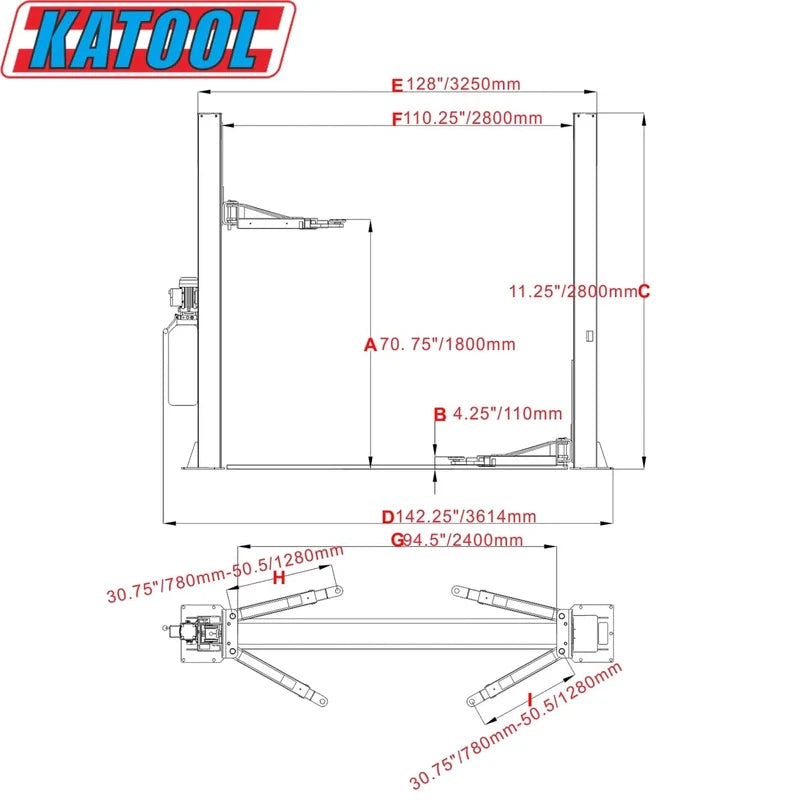

Specifications
|
Lifting Capacity
|
10000lbs.(4500KG)
|
|
Max. Lifting Height
|
70.8"/1800mm
|
|
Min. Height
|
3.9"/100mm
|
|
Height Overall
|
110.9"/2818mm
|
|
Width Overall
|
140.4"/3565mm
|
|
Outside Column
|
124.8"/3170mm
|
|
Inside Column
|
110.2"/2800mm
|
|
Dirve-Thru Clearance
|
98.4"/2500mm
|
|
Front Arm Reach(Min)
|
29.5"/750mm(2 stages)
|
|
Front Arm Reach (Max)
|
46"/1170mm(2 stages)
|
|
Rear Arm Reach(Min)
|
35.4"/900mm(2 stages)
|
|
Rear Arm Reach(Max)
|
58.2"/1480mm(2 stages)
|
|
Motor
|
220VAC/60HZ/1PH/2.2KW
|
|
Net Weight
|
570KG
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
