Description

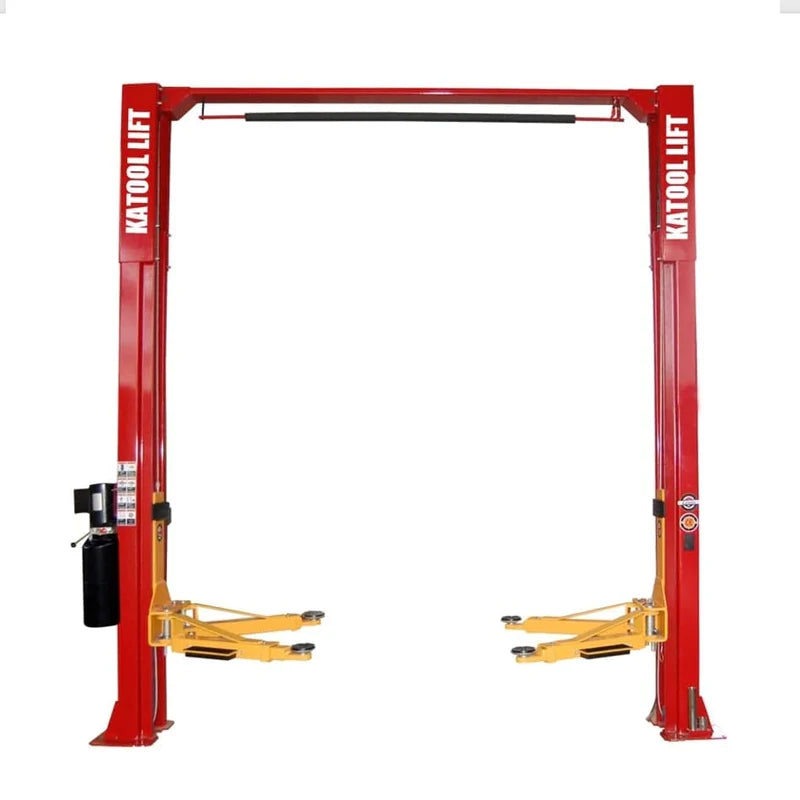

The Katool KT-M110 Two Post Clear-floor Vehicle Lift is a powerful lifting solution with an 11,000lbs capacity. CE Approved and Certified, it exceeds safety standards, undergoing rigorous 115% dynamic loading and 150% static loading capacity tests. With a symmetric clear-floor design, manual safety release from two sides, and dual Hydraulic Chain-Drive Cylinders, it ensures secure and efficient lifting. The rubber pad door opening protection, extension support adaptor sets of +30mm and +120mm, and added overhead safety shutoff bar enhance user safety and lift versatility. Featuring feet-protection safety guardrails with a tools box, it combines convenience with safety. The lift operates seamlessly with a top-level hydraulic system, offering flexibility with optional 220V/60HZ/1PH and 110V/60HZ/1PH configurations.

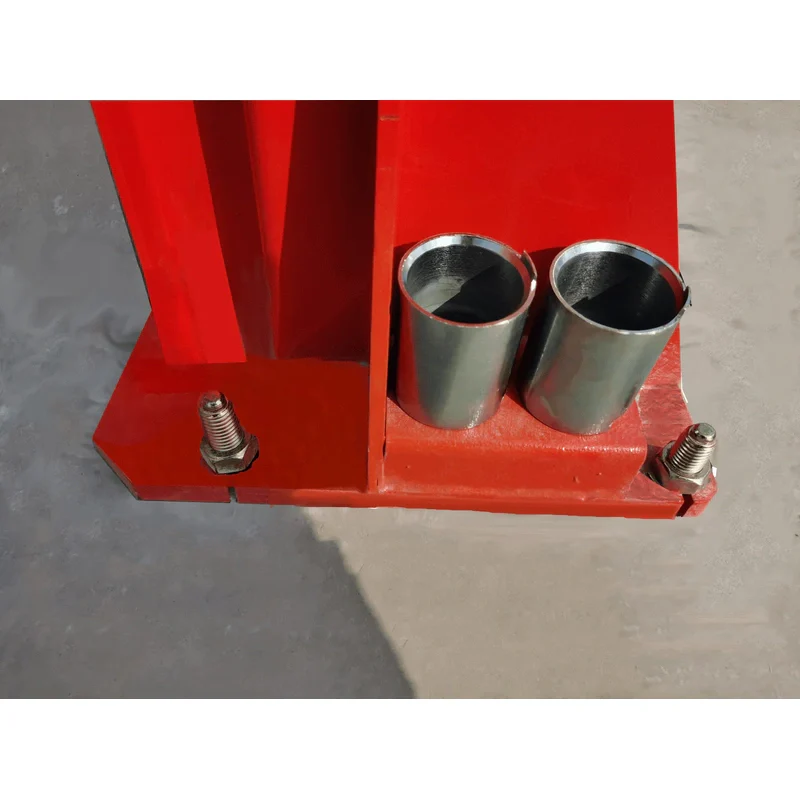

*Concrete thickness must be at least 5.9 (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customers responsibility to verify concrete thickness and strength before purchase and installation.
Features

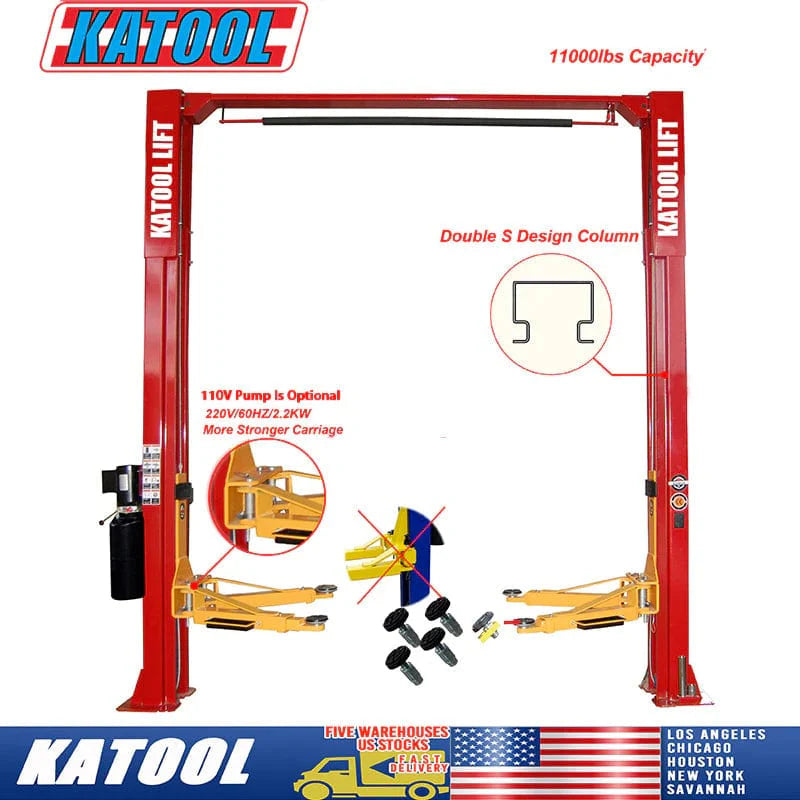

- 11000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Symmetric clear-floor design
- Manual safety release from two sides

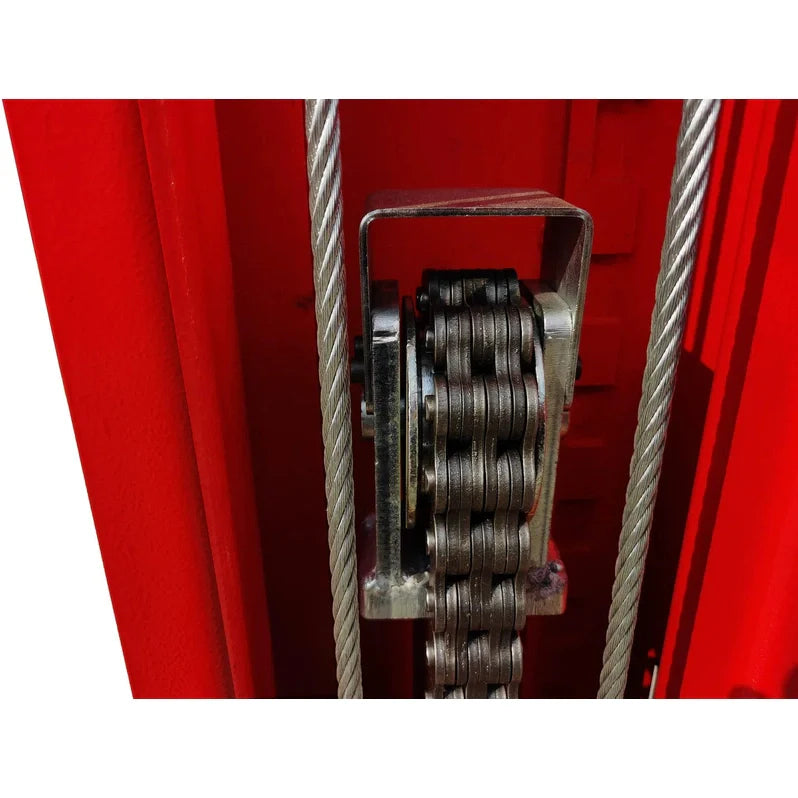

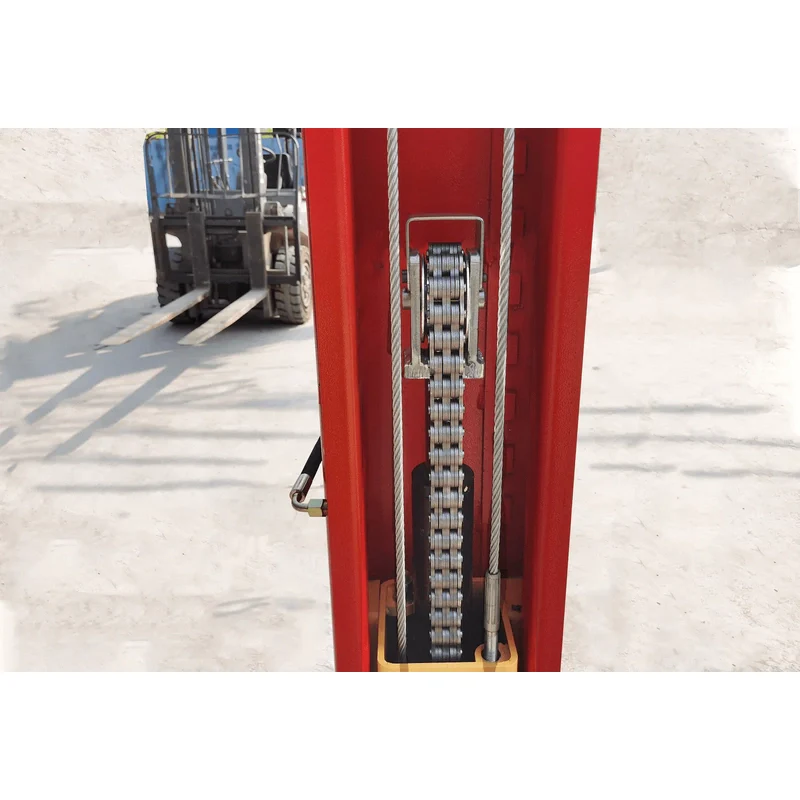

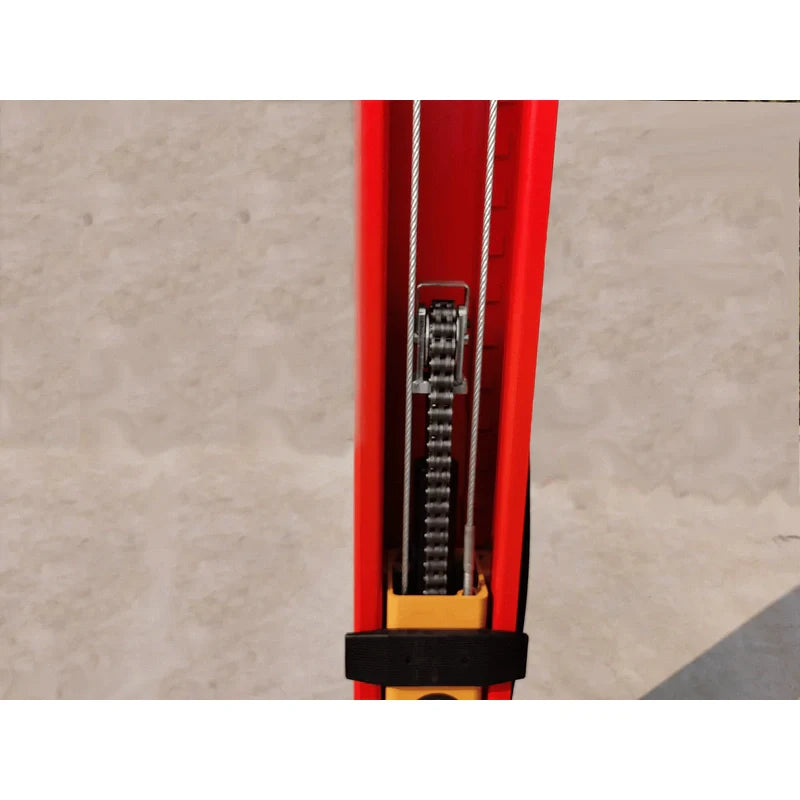

- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection

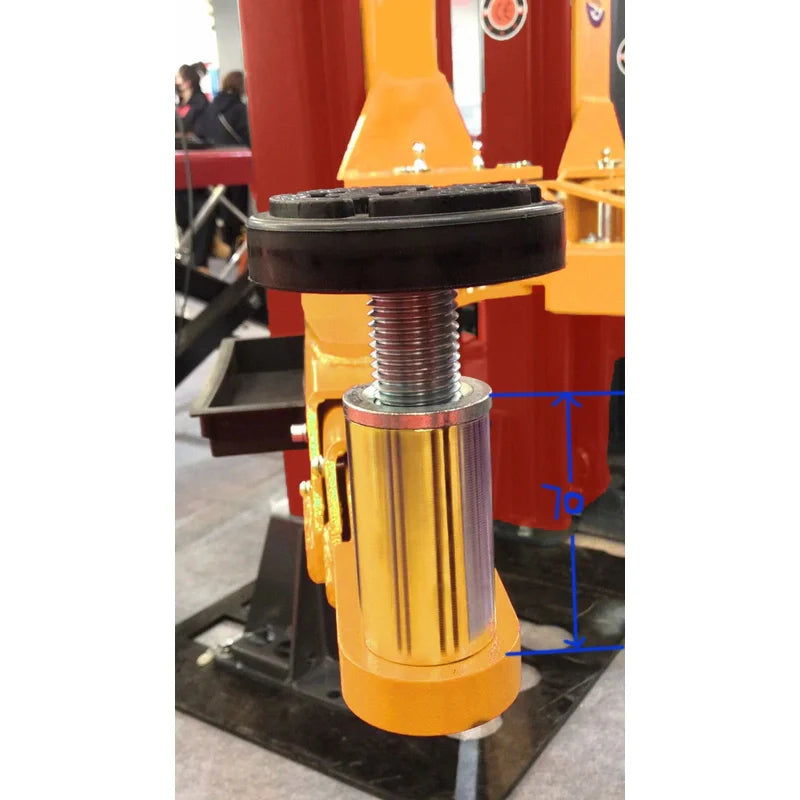

- Comes with extension support adaptor sets of +30mm and +120mm
- Added overhead safety shutoff bar
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH(Optional)

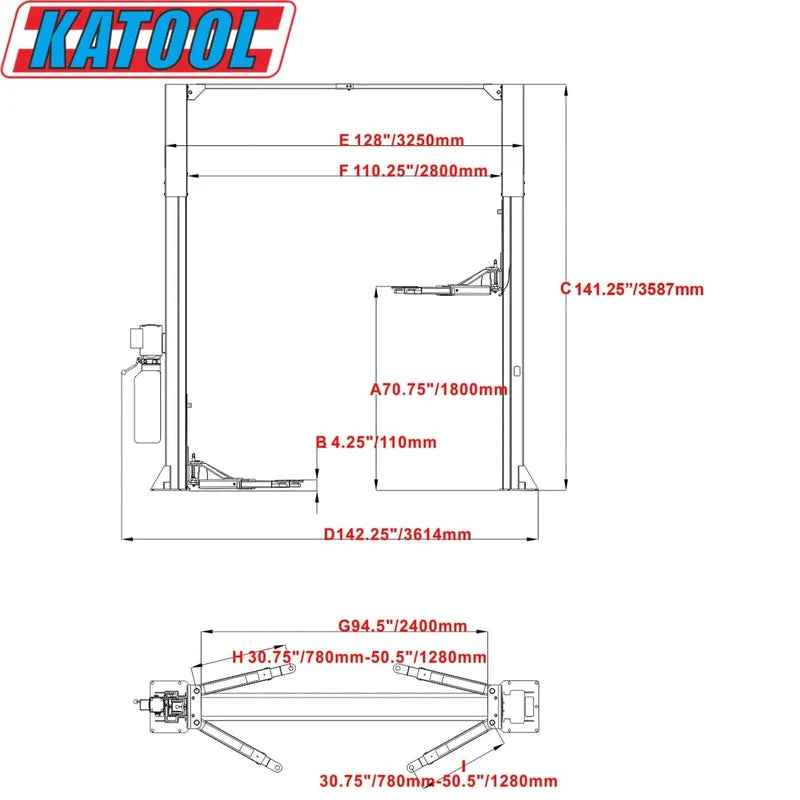

Specifications
| Lifting Capacity |
11000lbs.(5000KG) |
| Max. Lifting Height |
70.75"/1800mm |
| Min. Height |
4.25"/110mm |
| Height Overall |
141.25"/3587mm |
| Width Overall |
142.25"/3614mm |
| Outside Column |
128"/3250mm |
| Inside Column |
110.25"/2800mm |
| Dirve-Thru Clearance |
94.5"/2400mm |
| Front Arm Reach (Min) |
30.75"/780mm (2 stages) |
| Front Arm Reach (Max) |
50.5"/1280mm (2 stages) |
| Rear Arm Reach (Min) |
30.75"/780mm (2 stages) |
| Rear Arm Reach (Max) |
50.5"/1280mm (2 stages) |
| Motor |
220VAC/60HZ/1PH/2.2KW |
| Net Weight |
1367lbs/620KG |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
