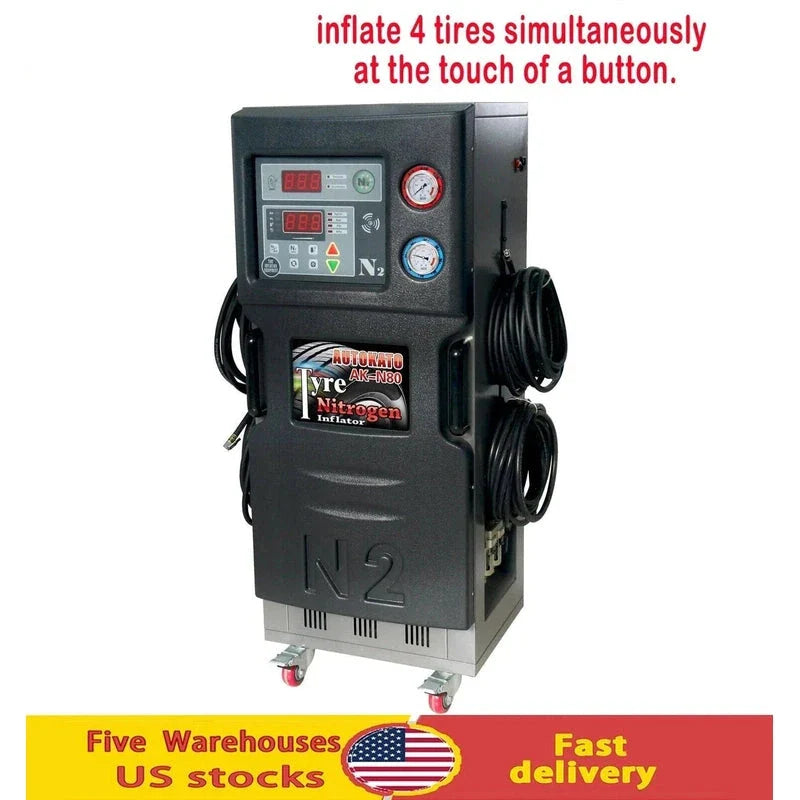

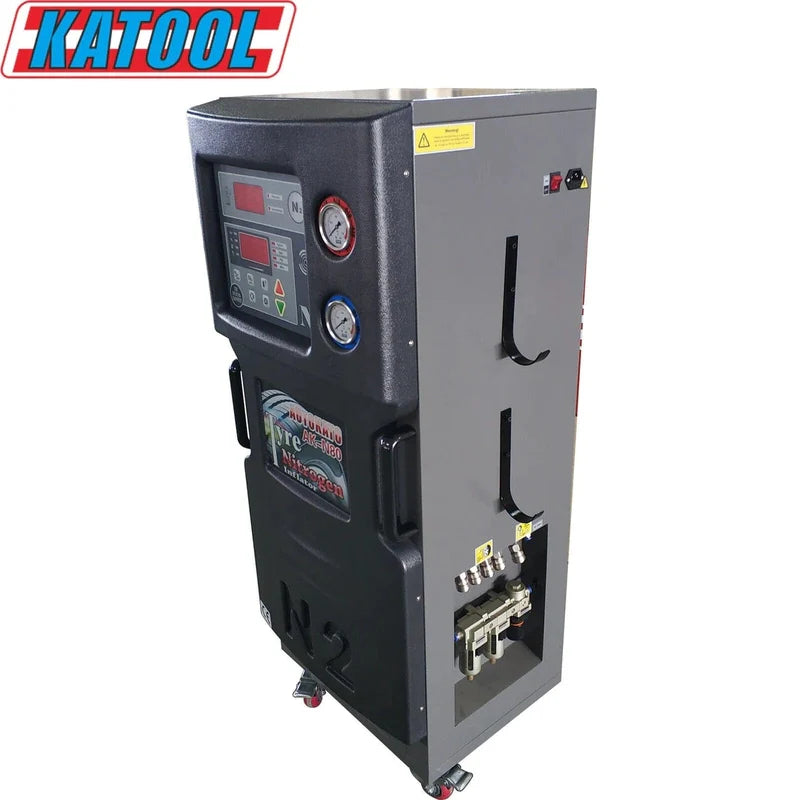

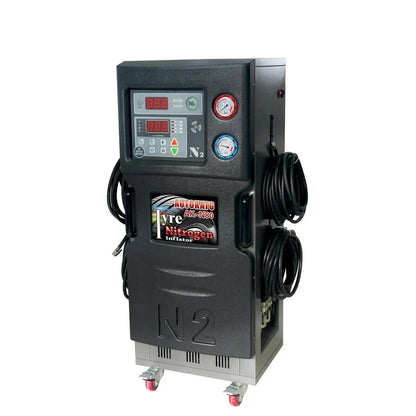

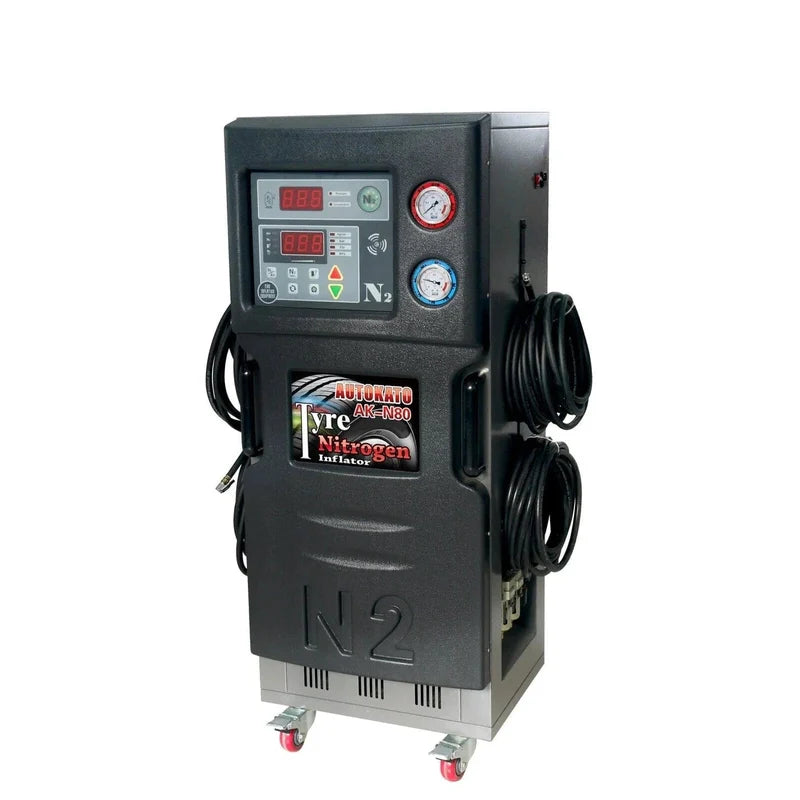

The Katool KT-N80 Tire Nitrogen Generator is a great solution for efficient and high-purity nitrogen generation. It is designed to work on all car wheels, this generator stands out for its professional energy efficiency management, ensuring optimal energy savings. The nitrogen generation purity is adjustable to meet diverse user needs. Offering precise and convenient operation, it automatically inflates tires to the pre-set pressure when connected, guaranteeing safe and accurate results. The generator's dedicated chip control, precise pressure sensor monitoring, and special mode for managing 0 pressure tires make it a safe, reliable, and accurate tool for nitrogen generation.
Features
-
All hydraulic power system to work on all car wheelsElegant appearance, high efficiency and purity nitrogen generation
-
Professional energy efficiency management better saves energy
-
Adjustable nitrogen generation purity( efficiency) can meet the needs of all users
-
When pipe is connected to tire, inflate the pre-set pressure automatically and precisely. Safe, precise and convenient operation
-
Automatically vacuumize and inflate the tires which are to be inflated for the first time, thus guaranteeing the nitrogen purity inside
-

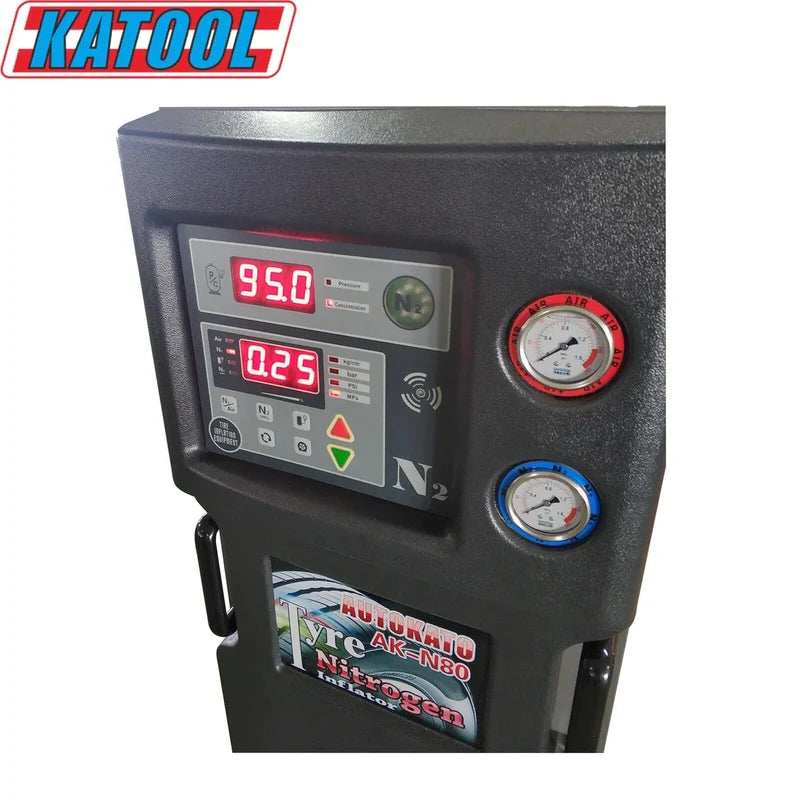

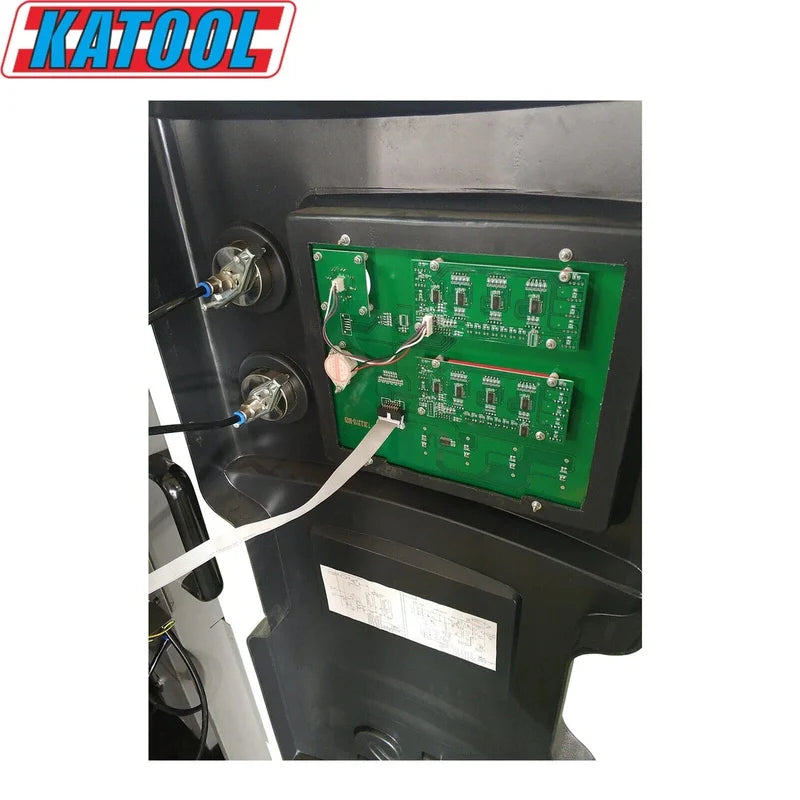

Dedicated chip control, precise pressure sensor monitor, safe, reliable and accurate
-
Adopt special mode to manage 0 pressure tire
Specifications
|
Vehicle applicable:
|
Car & Van
|
|
Power supply:
|
AC110V 60HZ
|
|
Power consumption:
|
30W |
|
Power supply:
|
220V / 1PH / 60HZ |
|
Nitrogen purity :
|
95%-99.5%
|
|
Input pressure :
|
?10 Bar/1 MPa
|
|
Output pressure:
|
<8 Bar / 0.8 MPa |
|
Working temperature :
|
20?~+70? |
|
Measurement range :
|
5~145psi /0.3~10Bar |
| Precision : |
1 Psi /0.07 Bar |
| Display mode: |
LED display |

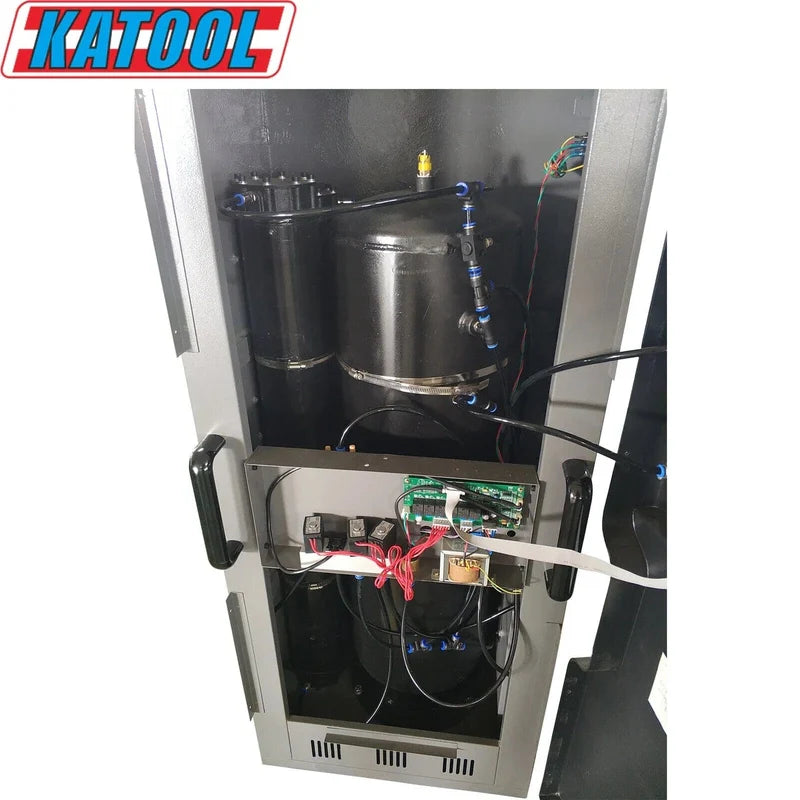

| Tank size |
70L |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
