Description

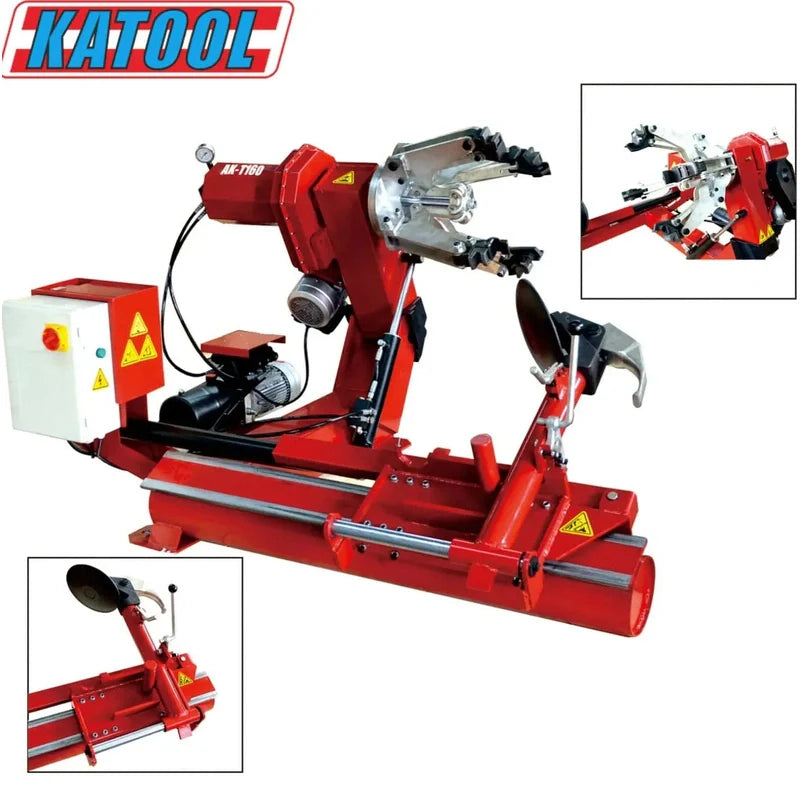

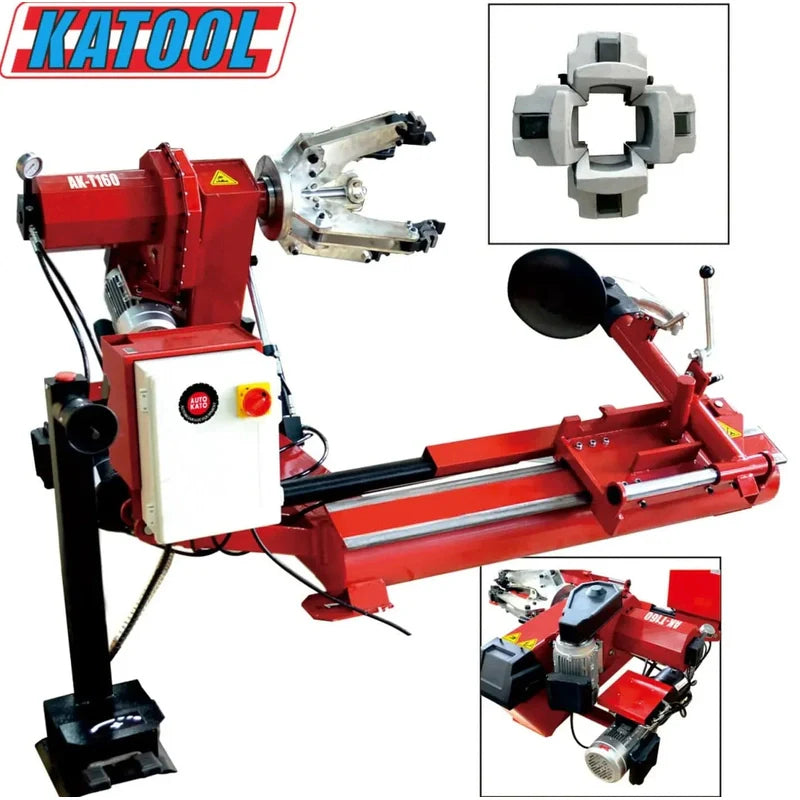

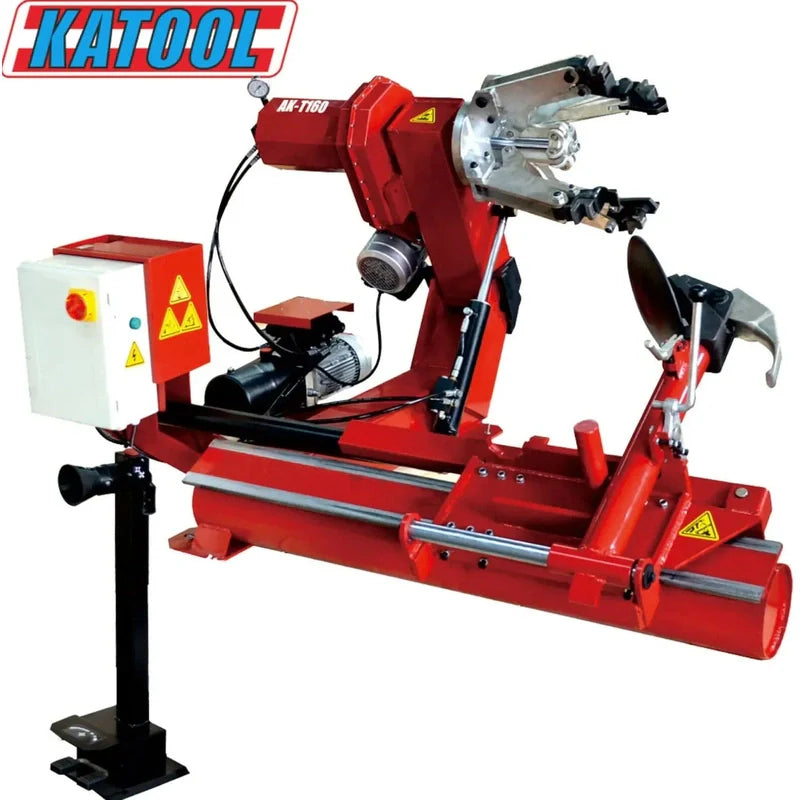

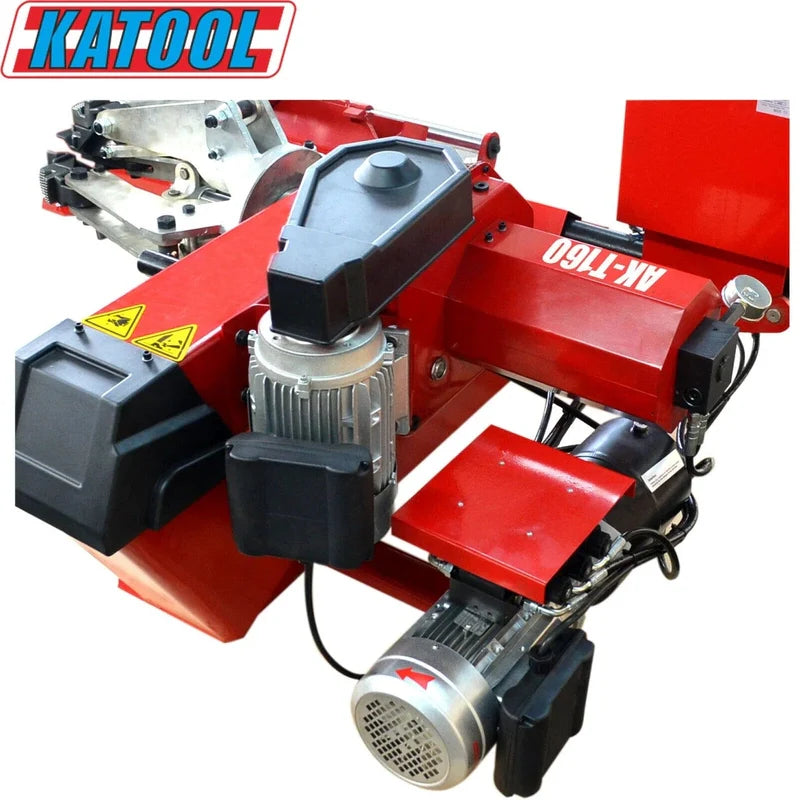

The Katool KT-T160 Heavy Duty Truck Tire Changer Machine is a robust electro-hydraulic solution designed for trucks, buses, tractors, and earth-moving vehicle tires. The multifunctional control allows safe operation in any position, ensuring user convenience. This tire changer is powerful, precise, and quick, featuring a beak and disk for a particularly strong grip on wheels, even on the most delicate rims. With the Multifix system, it accommodates tire sizes from 14" up to 26", providing versatility for various applications. Additionally, the low-voltage electric components ensure complete user safety during operation.
Features
- Heavy duty electro-hydraulic tire changer for Trucks, Busses, tractors and earth-moving vehicle tires
- Multifunctional control, allows the user to operate in any position safely

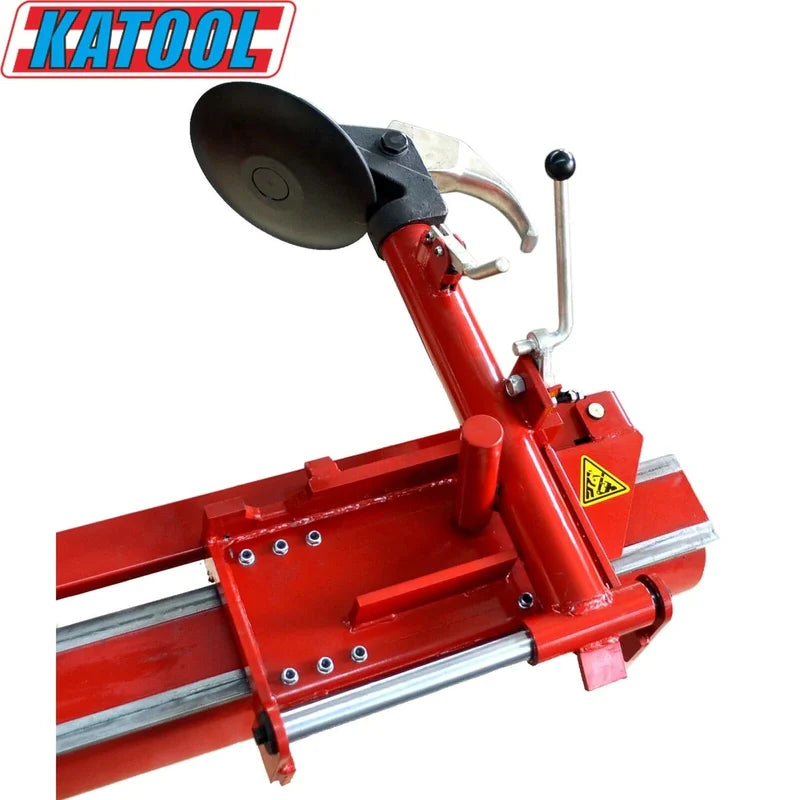

- Powerful, precise and quick: a beak and disk- it ensures the bead on wheels is particularly strong, even on the most delicate rims

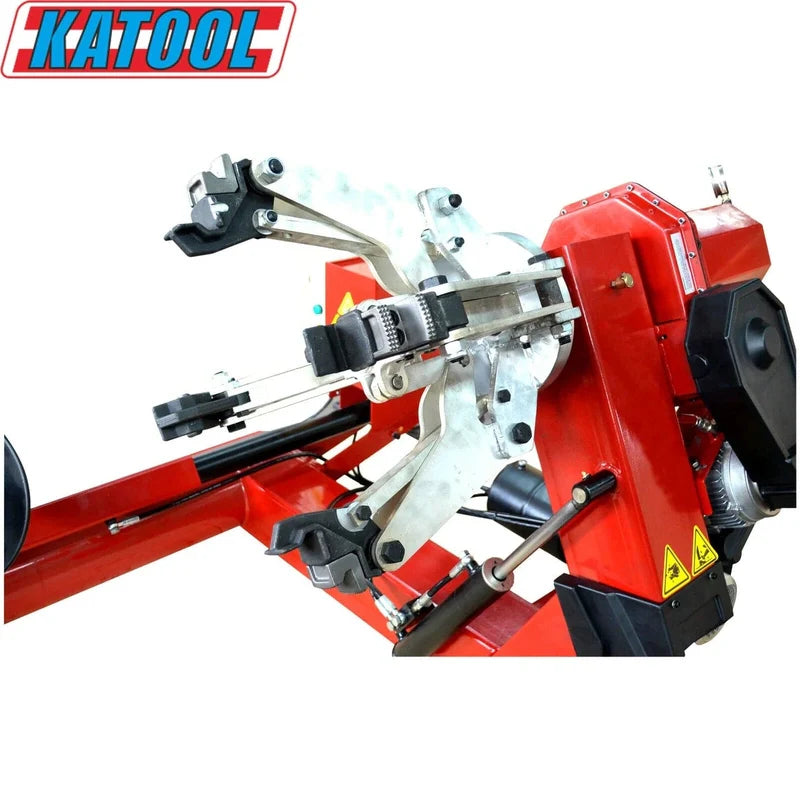

- Multifix system to operate from 14" up to 26"
- Low voltage electric components ensure user complete safety
Specifications
|
Max wheel diameter
|
62" / 1600 mm
|
|
Max wheel width
|
30" / 780 mm
|
|
Rim diameter
|
14"-26"
|
|
Working pressure
|
?130 bar
|
|
Power supply
|
220V 1PH
|
|
Pump motor power
|
1.5KW(2.0HP)
|
|
Gear box motor power
|
2.2KW(3.0HP)
|
|
Net weight
|
570 KG / 1257 lbs
|
|
Packing size
|
2030mm *1570mm*830mm
79.9inch * 61.8inch * 32.7inch
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
