Description

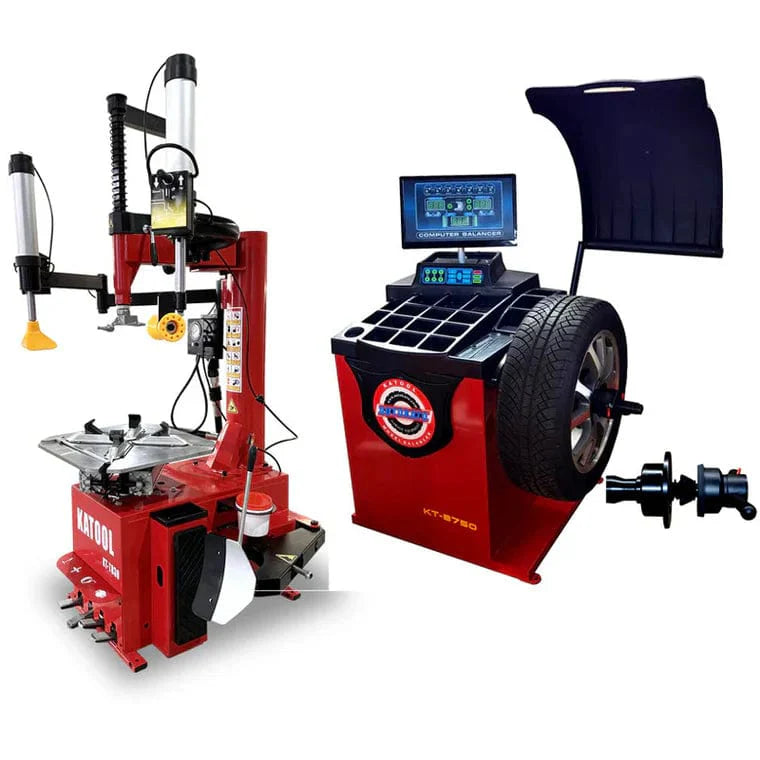

The Katool KT-T830 Wheel Clamp Tire Changer Machine and KT-B750 Wheel Balancer Combo offer a comprehensive solution for efficient tire changing and precise wheel balancing, making them ideal for automotive workshops and service centers.
Features
KT-T830Tire Changer Features:
-
Durable Alloy Steel Jaw: Features an alloy steel jaw with a carburization treatment depth of 0.8-1.1mm and thorough quenching, providing enhanced tenacity and hardness. Equipped with a jaw cover to protect the rim.
-
Stainless Steel Mounting Head: The mounting head is crafted from stainless steel, treated and polished to conform to engineering mechanics, and includes a plastic cover to safeguard the rim.
-
Pedal-Controlled Inflation Gauge: Allows for precise control during tire inflation.
-
Protective Spade Cover: High-quality spade cover effectively prevents rim damage.
-
User-Friendly Pedal Control System: Pull-type pedal control system facilitates easy tire changing and maintenance.
-
High-Performance Motor: Equipped with a top-level motor featuring pure copper winding for increased power, rapid heat dissipation, lower defect rates, and extended service life.
-
Efficient Lubrication System: High-quality lubricator ensures reliable oil drop and effectively filters compressed air, extending the pneumatic system's lifespan.
Katool KT-B750 Wheel Balancer Features:
-
Automatic Measurement Ruler: Facilitates auto input of A and D values for enhanced efficiency.
-
Robust Construction: The body utilizes 3mm-thick steel with high strength, solid welding, and minimal vibration.
-
Integrated Pressure Sensor Support: Features an all-in-one pressure sensor support design with 8mm-thick bottom and side boards, ensuring stable operation and high precision.
-
High-Quality Motor: Equipped with a top-level motor with pure copper winding for increased power, rapid heat dissipation, lower defect rates, and extended service life.
-
Durable Shaft Thread: The 36mm shaft thread undergoes quenching treatment for enhanced strength.
-
Advanced Computer Board: Adopts advanced welding technology, making it moisture-proof, dust-proof, and anti-static for a longer lifespan.
-
Versatile Balance Modes: Offers various balance modes tailored to different rim types for precise balancing.
-
Built-In Diagnostics and Calibration: Includes built-in fault diagnosis and self-calibration programs with double-side calibration for ease of operation.
-
Unit Selection: Allows selection between Ounce/Gram and MM/Inch units.
-
Stable Power Board: High-quality integrated power board ensures stable and reliable operation.
-
Optional Wheel Guard: Provides an optional wheel guard for added safety.
-
Longer Shaft: Features a longer shaft to accommodate wider wheels.
Specifications
Tire Changer T830 Specifications:
- Max Wheel Diameter: 41"/1040mm
- Max Wheel Width: 15"/380mm
- Outside Clamp: 12"-24"
- Inside Clamp: 14"-26"
- Power Supply: 120V 1PH
- Motor Power: 2.0HP/1.5KW
- Rotation Speed: 6.8r/min
- Air Pressure: 0.8-1.0Mpa (116-145psi)
- Net weight: 240KG/529lbs
Wheel Balancer B750 Specifications:
- Rim Diameter:<30"
- Wheel Width:15"
- Wheel Diameter:<880mm
- Balancing Speed:180rpm
- Power Supply:120V 1PH
- Motor Power:0.25KW
- Rim Center Hole Dia.:<135mm
- Wheel Weight:<65KG
- Balancing Accuracy:±1g
- Measuring Time:7S
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
