Description

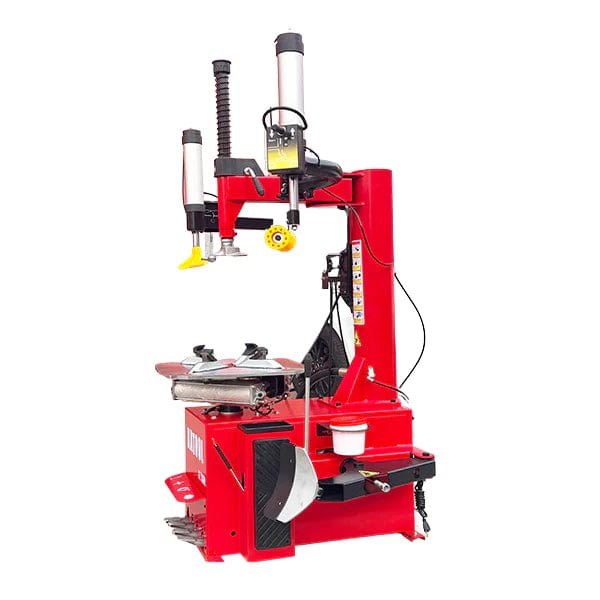

Our Katool KT-T830 Wheel Clamp Tire Changer is a powerhouse for changing tires with ease! Its tough alloy steel jaw and stainless steel mounting head are designed for durability. The pedal-controlled air gauge and spade cover keep things simple and protect your rims. With a user-friendly pedal system, top-notch motor, and efficient lubricator, it's a breeze to change tires. Tailored for North America with a strong 110V motor, it even comes with a double side assist arm and a stainless bead breaker cylinder.
Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- Inflation gauge with pedal control
- The high-quality spade cover effectively prevents the rim from being damaged

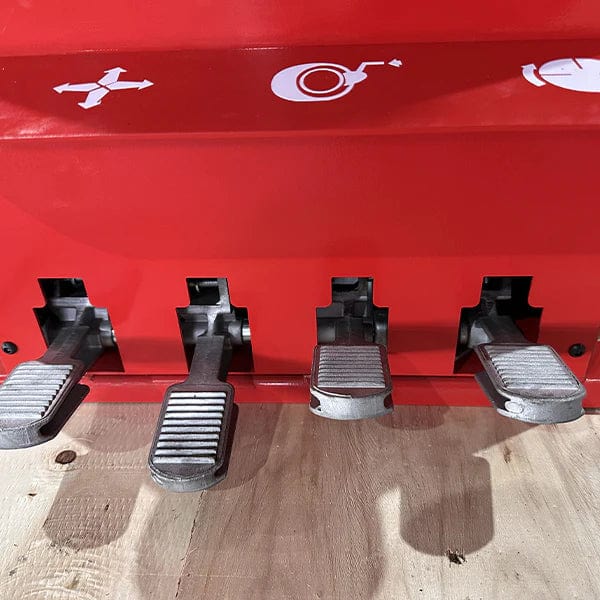

- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

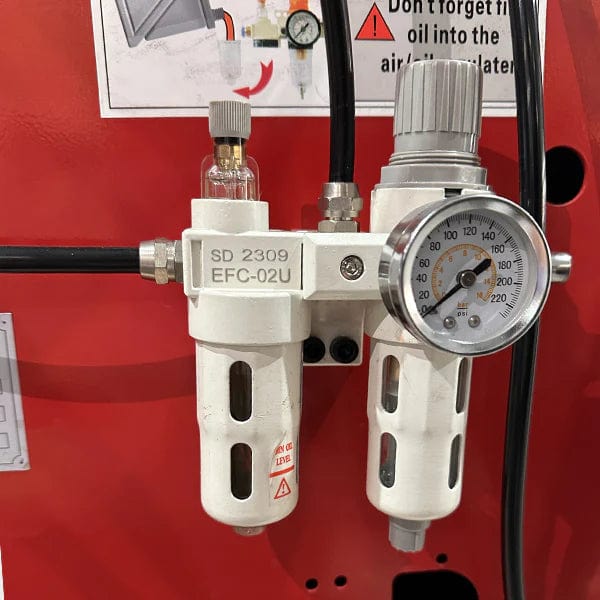

- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
- Bead blast seater head with post tank

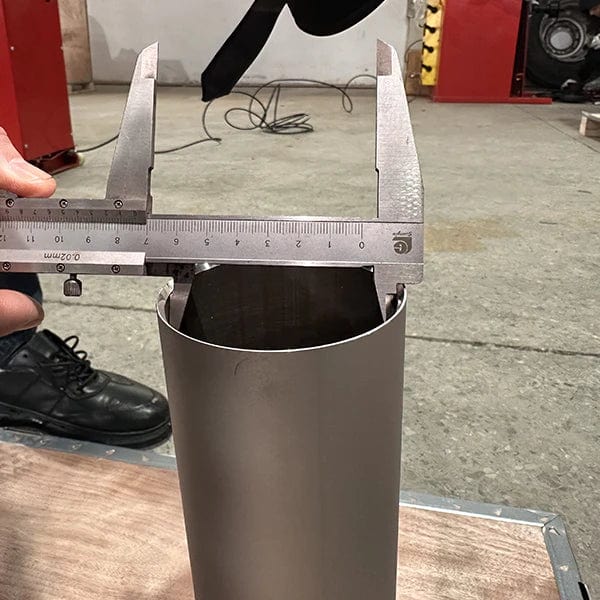

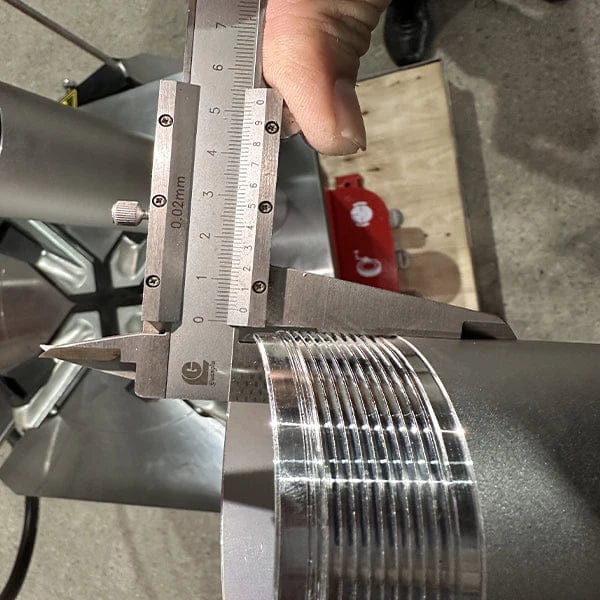

- 186mm / 7.32" stainless bead breaker cylinder
- Closed body for the protection of the parts inside

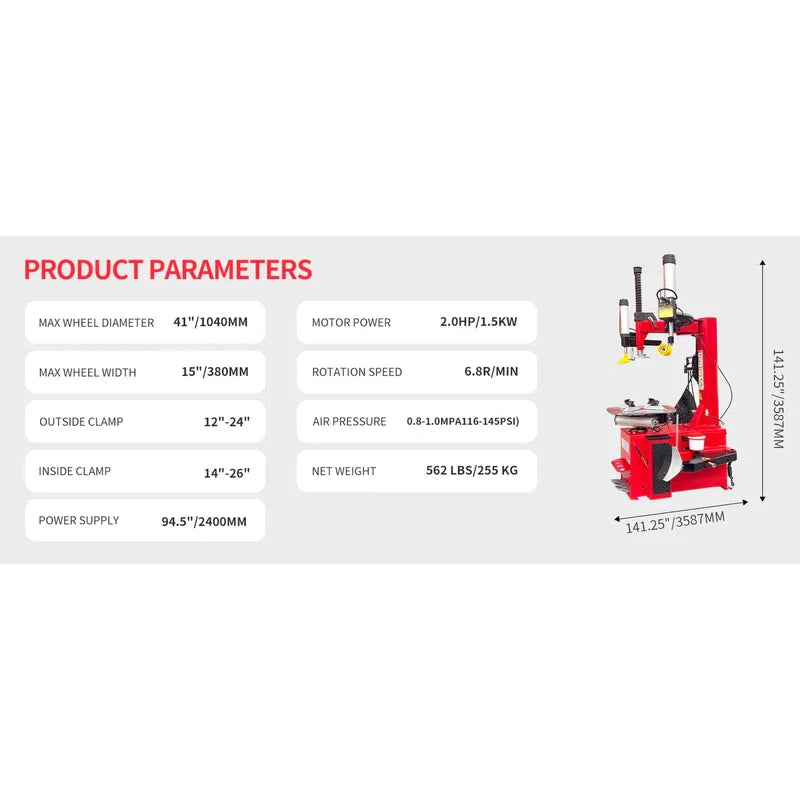

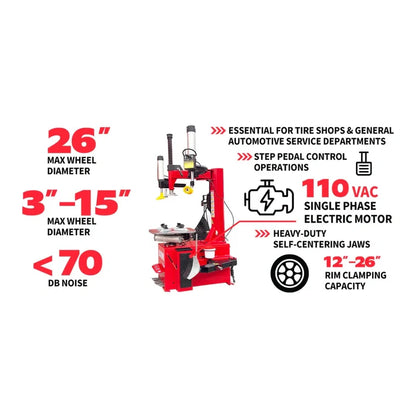

Specifications
| Max Wheel Diameter: |
41"/1040mm |
| Max Wheel Width: |
15"/380mm |
| Outside Clamp: |
12"-24" |
| Inside Clamp: |
14"-26" |
| Power Supply: |
120V 1PH |
| Motor Power: |
2.0HP/1.5KW |
| Rotation Speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa (116-145psi) |
| Net weight: |
240KG/529lbs |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
