Description
The Katool KT-T835 Wheel Clamp Tire Changer is the tire-changing maestro! Crafted with a sturdy alloy steel jaw and a stainless mounting head for maximum toughness. Its pedal-controlled air gauge, spade cover, and user-friendly pedal system ensure a smooth tire-changing experience. Equipped with a top-level motor and quality filter for durability and efficiency. Tailored for North America, it boasts a robust 110V motor, double side assist arm, and a stainless bead breaker cylinder. All housed in a closed body for ultimate part protection.
Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- The high-quality spade cover effectively prevents the rim from being damaged
- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended

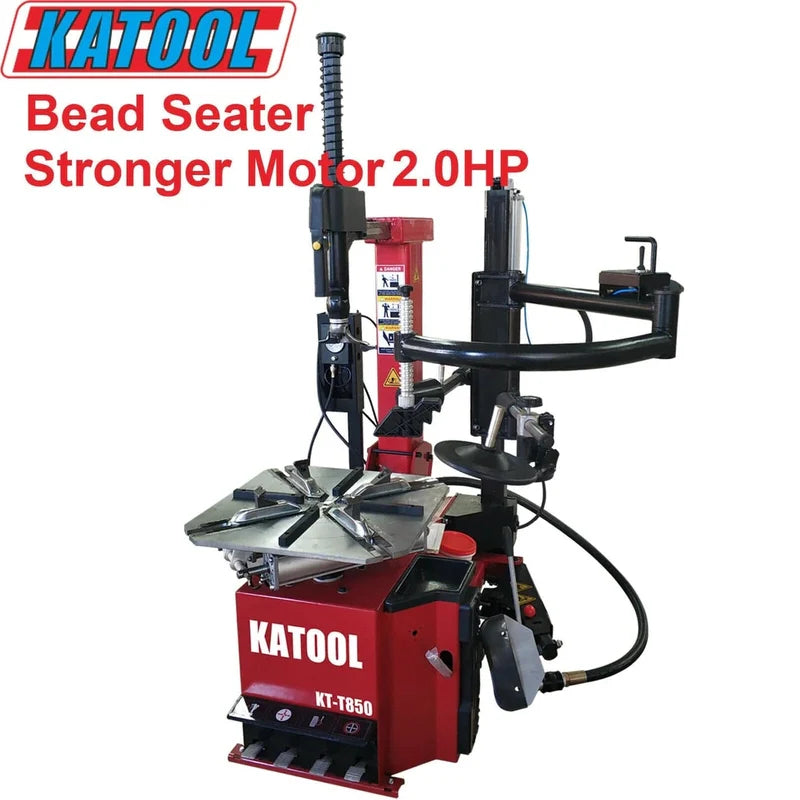

- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

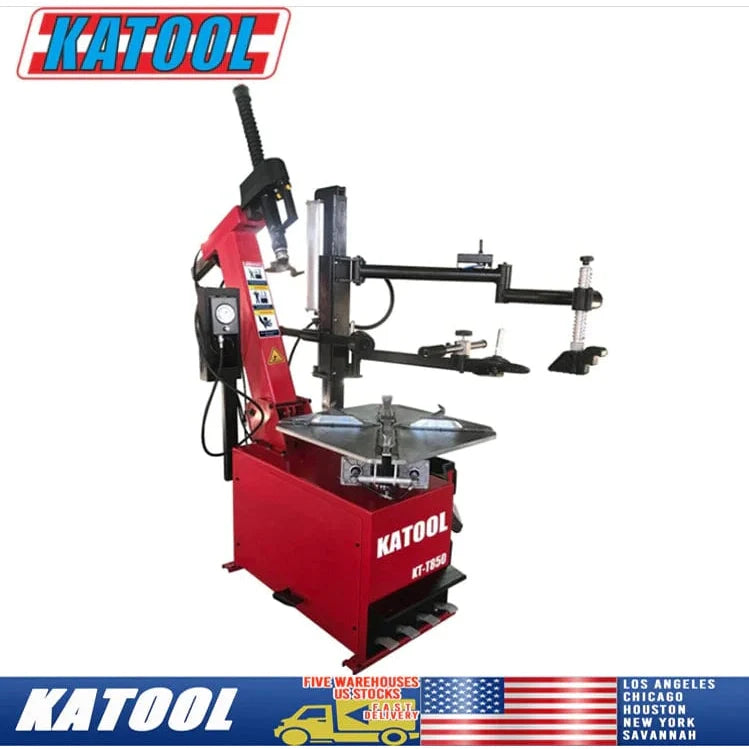

- Equipped with assist arms

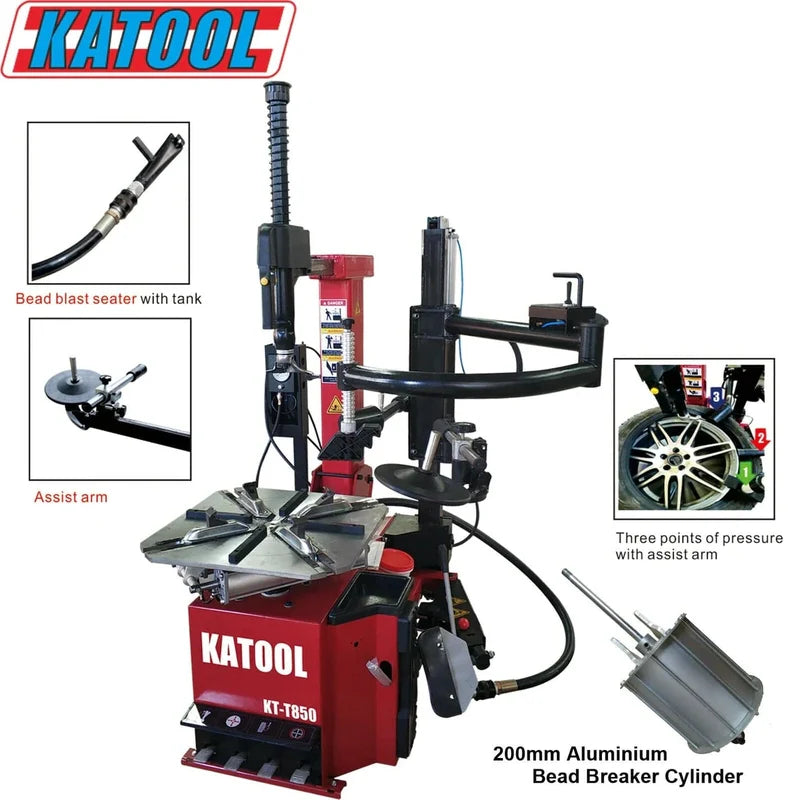

- 200mm aluminum bead breaker cylinder
Specifications
| Max Wheel Diameter: |
47"/1200mm |
| Max Wheel Width: |
15"/380mm |
| Outside Clamp: |
14"-26" |
| Inside Clamp: |
16"-28" |
| Power Supply: |
110V 1PH |
| Motor Power: |
2.0HP/1.5KW |
| Rotation Speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa(116-145psi) |
| Net weight: |
340KG / 750lbs |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
