Description

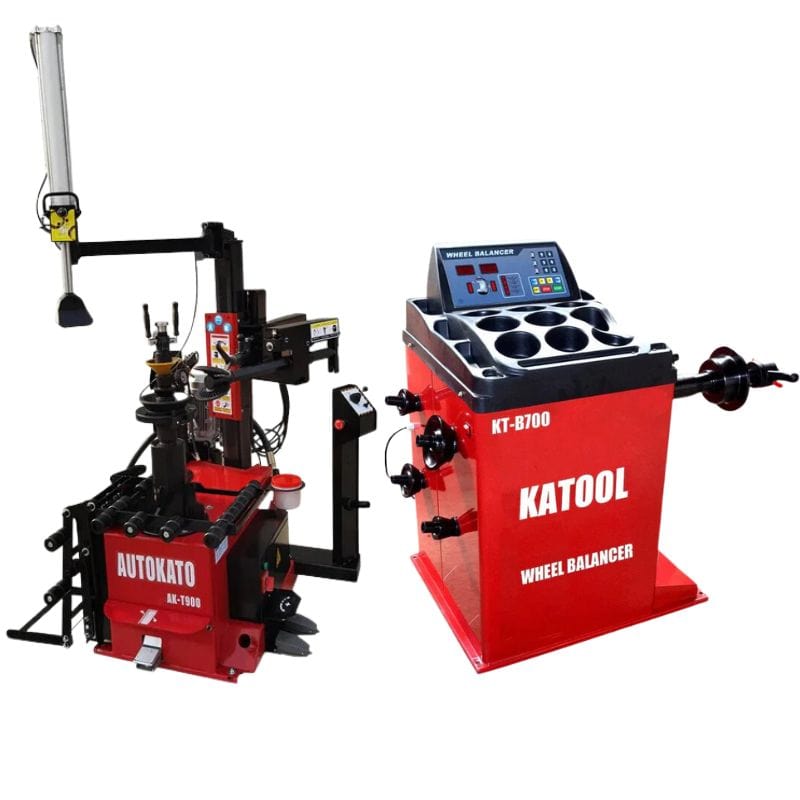

The Katool KT-T900 & KT-B700 Combo is the perfect solution for high-performance tire service, offering a fully hydraulic tire changer and a precision wheel balancer. This professional-grade package is designed for automotive repair shops, tire businesses, and enthusiasts who demand efficiency, durability, and ease of use.

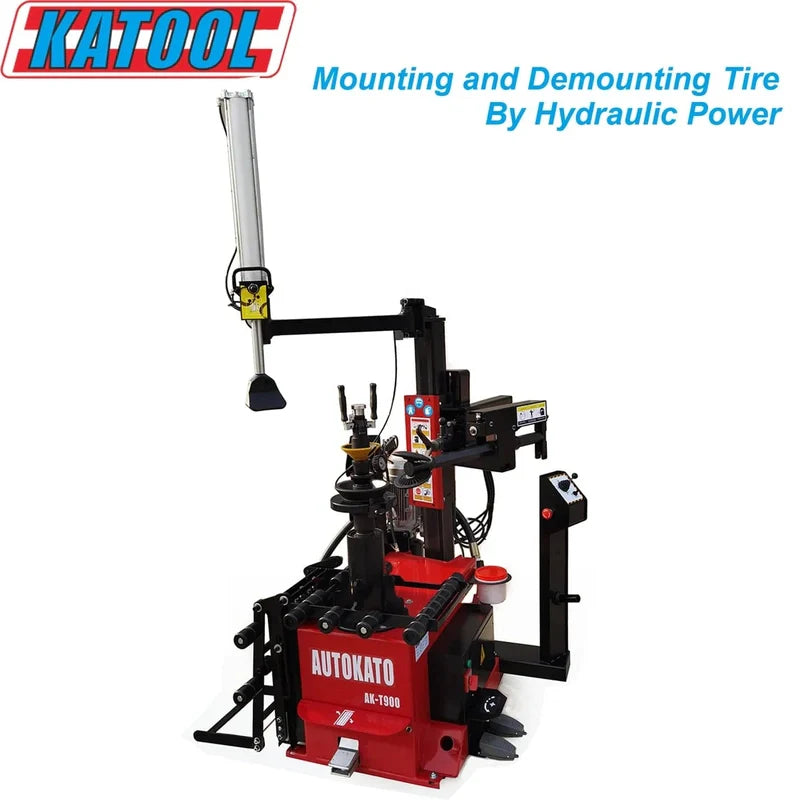

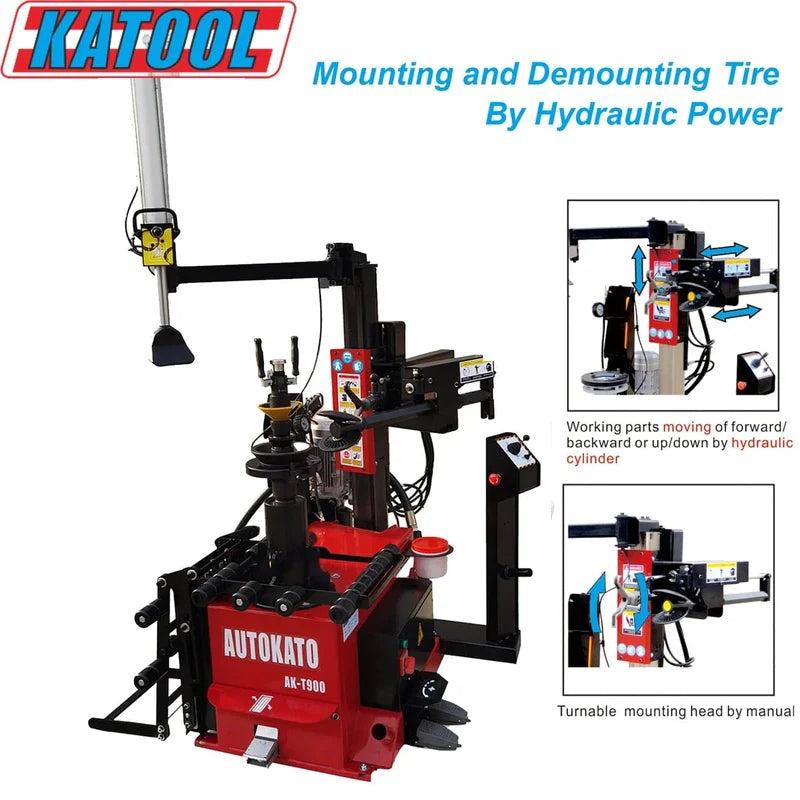

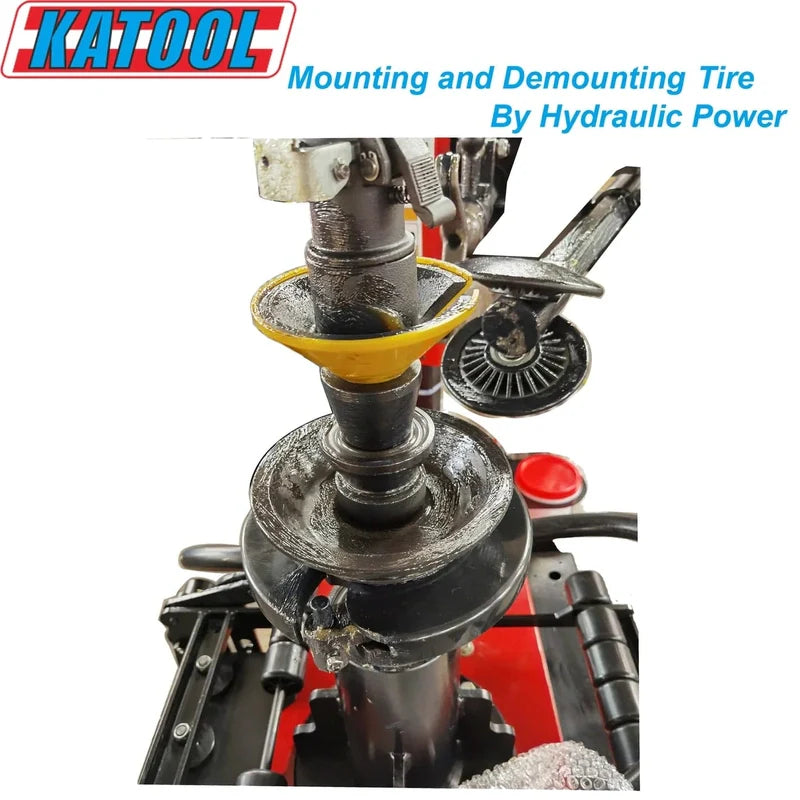

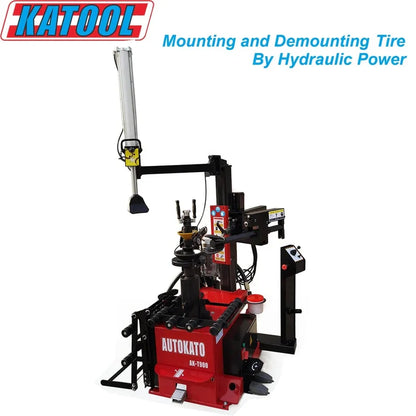

Katool KT-T900 Center Post Tire Changer

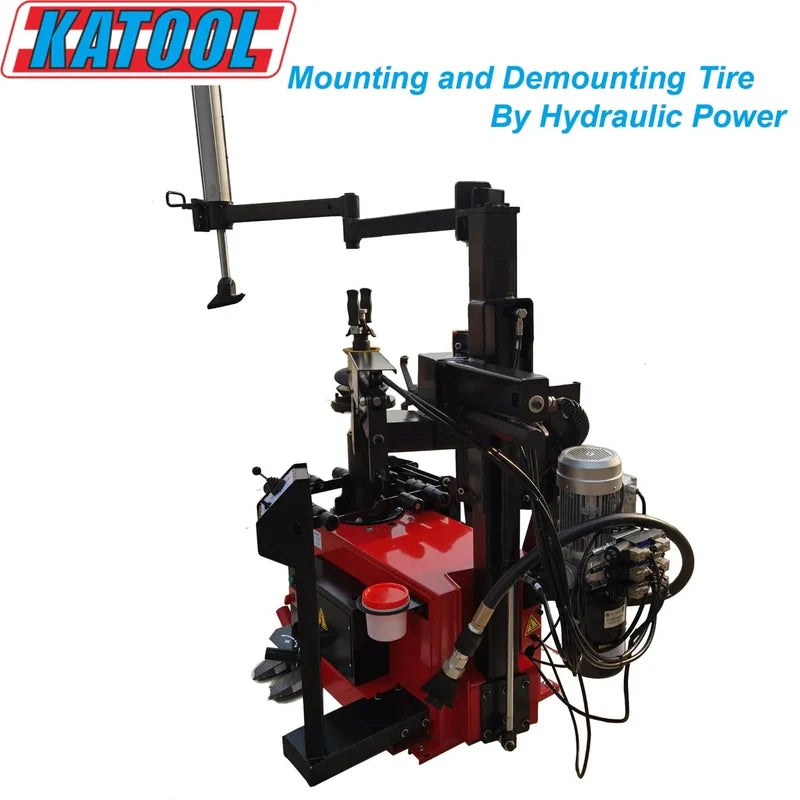

The Katool KT-T900 is a fully hydraulic tire changer engineered for effortless operation on all types of car wheels. It features a lever-less design, a stainless steel mounting head, and a built-in assist arm for tackling tough run-flat and low-profile tires. With a high-quality motor and a wheel lift assistant, it ensures a powerful, precise, and damage-free tire changing experience.
Features:
-
All-Hydraulic Power System: Works on all car wheels with superior precision.
-

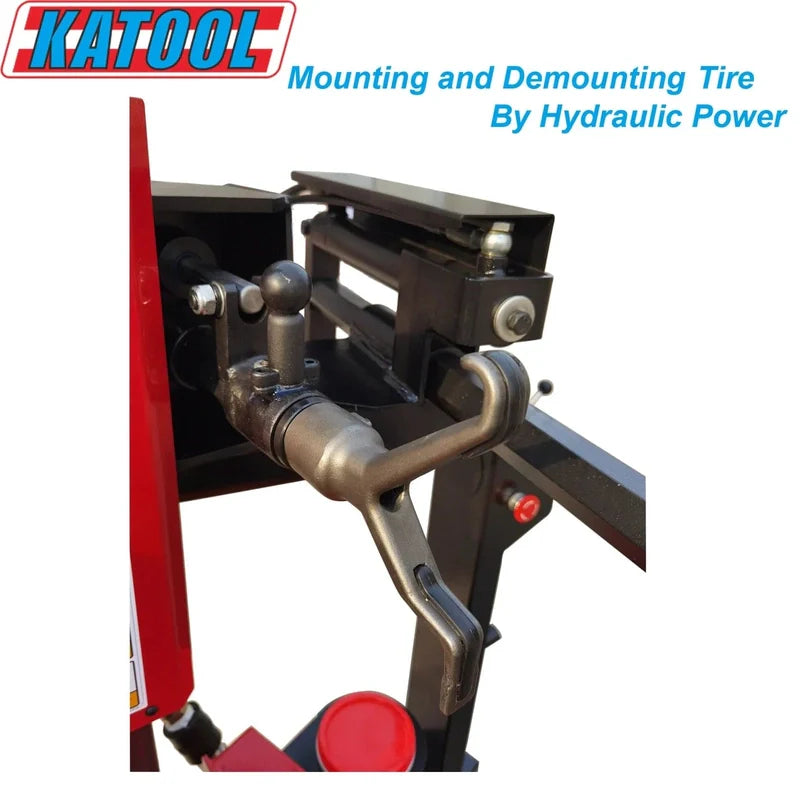

Built-in Top Assist Arm: Easily handles tough run-flat and low-profile tires.
-
Lever-Less Design: Stainless steel mounting head with plastic cover for rim protection.
-
Wheel Lift Assistant Device: Reduces strain and increases efficiency.
-
High-Quality Copper Motor: Ensures fast heat dissipation, increased power, and a lower defect rate.
-
Durable Air Filtration System: Extends the pneumatic system’s lifespan.
Specifications:
| Specification |
Value |
| Max Wheel Diameter |
47" (1200mm) |
| Max Wheel Width |
16" (406mm) |
| Wheel Clamp |
12"-30" |
| Power Supply |
110V / 1PH / 60Hz |
| Gearbox Motor Power |
1.5KW / 2HP |
| Hydraulic Power |
1.1KW / 1.5HP |
| Rotation Speed |
6.8 RPM |
| Air Pressure |
0.8-1.0 Mpa (116-145 PSI) |
| Net Weight |
188 KG (414 lbs) |

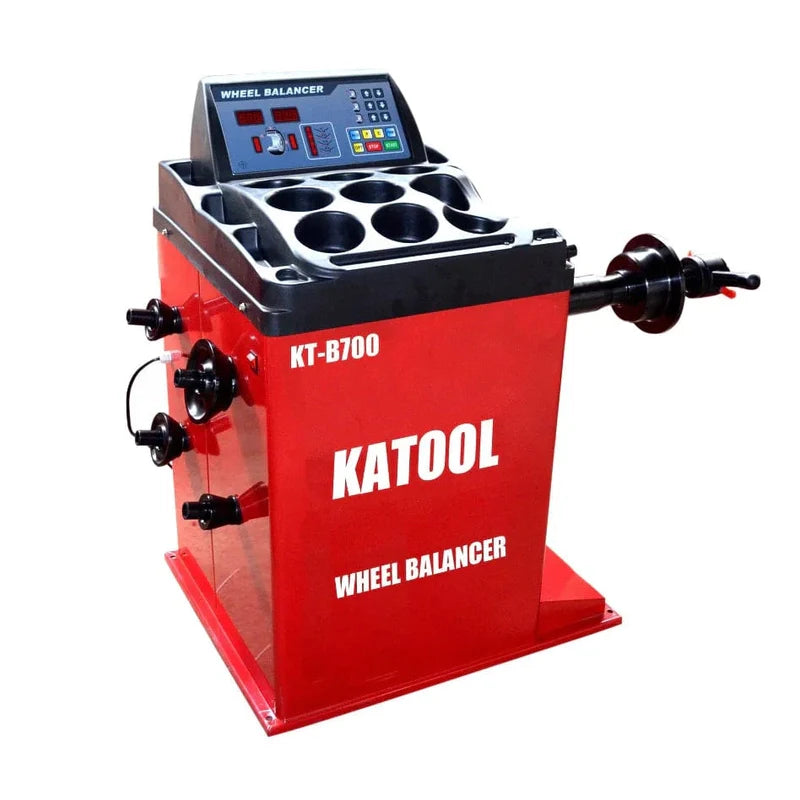

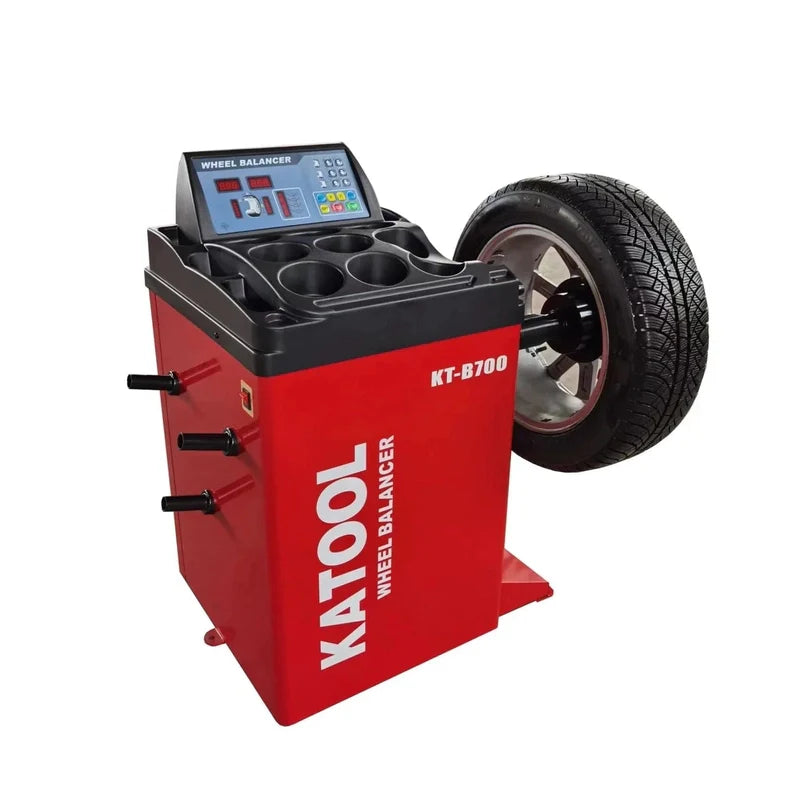

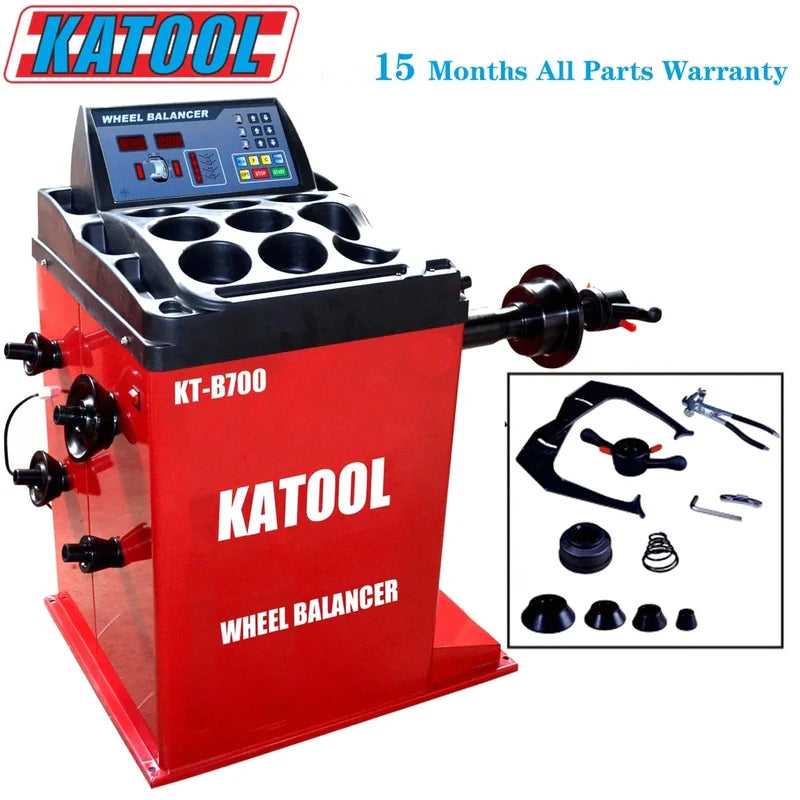

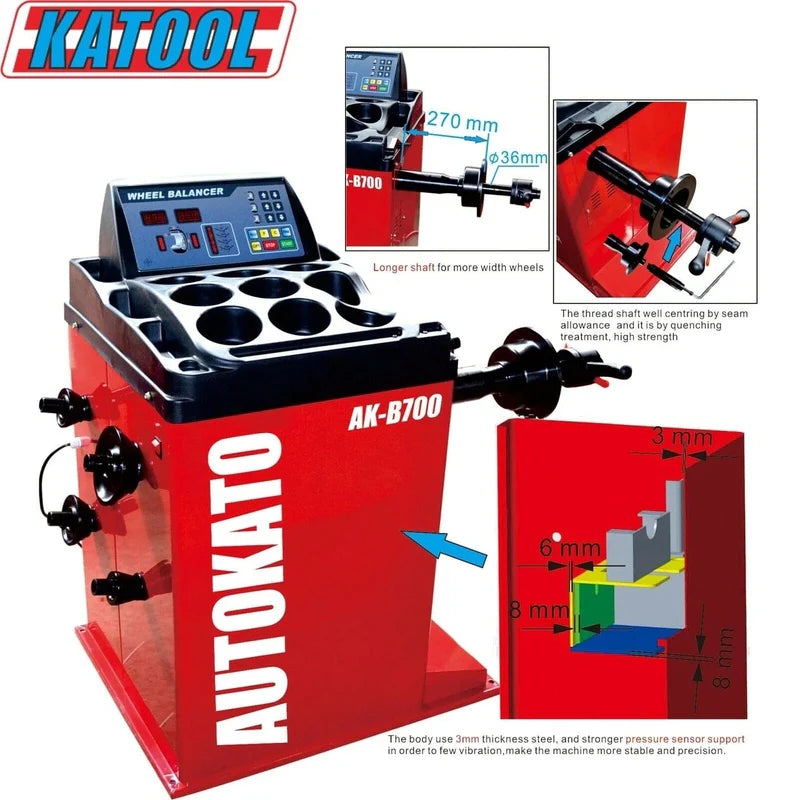

Katool KT-B700 Wheel Balancer

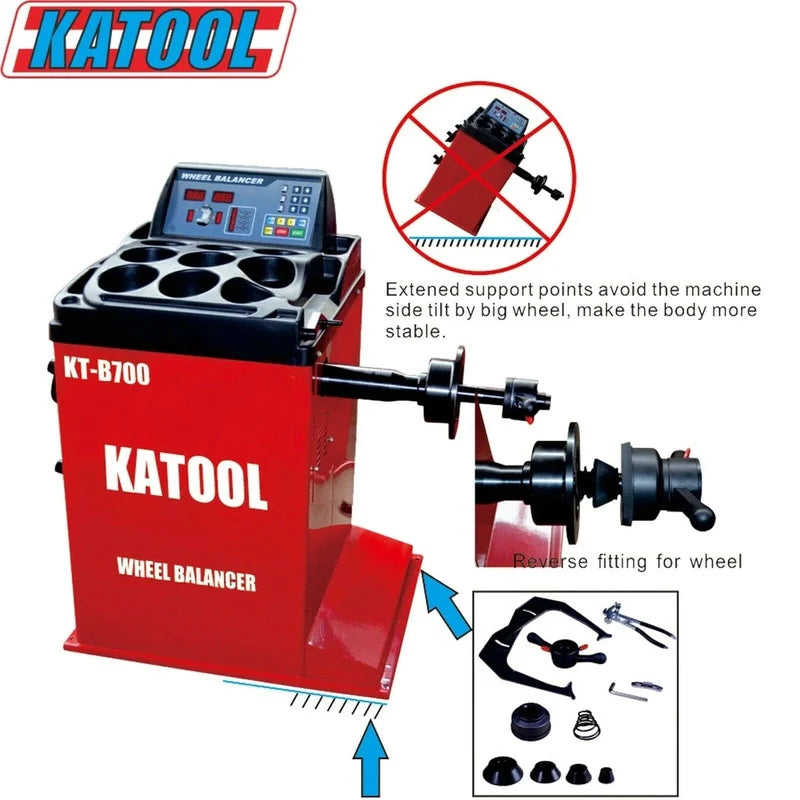

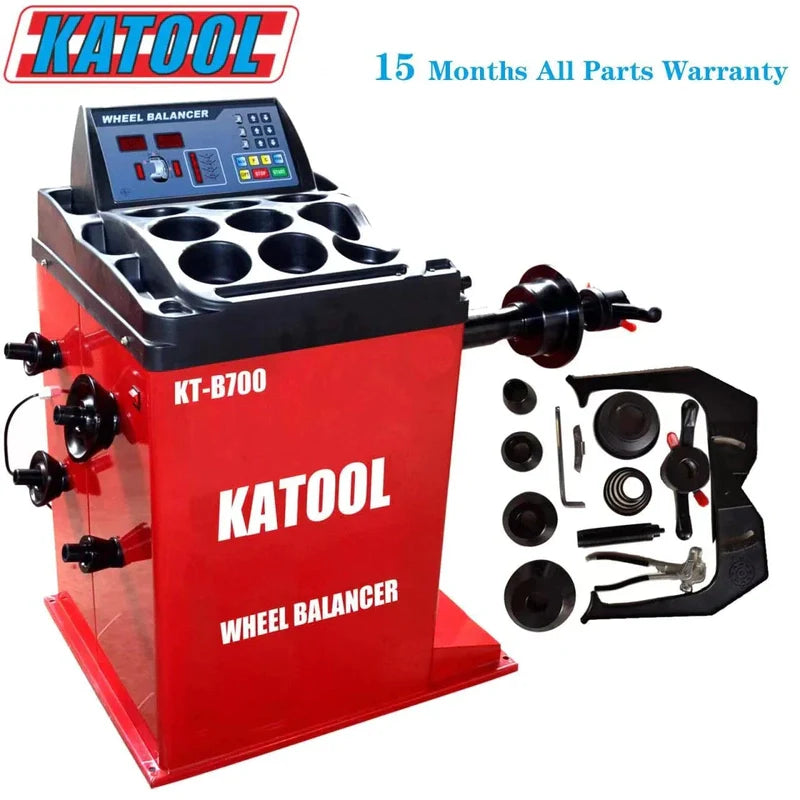

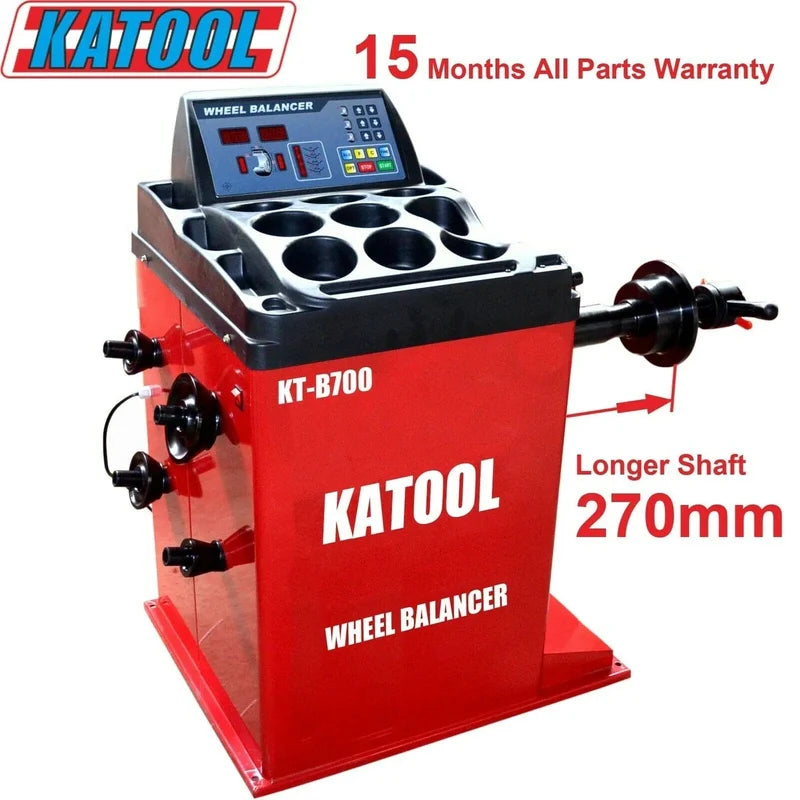

The Katool KT-B700 Wheel Balancer is a high-precision balancing machine, featuring a reinforced steel frame, an advanced sensor system, and multiple balance modes to deliver optimal performance.
Features:
-
3mm Thick Steel Body: Solid welding reduces vibrations for a stable balancing process.
-
All-in-One Pressure Sensor Support: 8mm-thick bottom and side boards ensure high precision.
-
Top-Level Motor with Copper Winding: Increases power and reduces heat buildup.
-

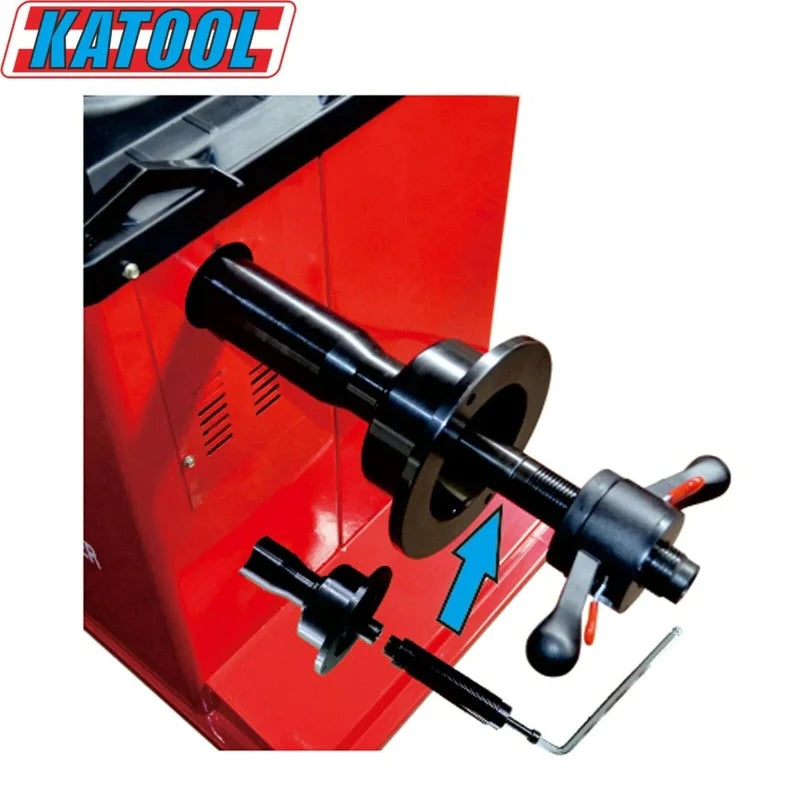

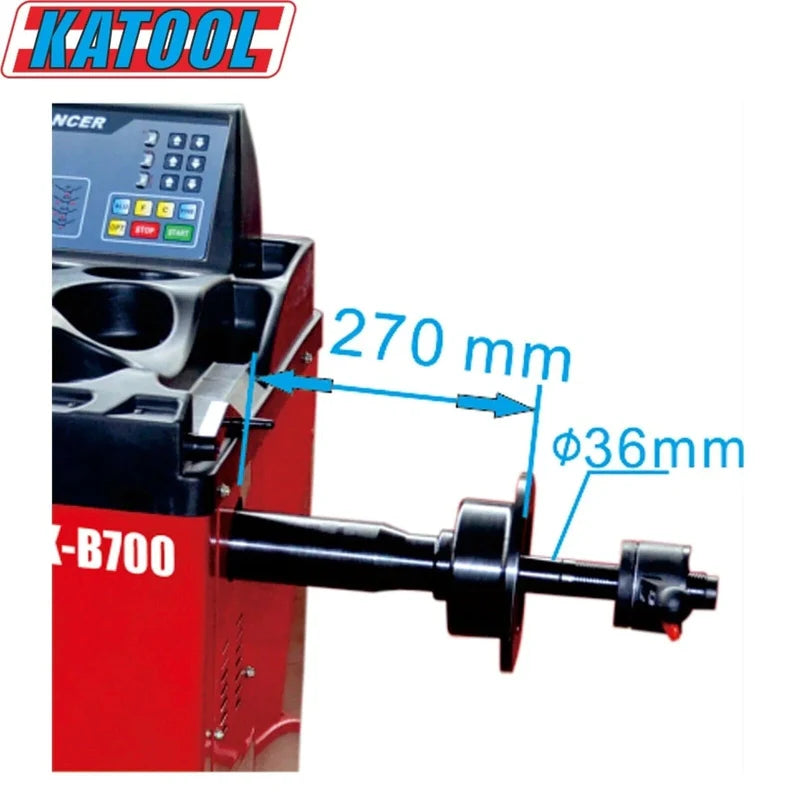

36mm Shaft Thread (Quenching Treated): Provides high strength and durability.
-
Advanced Control Board: Moisture-proof, dust-proof, and anti-static for longer life.
-
Multiple Balance Modes: Adapts to different rim types for precise balancing.
-
Self-Diagnosis & Calibration: No preset parameters needed, allowing for easy operation.
Specifications:
| Specification |
Value |
| Rim Diameter |
<30" |
| Wheel Width |
3"-12" |
| Max Wheel Diameter |
<880mm / 34.64" |
| Balancing Speed |
180 RPM |
| Power Supply |
120V 1PH |
| Motor Power |
0.25KW |
| Rim Center Hole Diameter |
<135mm / 5.31" |
| Max Wheel Weight |
<65 KG / 143 lbs |
| Balancing Accuracy |
±1g |
| Measuring Time |
7 seconds |
Manuals & Resources
Download the user manuals for both machines:
