Description

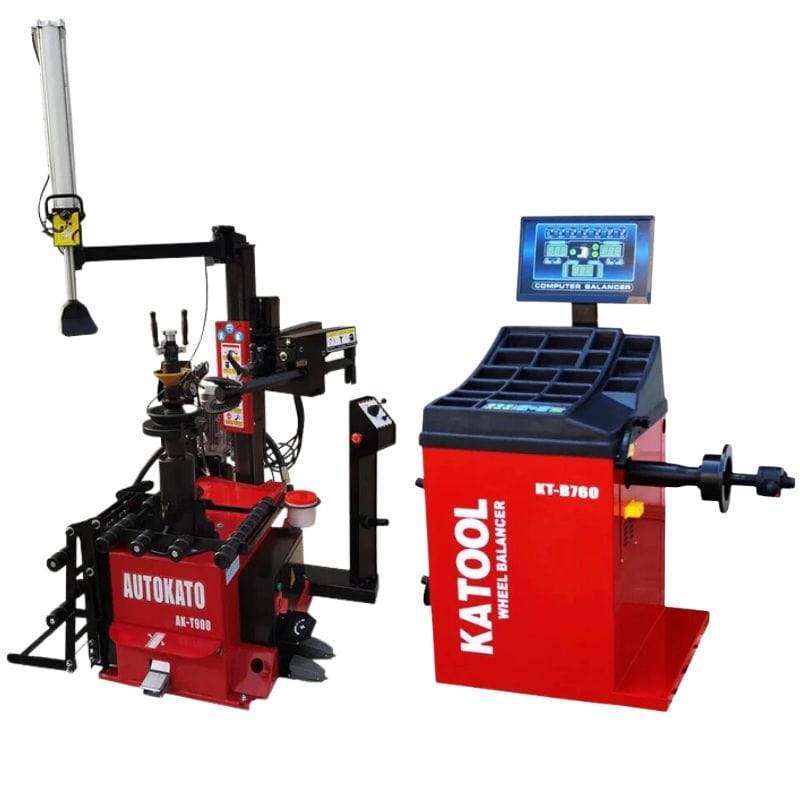

The Katool KT-T900 & KT-B760 Combo is a professional-grade package designed for effortless tire changing and precision wheel balancing. This combo is ideal for automotive shops, tire service centers, and performance garages, delivering maximum efficiency and reliability.

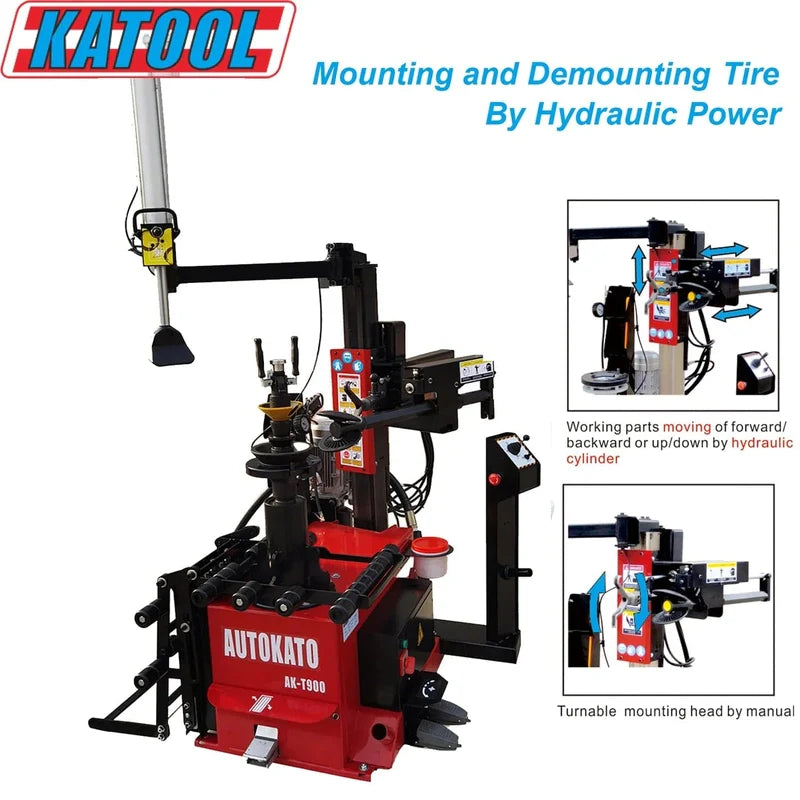

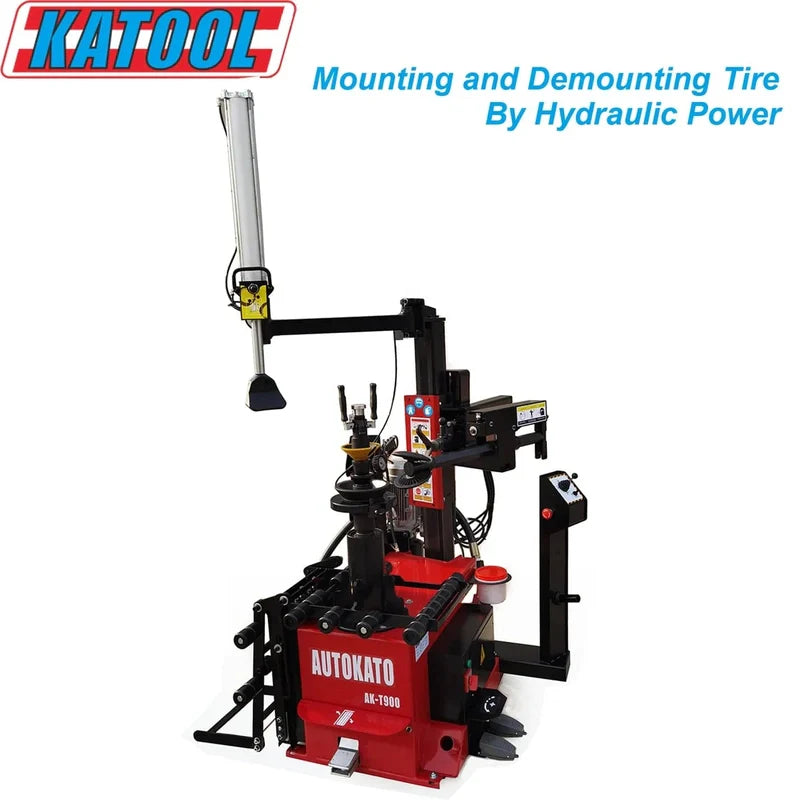

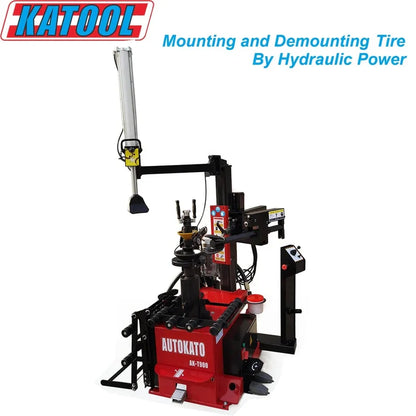

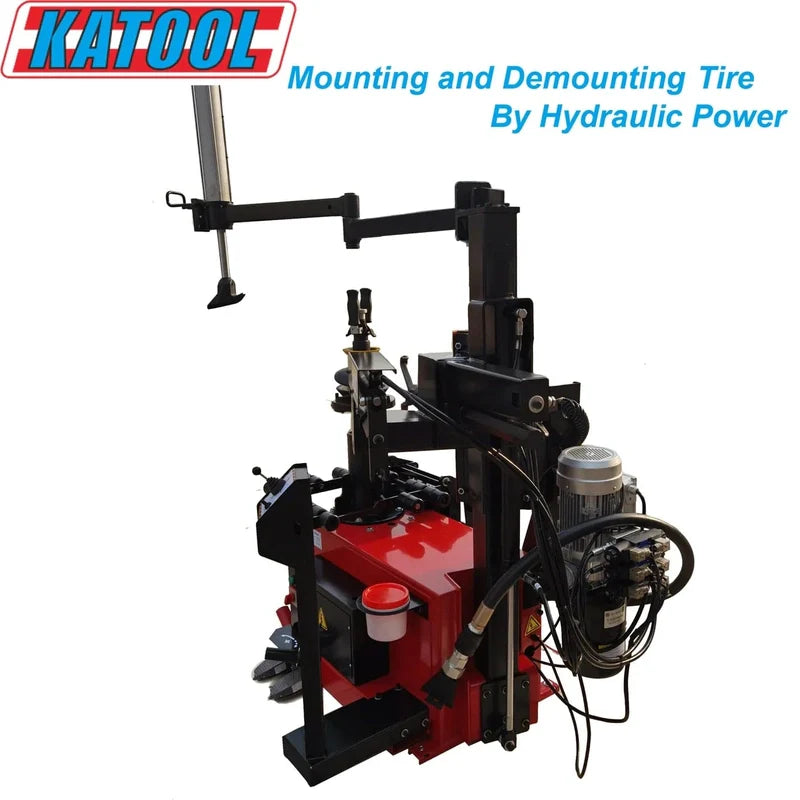

Katool KT-T900 Center Post Tire Changer
The Katool KT-T900 is a fully hydraulic tire changer designed to handle all types of car wheels with ease. Featuring a lever-less design, stainless steel mounting head, and a built-in assist arm, it ensures a smooth, damage-free operation. Equipped with a high-quality motor and a wheel lift assistant, it delivers a powerful and precise tire changing experience.
Features:
-
Hydraulic Power System: Handles all car wheels with superior precision.
-

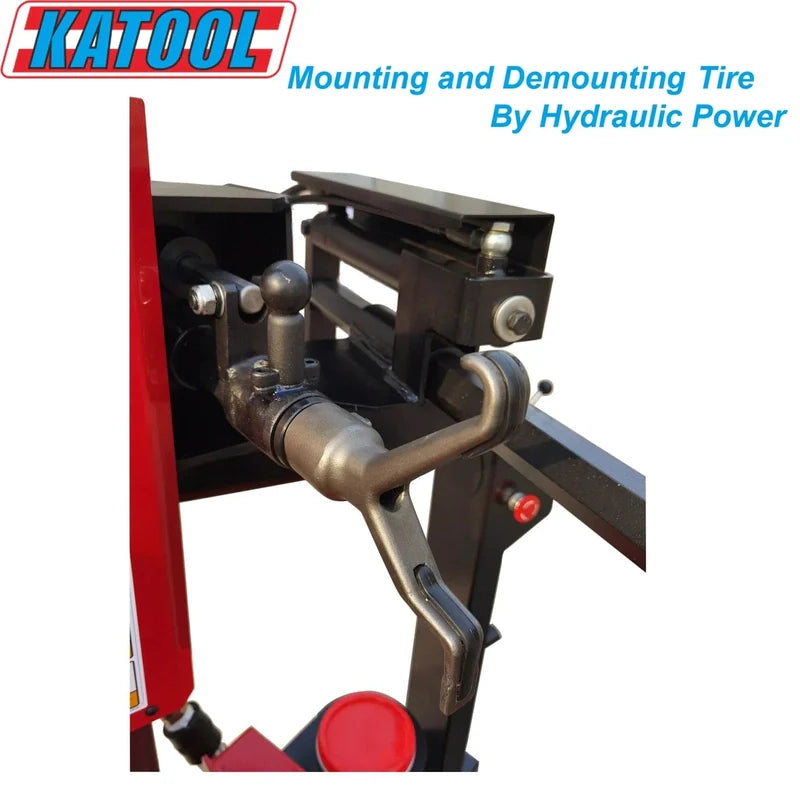

Built-in Assist Arm: Makes run-flat and low-profile tire changes easier.
-
Lever-Less Mounting System: Stainless steel mounting head with plastic cover for rim protection.
-
Wheel Lift Assistant: Reduces manual effort for a smoother workflow.
-
High-Quality Copper Motor: Ensures fast heat dissipation and long-lasting performance.
-
Advanced Air Filtration: Extends the pneumatic system’s service life.
Specifications:
| Specification |
Value |
| Max Wheel Diameter |
47" (1200mm) |
| Max Wheel Width |
16" (406mm) |

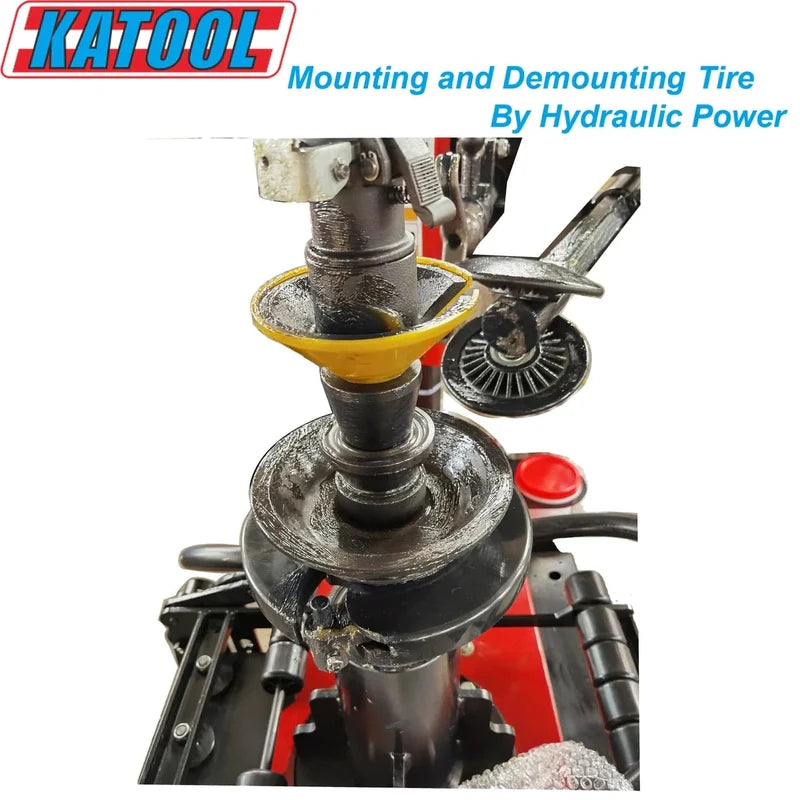

| Wheel Clamp |
12"-30" |
| Power Supply |
110V / 1PH / 60Hz |
| Gearbox Motor Power |
1.5KW / 2HP |
| Hydraulic Power |
1.1KW / 1.5HP |
| Rotation Speed |
6.8 RPM |
| Air Pressure |
0.8-1.0 Mpa (116-145 PSI) |
| Net Weight |
188 KG (414 lbs) |

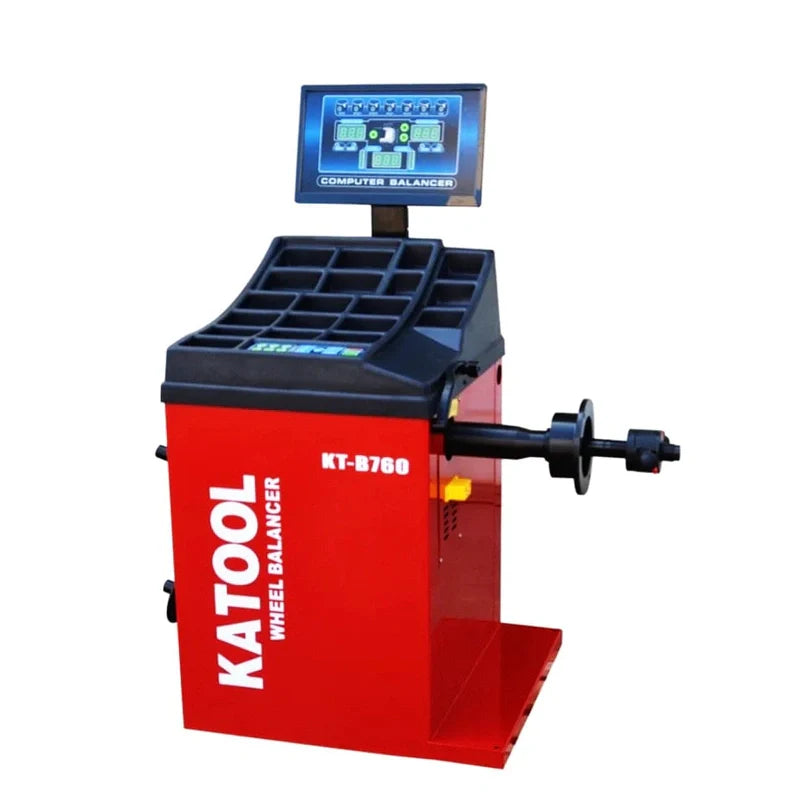

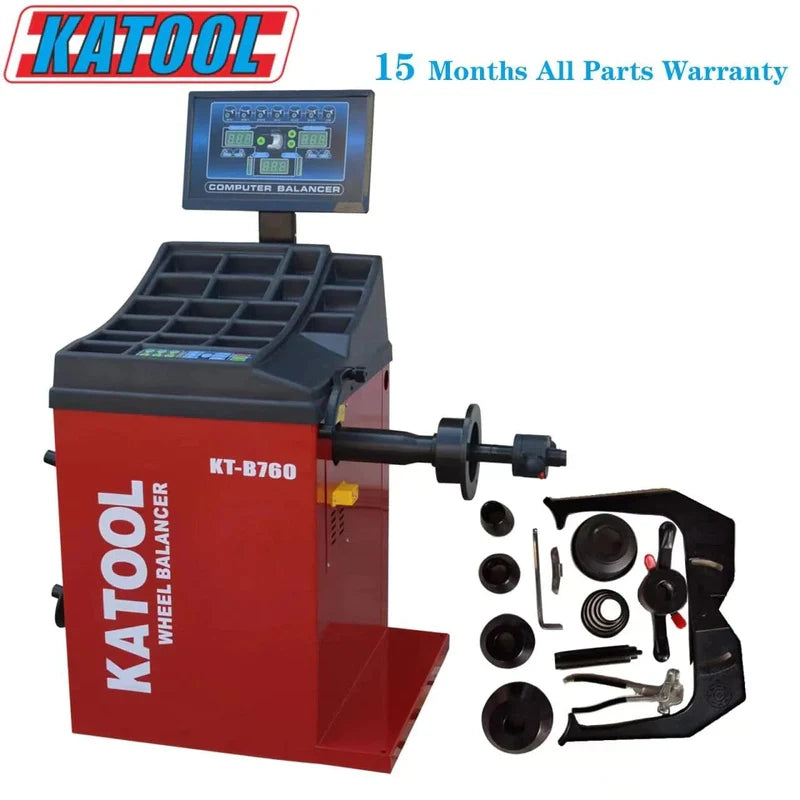

Katool KT-B760 Wheel Balancer
The Katool KT-B760 Wheel Balancer is a high-precision balancing machine with a reinforced steel body, advanced sensor system, and multiple balance modes to deliver superior results.
Features:
-
Heavy-Duty Steel Construction: 3mm thick steel reduces vibrations for greater stability.
-
High-Precision Sensor System: 8mm-thick bottom and side boards ensure accuracy.
-
Powerful Motor with Copper Winding: Optimized for efficiency and longevity.
-
36mm Shaft Thread (Quenching Treated): Provides added strength and durability.
-
Advanced Control Board: Moisture-proof, dust-proof, and anti-static for extended service life.
-
Multiple Balance Modes: Adapts to different rim types for precision balancing.
-
Self-Diagnosis & Calibration: Eliminates pre-set parameters for easy operation.
Specifications:
| Specification |
Value |
| Rim Diameter |
<30" |
| Wheel Width |
3"-12" |
| Max Wheel Diameter |
<880mm / 34.64" |
| Balancing Speed |
180 RPM |
| Power Supply |
110V 1PH |
| Motor Power |
0.25KW |
| Rim Center Hole Diameter |
<135mm / 5.31" |
| Max Wheel Weight |
<65 KG / 143 lbs |
| Balancing Accuracy |
±1g |
| Measuring Time |
7 seconds |
Manuals & Resources
Download the user manuals for both machines:
