Description

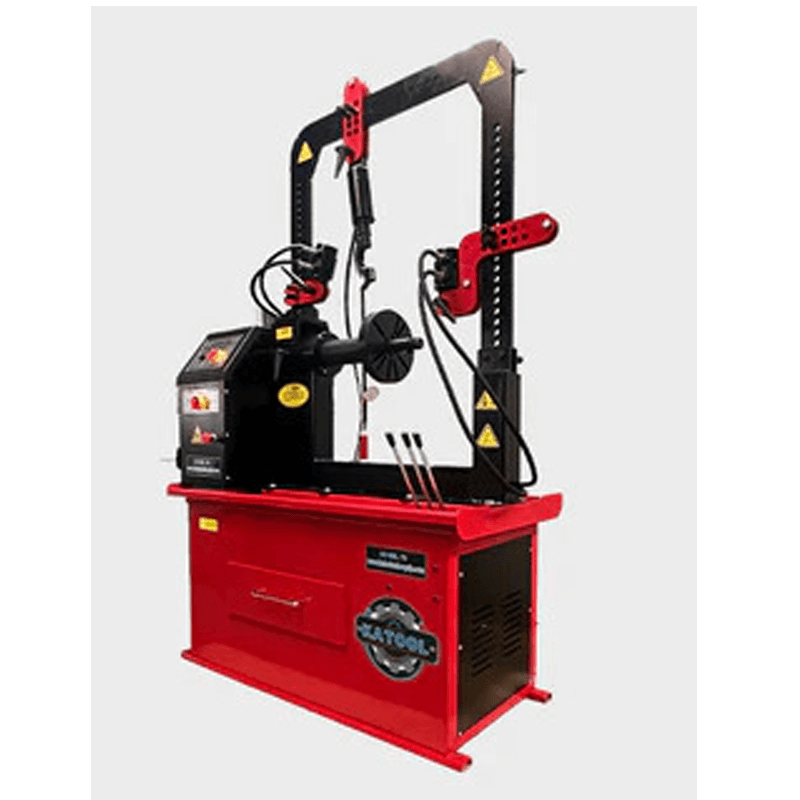

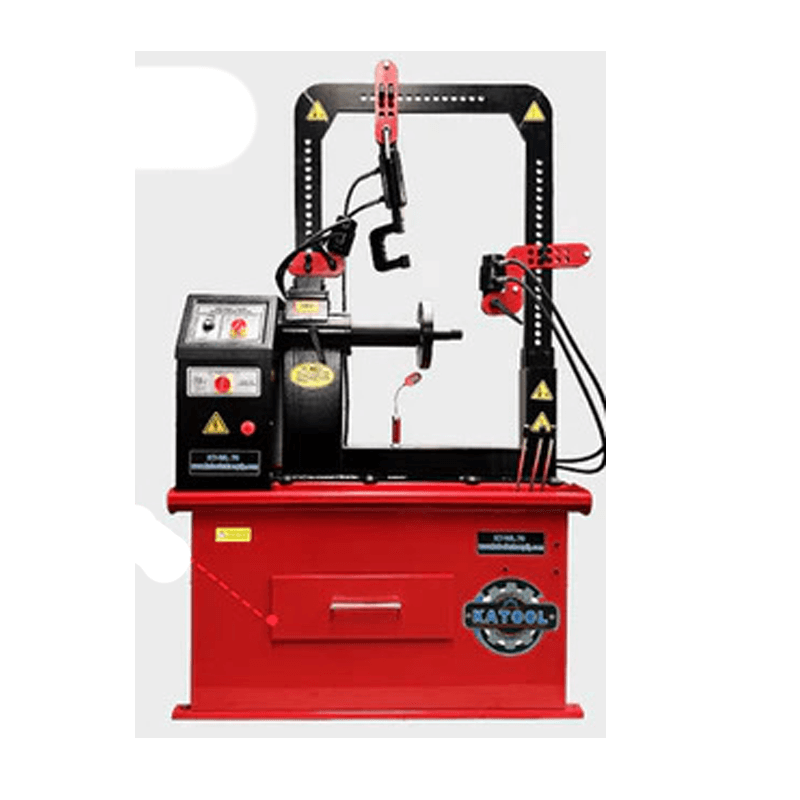

The Katool KT-WL70 Rim Straightening Machine is a professional-grade solution designed to restore bent or damaged wheels to their original shape with precision and efficiency. Ideal for automotive workshops and wheel repair specialists, this machine accommodates a wide range of wheel sizes and ensures high-quality results.
Features
-
Versatile Wheel Compatibility: Handles rims with a working limit diameter of up to 26 inches, a maximum wheel diameter of 30 inches, and a maximum wheel width of 21.6 inches, making it suitable for various vehicle types.
-
Powerful Performance: Equipped with a 15KW motor and operating at a working pressure of 15MPA, the KT-WL70 delivers robust performance for efficient wheel straightening.
-
Durable Construction: Weighing 573.2 lbs (260 kg), this machine is built with high-quality materials to ensure longevity and reliable operation under frequent use.
-
Quiet Operation: Designed to operate at noise levels below 79 dB, providing a comfortable working environment.
-

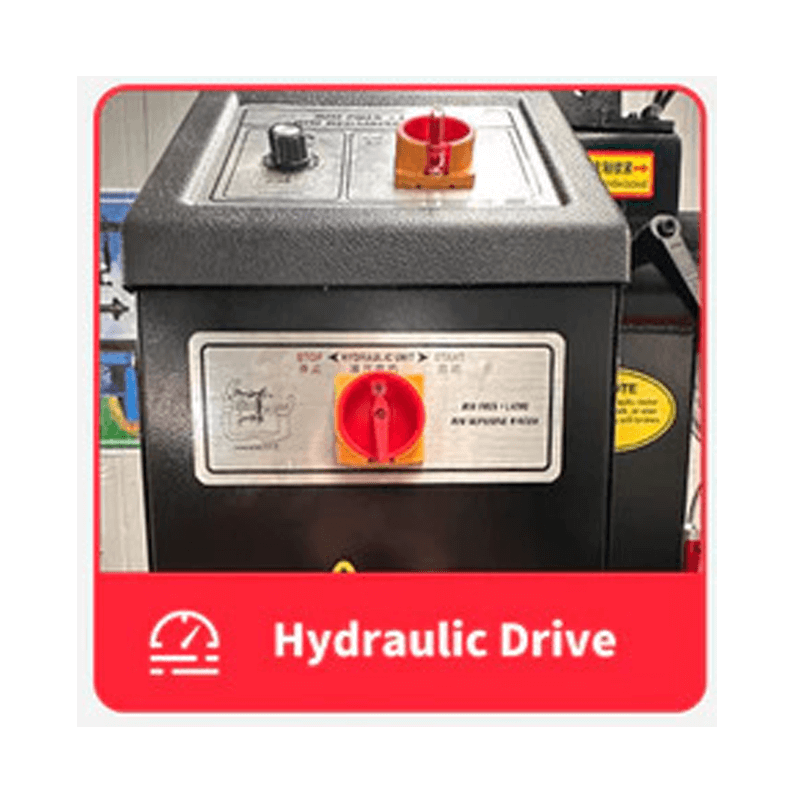

Hydraulic Drive System: Features an automatic hydraulic drive for smooth and controlled operation during the straightening process.
-

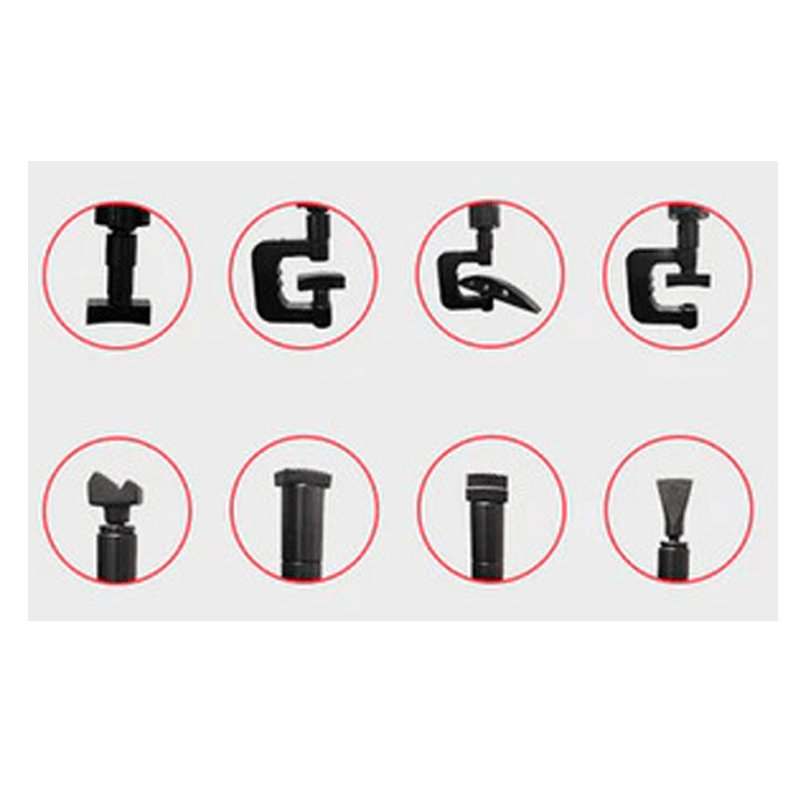

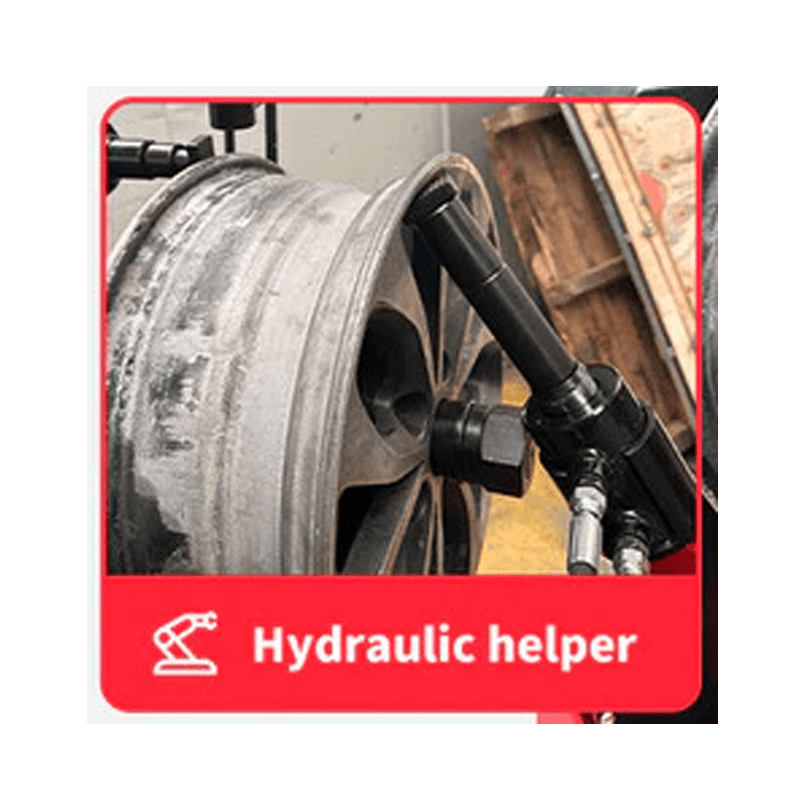

User-Friendly Design: Incorporates easy controls and adjustable assist arms and fixtures, allowing for quick and precise adjustments, enhancing overall usability.
Specifications
- Working Limit Diameter: 26"
- Max Wheel Diameter: 30"
- Max Wheel Width: 21.6"
- Work Pressure: 15MPA
- Power: 15KW
- Power Supply: 220V/380V
- Weight: 260KG/573.2LBS
- Noises: <79DB
- Package Size: 40"x19.5" x 55"
- Oil: AW-46 or AW-32 (colder climates)
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
