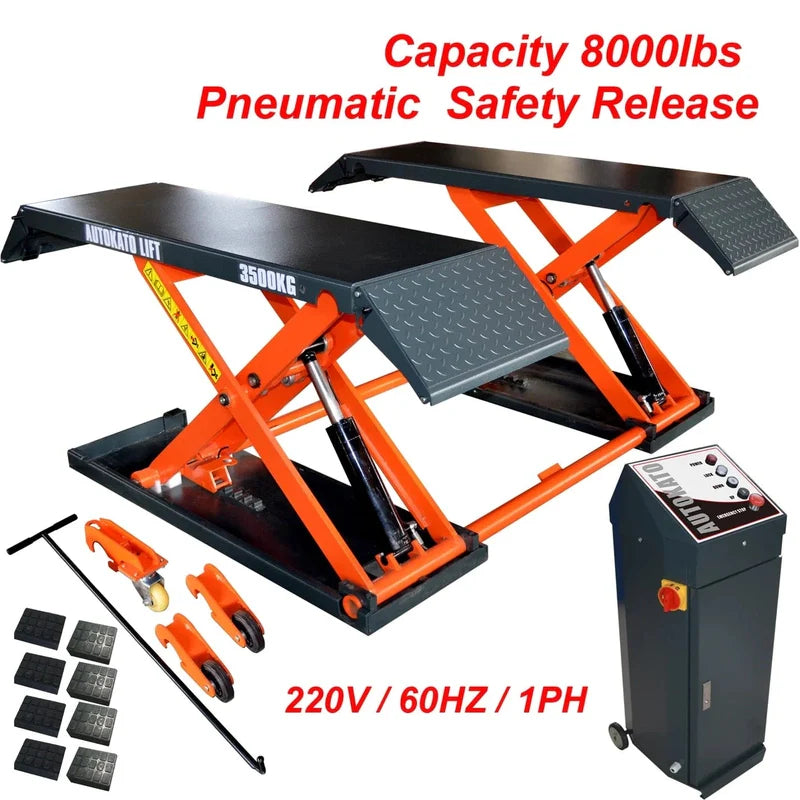

The Katool KT-X80-PNEUMATIC Mid Rise Scissor Lift is a powerhouse with an 8000lbs lifting capacity. CE Approved and Certified, it surpasses dynamic and static loading standards, ensuring robustness and safety. Whether mobile or fixed mount, its innovative starting-up system and pneumatic safety release offer seamless operation. The 24V safe control system, height limit switch, and composite rubber lifting blocks prioritize user safety. With drive-up ramps lock design for extended platform length and a portable kit for effortless mobility, this lift is tailored for garage flexibility. Experience top-level hydraulic performance with an aluminum motor featuring a cooling fan for prolonged usage. Note: Connect to a compressed air source for optimal performance.
Features
- 8000lbs(3500KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Mobile or fixed mount design

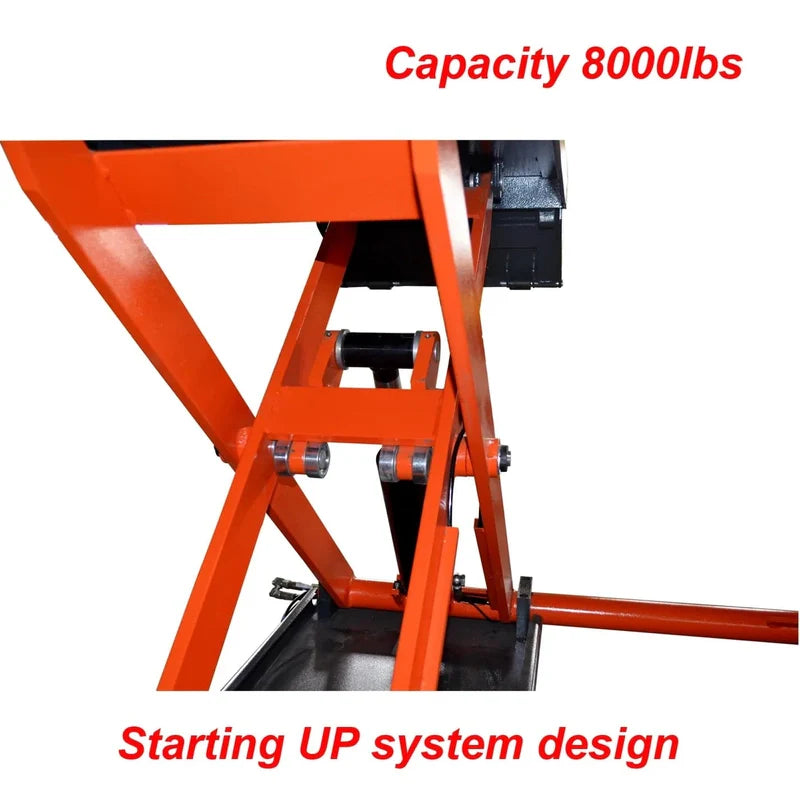

- Starting-up system design
- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing

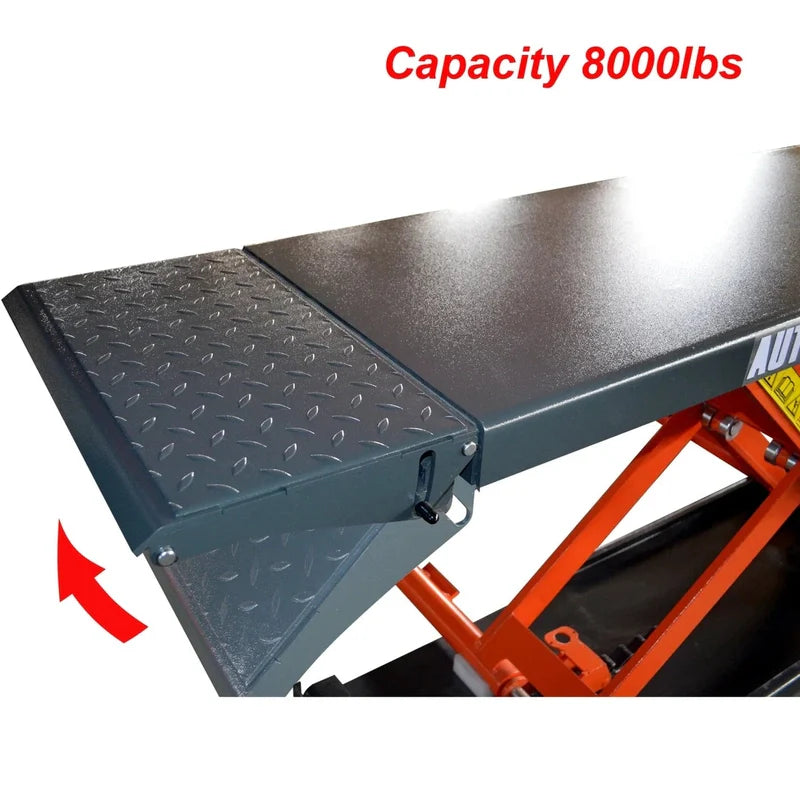

- Drive-up ramps lock design as platform extension for long vehicles
- Portable, mobile kit included making the lift move in your garage easily
- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH
- The unit need to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.

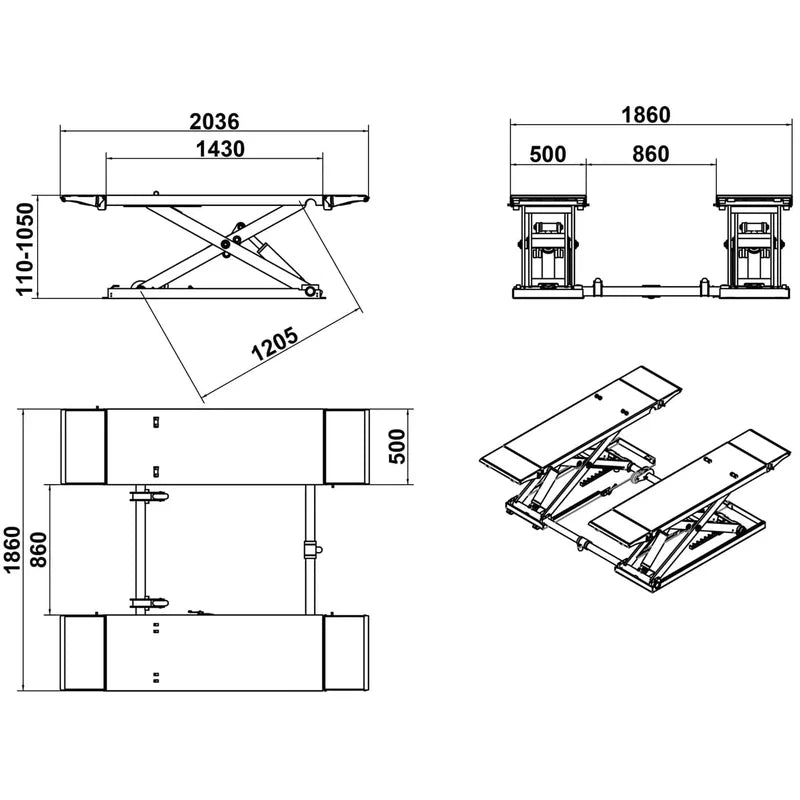

Specifications
| Lifting Capacity |
8000lbs.(3500KG) |
| Max. Lifting Height |
41.25"/1050mm |
| Min. Height |
4.25"/110mm |
| Platform Length |
56.25"/1430mm |
| Length Overall |
80"/2036mm |
| Platform Width |
19.5"/500mm |
| Width Overall |
73.25"/1860mm |
| Motor |
110/220VAC/60HZ/1PH |
| Net Weight |
1213lbs/550KG |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
