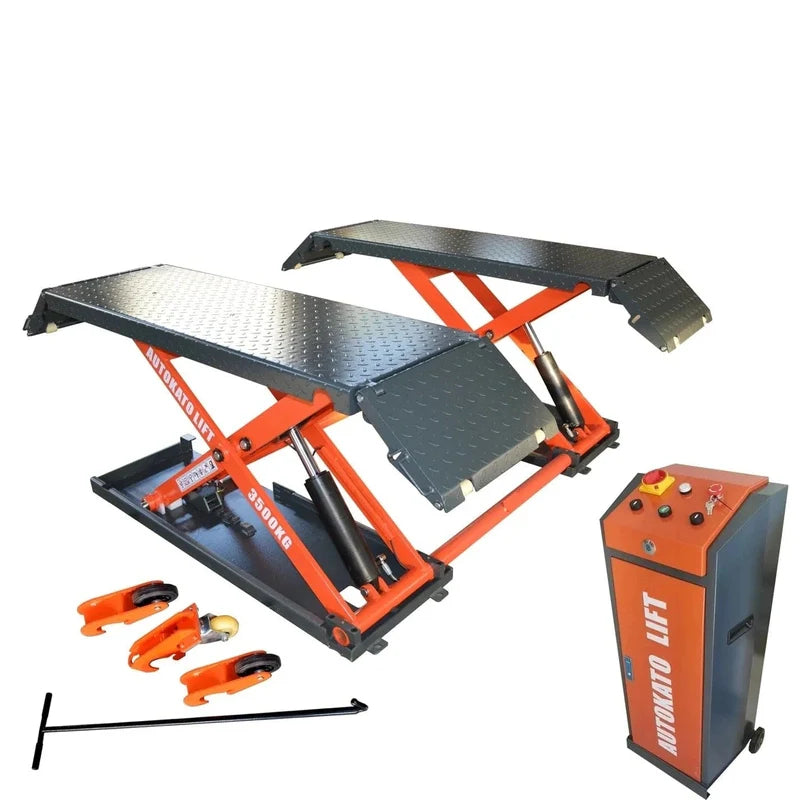

The Katool KT-X85-ELECTRIC Mid Rise Scissor Lift is engineered for excellence with an impressive 8000lbs lifting capacity. Boasting CE Approval and Certification, it not only meets but exceeds dynamic and static loading standards, ensuring superior performance and safety. With a versatile mobile or fixed mount design, innovative starting-up system, and electric safety release, this lift offers unparalleled convenience. The 24V safe control system, height limit switch, and composite rubber lifting blocks prioritize user safety. Its drive-up ramps lock design extends the platform for longer vehicles, while the included portable kit guarantees effortless mobility. Experience top-level hydraulic efficiency with an aluminum motor featuring a cooling fan, designed for prolonged use with 110(220)V/ 60HZ/ 1PH power.
Features

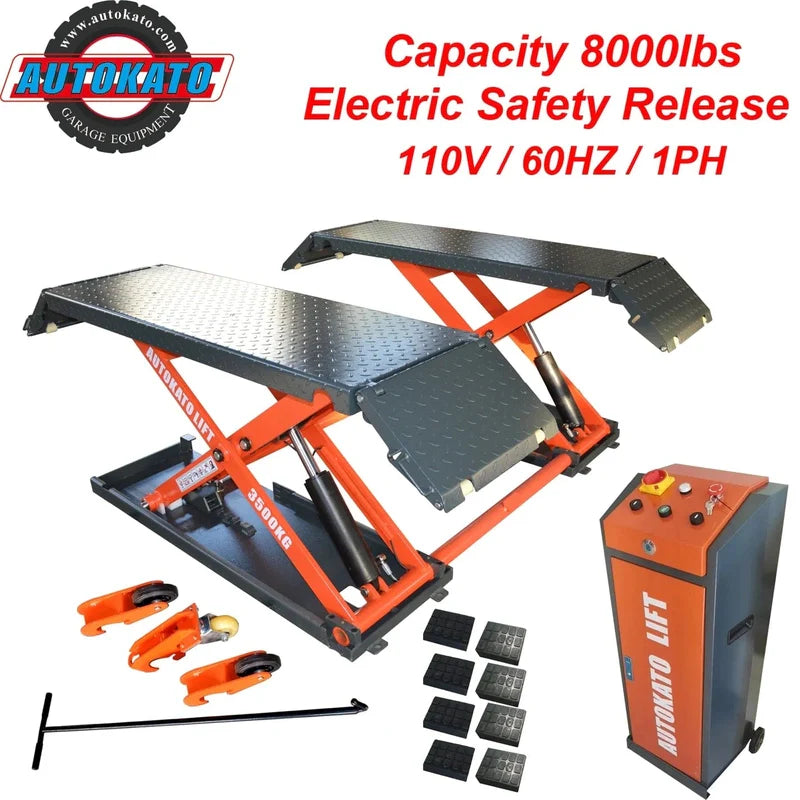

- 8000lbs(3500KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Mobile or fixed mount design
- Starting-up system design
- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing
- Drive up ramps lock design as platform extension for long vehicles

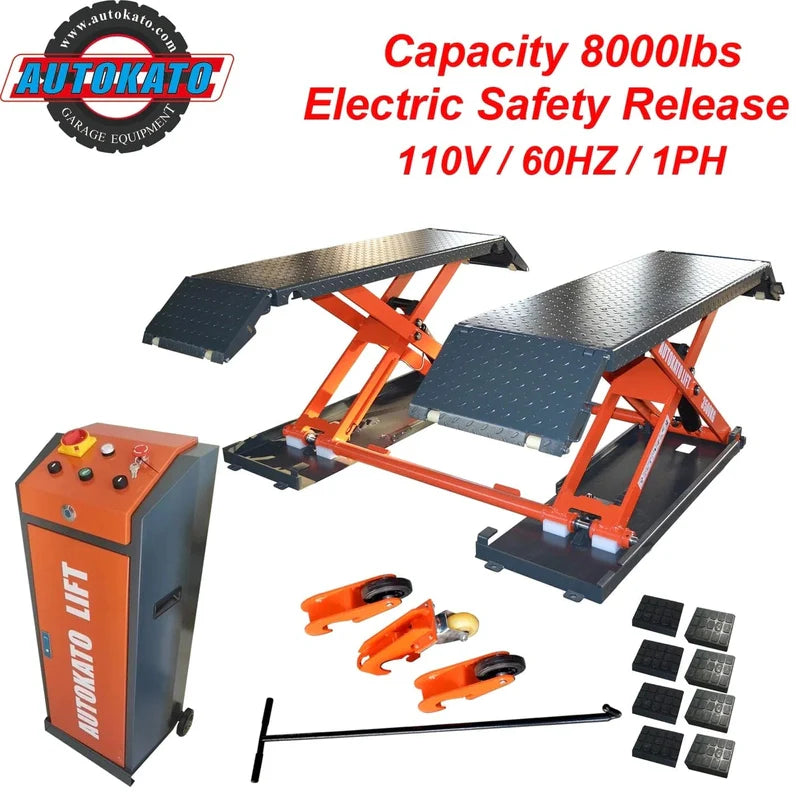

- Portable, mobile kit included to make the lift moves in your garage easily

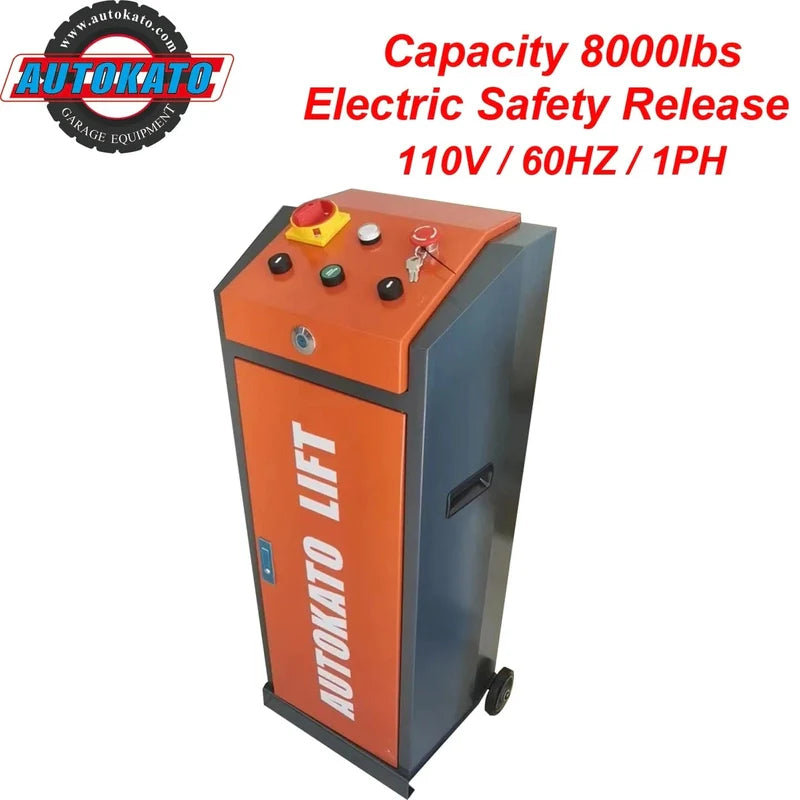

- Top level hydraulic system and aluminum motor with fan on top to avoid overheating caused by long time working with 110 (220V)V/ 60HZ/ 1PH
Specifications
| Lifting Capacity |
8000lbs.(3500KG) |
| Max. Lifting Height |
40.15"/1020mm |
| Min. Height |
4.25"/110mm |
| Platform Length |
57"/1450mm |
| Length Overall |
83.5"/2120mm |
| Platform Width |
20.5"/520mm |
| Width Overall |
76.75"/1950mm |
| Motor |
110 (220)VAC/60HZ/1PH |
| Net Weight |
1213lbs/550KG |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
