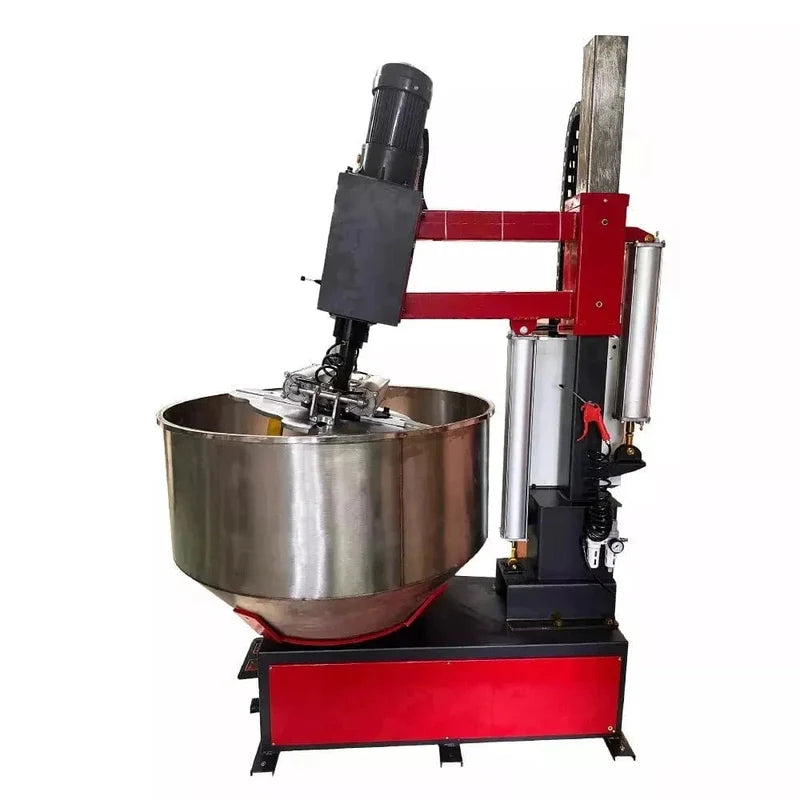

Product Overview

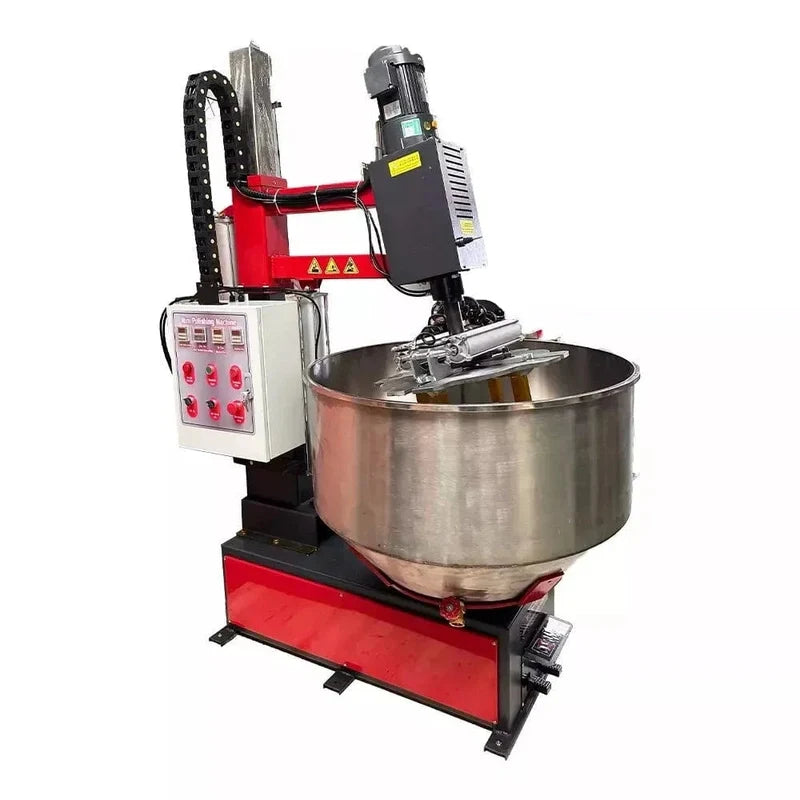

The Katool RPM-80 Rim Polishing Machine is designed for professional wheel cleaning, grinding, derusting, and repair. Engineered with a robust spindle and bucket motor system, it provides powerful rotation and consistent polishing results. This machine ensures that rims are restored to a like-new finish within a 6-minute cycle, making it ideal for automotive shops and detailing businesses.
Key Features
-
Professional Rim Polishing: Cleans, polishes, and restores rims with precision.
-
838 lb (380 kg) Feeding Bucket Capacity: Handles multiple wheels efficiently.
-
24” Maximum Rim Diameter: Compatible with a wide range of wheel sizes.
-

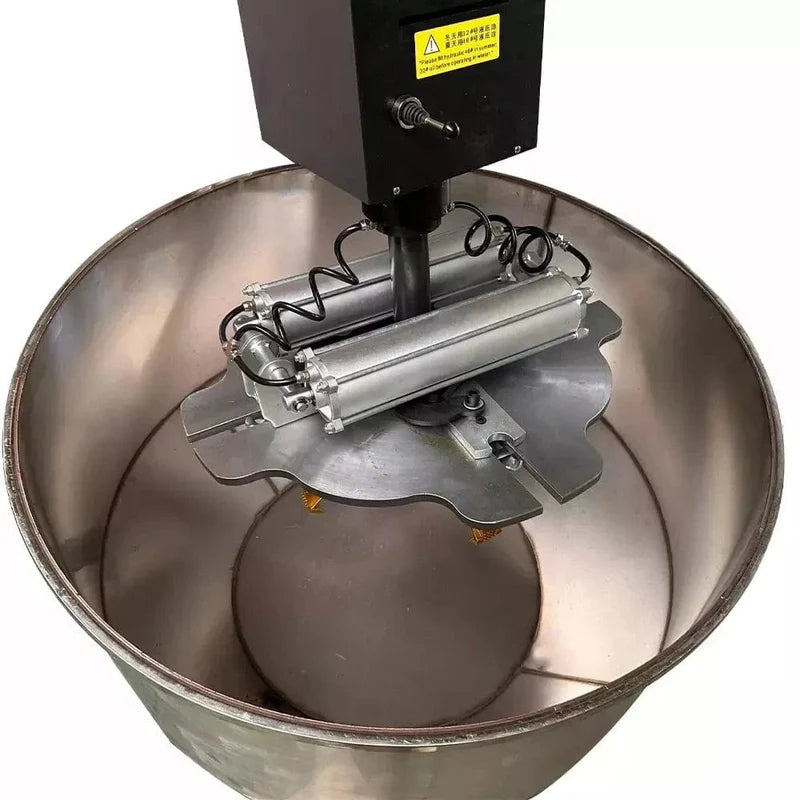

Dual Motor System: 1.5 kW spindle motor & 1.1 kW bucket motor for smooth operation.
-
Automatic Bidirectional Polishing: Clockwise and counterclockwise movement ensures even polishing.
-
High Working Pressure (8 MPa): Delivers strong grinding force for optimal results.
-
6-Minute Polishing Cycle: Fast and efficient cleaning process.
-
Durable Construction: Heavy-duty steel frame for long-term use.
Specifications
| Specification |
Value |
| Feeding Bucket Capacity |
838 lbs (380 kg) |
| Feeding Bucket Diameter |
38 inches |
| Maximum Rim Diameter |
24 inches |
| Spindle Motor Power |
1.5 kW |
| Bucket Motor Power |
1.1 kW |
| Maximum Working Pressure |
8 MPa |
| Net Weight |
772 lbs (350 kg) |
| Machine Dimensions |
44” × 63” × 79” |
Operating Instructions
-

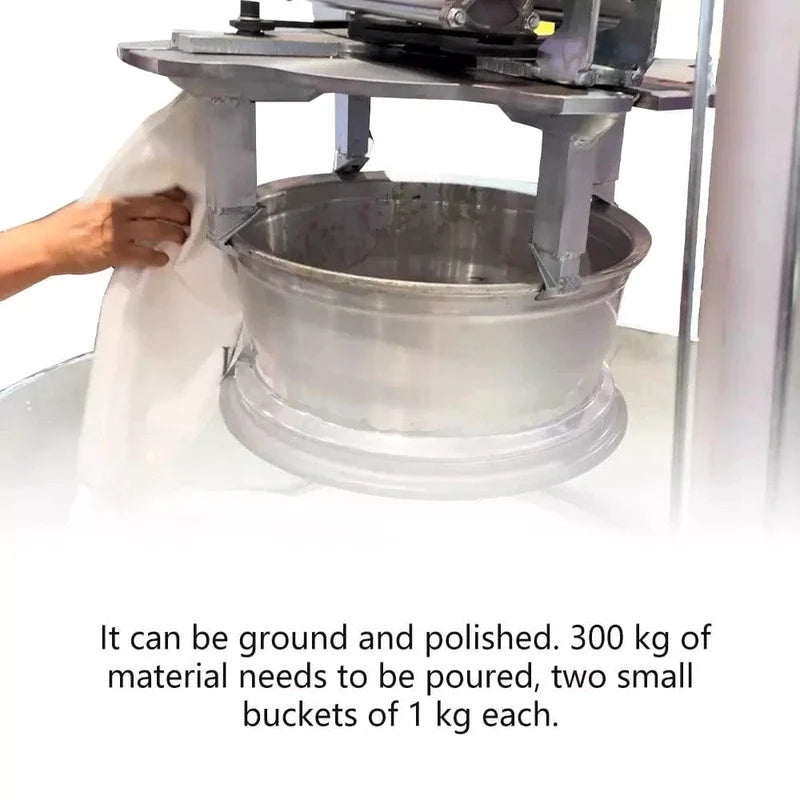

Material Preparation: Pour 300 kg of material, with two small buckets of 1 kg each.
-

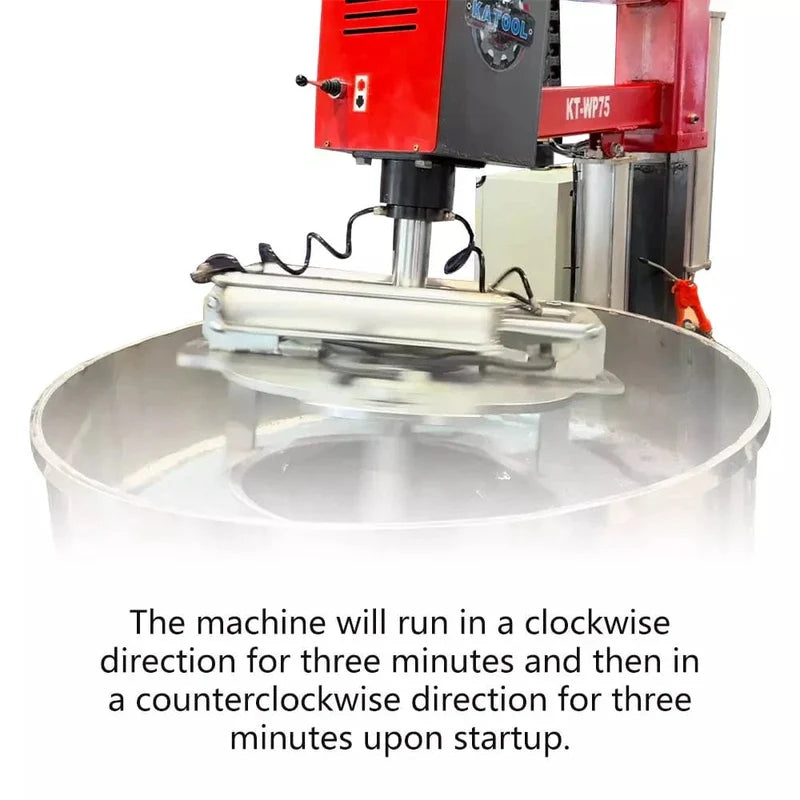

Machine Operation: Runs clockwise for 3 minutes, then counterclockwise for 3 minutes.
-
Final Polishing: Total cycle time is set to 6 minutes for a refreshed rim finish.
-
Safety Note: Only aluminum alloy wheels are allowed.
Warranty & Support
Katool provides a 1-year limited warranty covering parts and product defects. Additionally, an optional 2-year extended warranty is available for additional coverage.
Warranty Includes:
- Spindle motors, hydraulic components, and control panels.

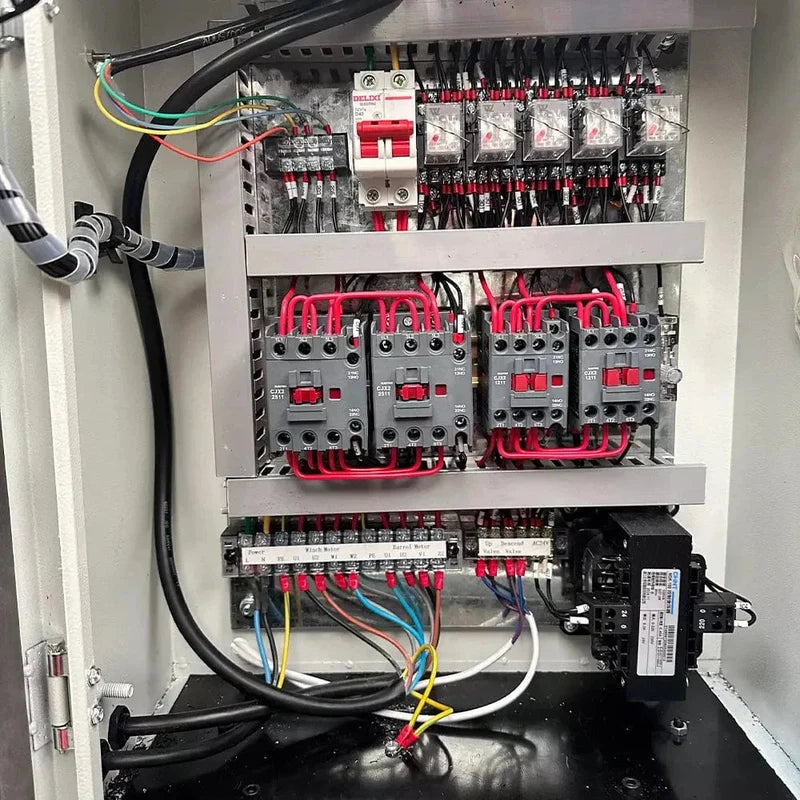

- Structural frame and electrical systems.
Warranty Conditions:
- Claims must be submitted within the warranty period.
- Warranty is non-transferable and requires proof of purchase.
- Replacement parts and shipping are covered at no cost.
- Labor costs are not included.
- Do not disassemble the equipment before warranty approval.
