Description

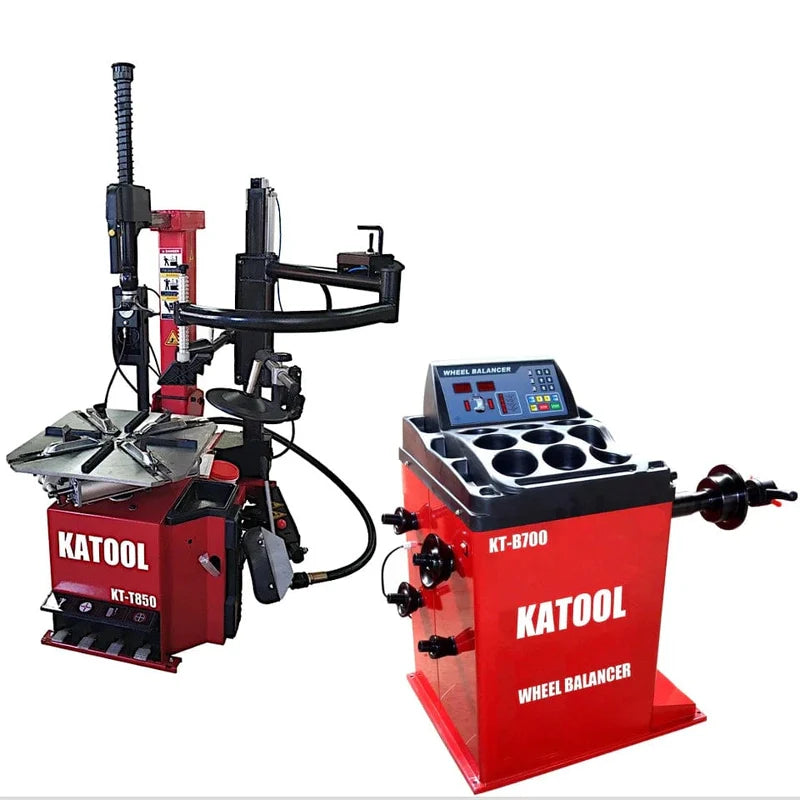

Experience professional tire service with the Katool Tire Changer KT-T850 & Wheel Balancer KT-B700 Combo. The KT-T850 Tilt-Arm Wheel Clamp Tire Changer features an alloy steel jaw with carburization treatment for increased strength. The stainless mounting head, equipped with a plastic cover, ensures protection for the rim. The pull-type pedal control system, top-level motor, and pure copper winding provide enhanced power, faster heat dissipation, and a longer service life. The pneumatic system is safeguarded by a high-quality lubricator and effective air filtration. For North America, it supports a 110V/1ph/2.0HP motor, offering optimal efficiency. The inclusion of assist arms, a bead blast seater, and a 200mm aluminum bead breaker cylinder adds to its versatility. The KT-B700 Wheel Balancer, with its 3mm-thick steel body, all-in-one pressure sensor support, and top-level motor, ensures stability and precision. The quenched 36mm shaft thread provides high strength. Its advanced computer board, various balance modes, built-in fault diagnosis, and self-calibration program make it user-friendly. With unit selection options, high-quality integration power board, and compatibility with optional features like a wheel guard and longer shaft for wider wheels, this combo delivers efficient and reliable tire maintenance.
Features

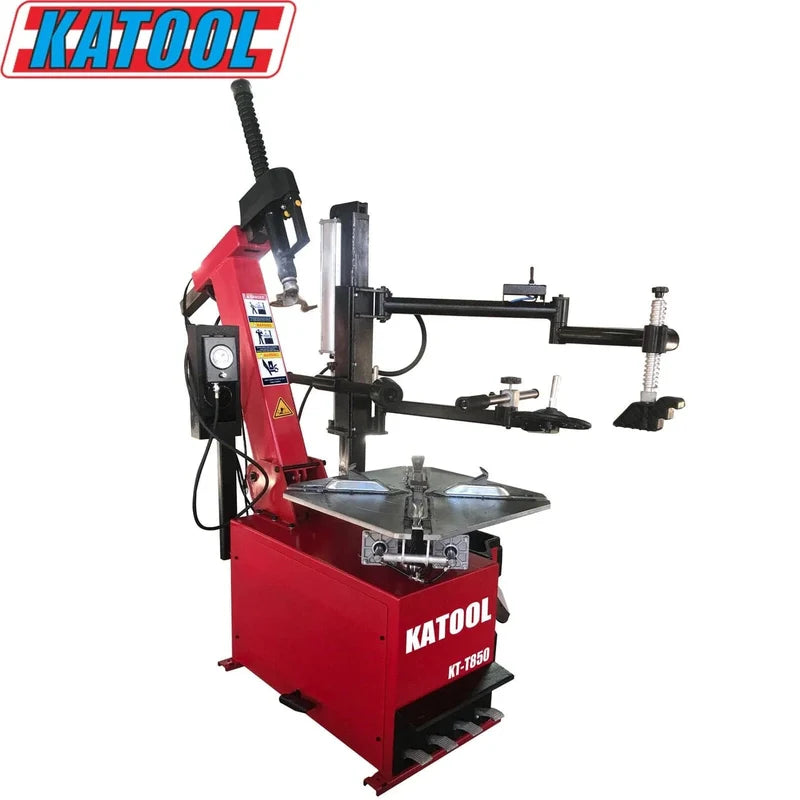

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- The high-quality spade cover effectively prevents the rim from being damaged
- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended

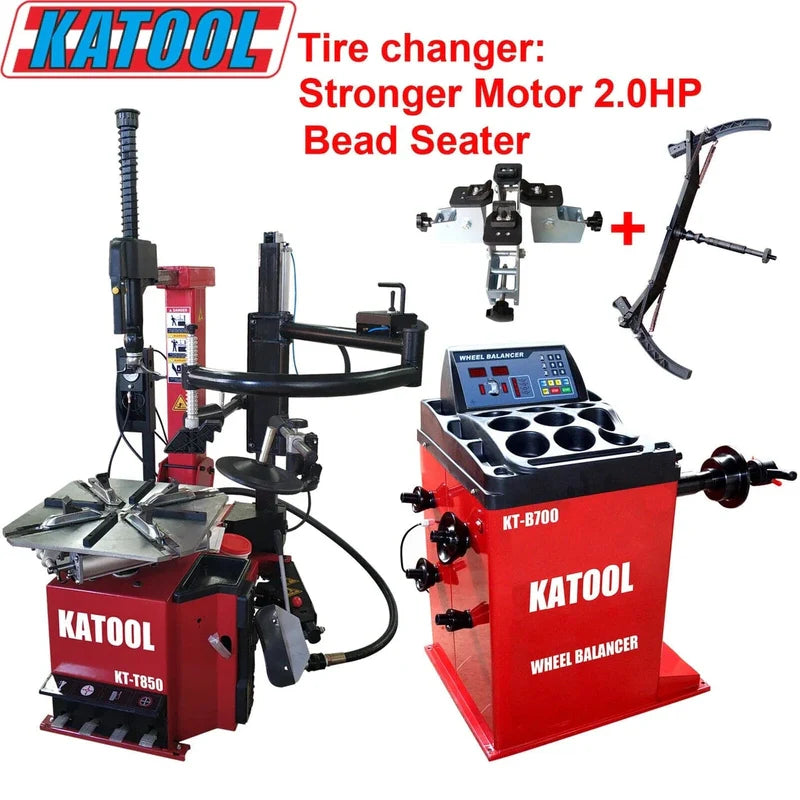

- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

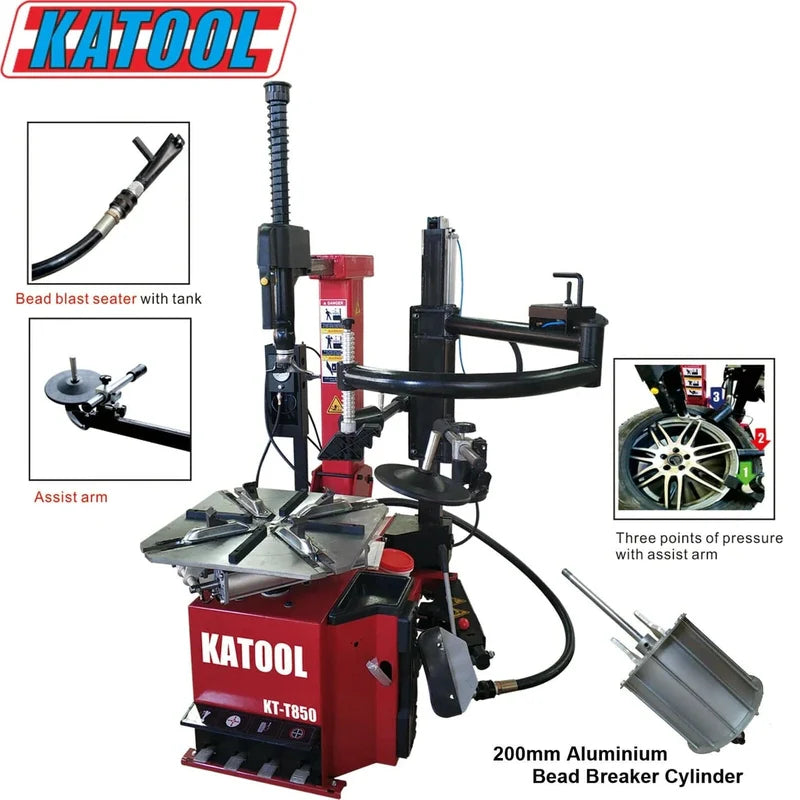

- Equipped with assist arms
- 200mm aluminum bead breaker cylinder

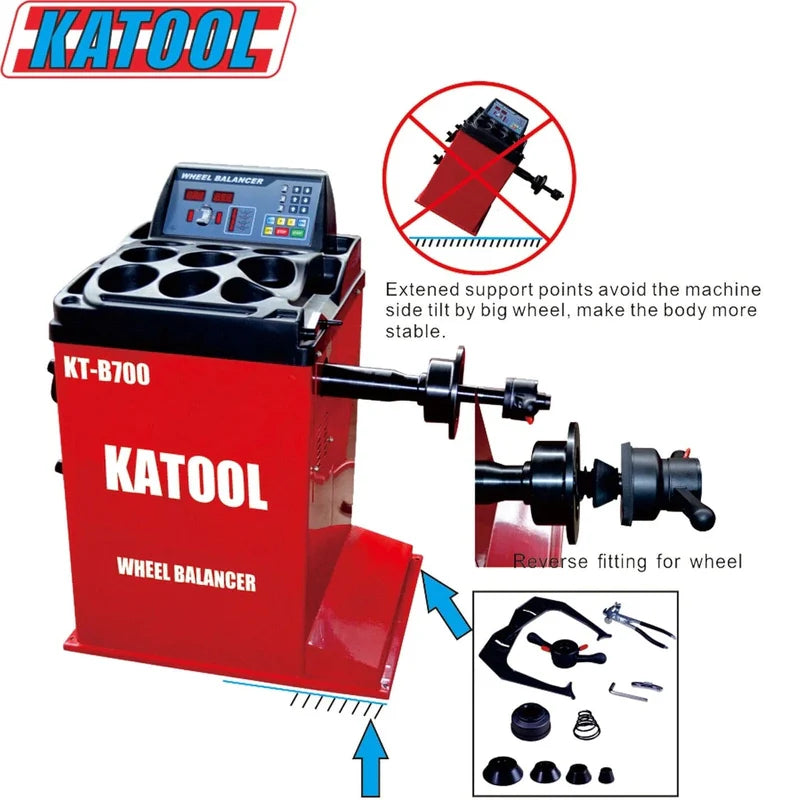

KT-B700 Wheel Balancer

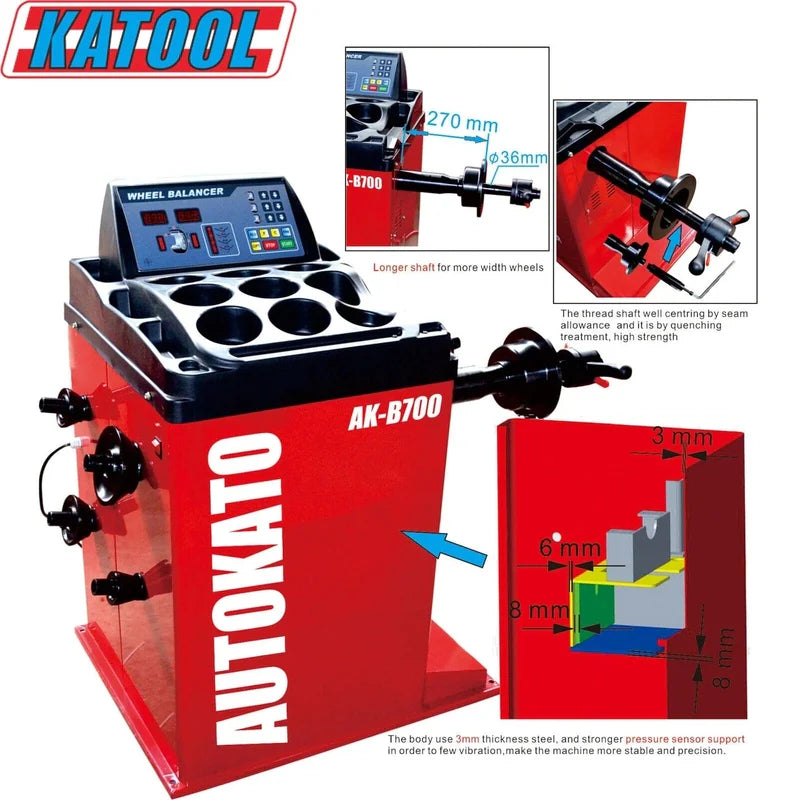

- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

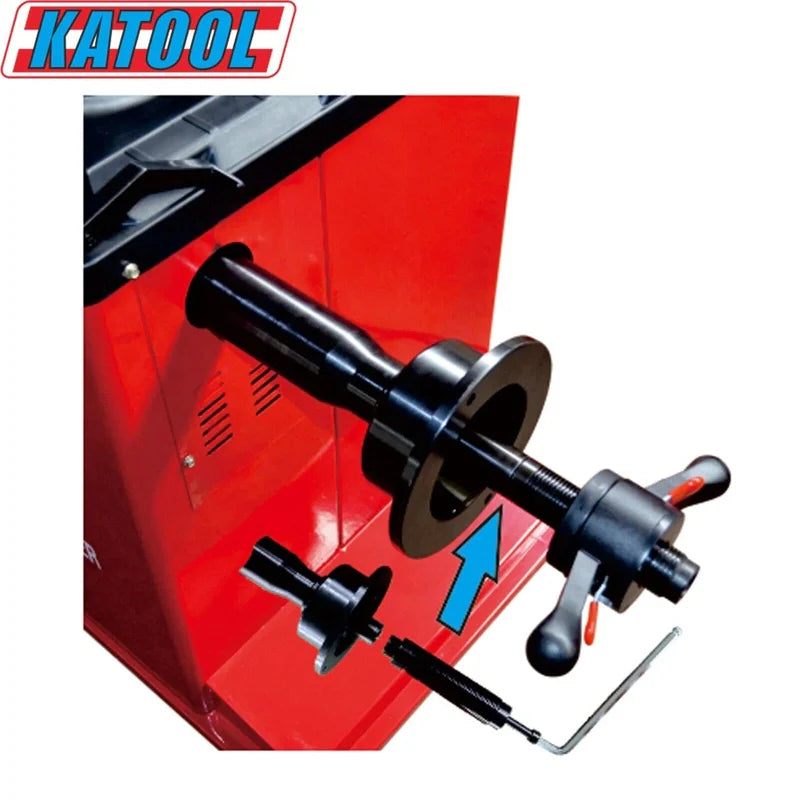

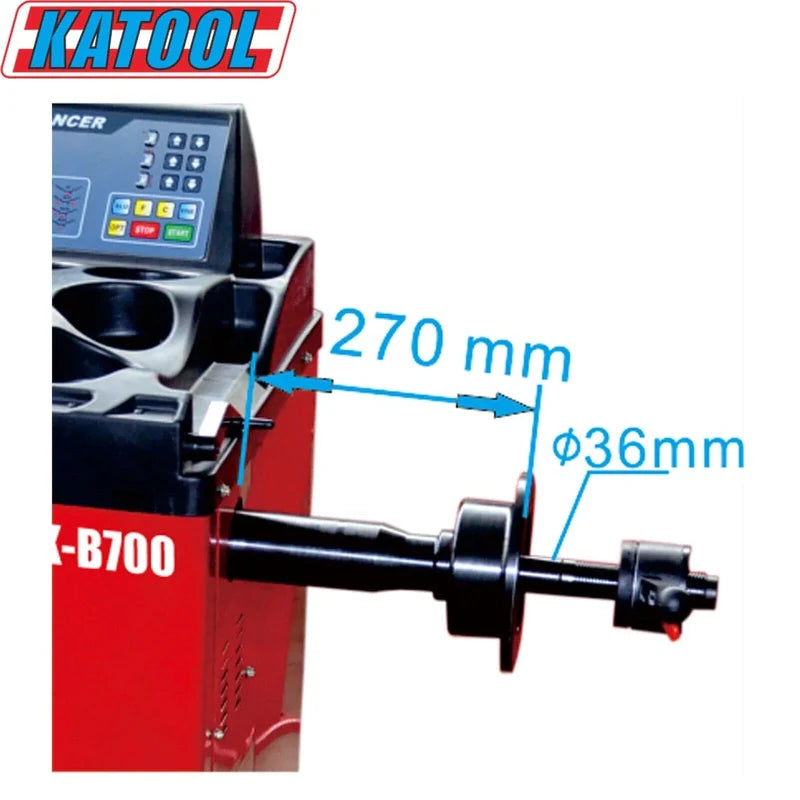

- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable

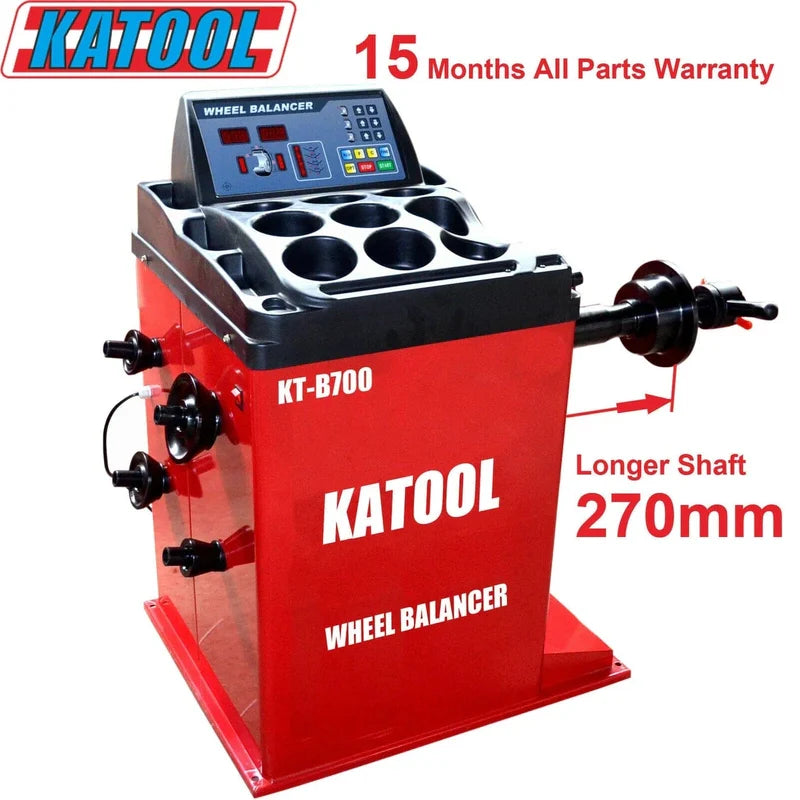

- Longer shaft also compatible with wider wheels
Specifications
KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine
| Max Wheel Diameter: |
47"/1200mm |
| Max Wheel Width: |
15"/380mm |
| Outside Clamp: |
14"-26" |
| Inside Clamp: |
16"-28" |
| Power Supply: |
110V 1PH |
| Motor Power: |
2.0HP/1.5KW |
| Rotation Speed: |
6.8r/min |
| Air Pressure: |
0.8-1.0Mpa(116-145psi) |
| Net weight: |
340KG / 750lbs |
KT-B700 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
120V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
