Description

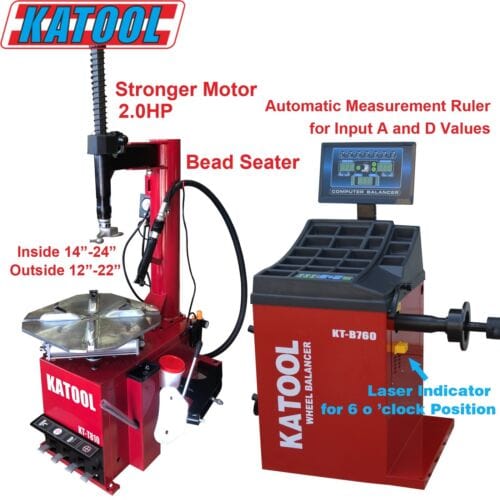

Maximize tire service efficiency with the Katool Tire Changer KT810 & Wheel Balancer KT-B760 Combo. The KT-T810 Wheel Clamp Tire Changer features an alloy steel jaw with carburization treatment, a stainless mounting head, and a pull-type pedal control system for convenience. Its top-level motor with a 120V/1ph/2.0HP power supports North America's strong power requirements. With a closed body design, it ensures protection for internal parts. The KT-B760 Wheel Balancer offers automatic measurement, 3mm-thick steel body, and various balance modes. Equipped with a fault diagnosis system, it provides a precise and reliable tire balancing solution. Optional features include a wheel guard and a longer shaft for wider wheels.
Features

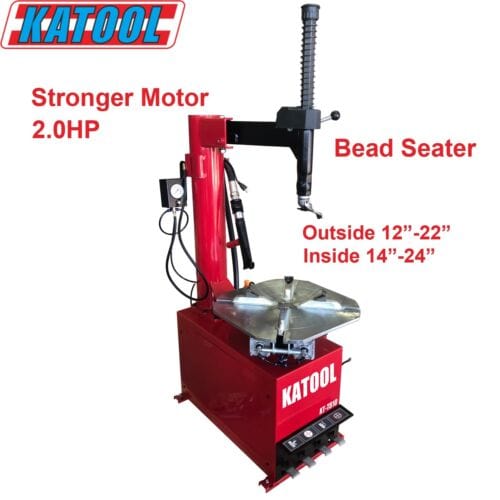

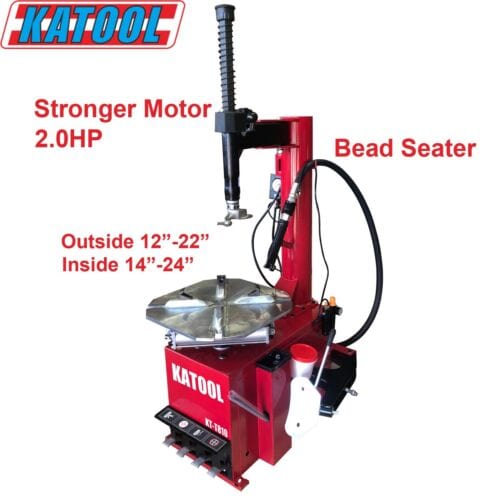

KT-T810 Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 120V/1ph/2.0HP motor, more strong power and high efficiency working
- Closed body for protect inside parts well
KT-B760 Wheel Balancer

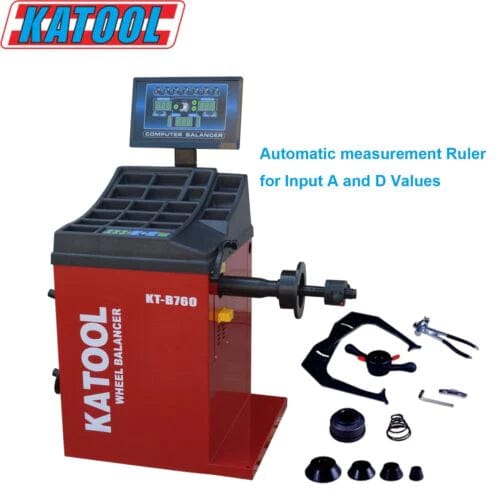

- Automatic measurement ruler for auto input A and D values
- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Longer shaft, also compatible with wider wheels
Specifications

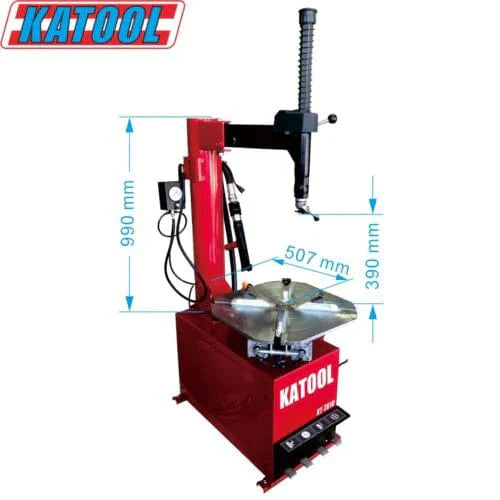

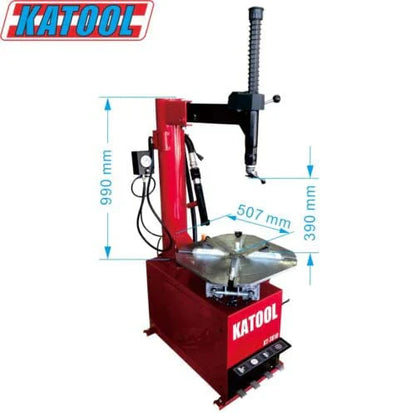

KT-T810 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41"/1040mm
|
|
Max Wheel Width :
|
15"/380mm
|
|
Outside Clamp:
|
12"-22" |
|
Inside Clamp :
|
14"-24" |
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.8r/min |
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi) |
|
Net weight :
|
186KG |
KT-B760 Wheel Balancer
|
Rim Diameter:
|
<30"
|
|
Wheel Width:
|
3"-12"
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
1g
|
|
Measuring Time:
|
7S
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
